Magcubic HY300Pro
| Brand | Magcubic · HY300 series |
| Type | Portable |
| Resolution | 720p |
| Imaging technology | Single-panel LCD |
| Light source type | LED |
| ANSI lumens | 200 lm |
| Throw ratio | 0.8:1 |

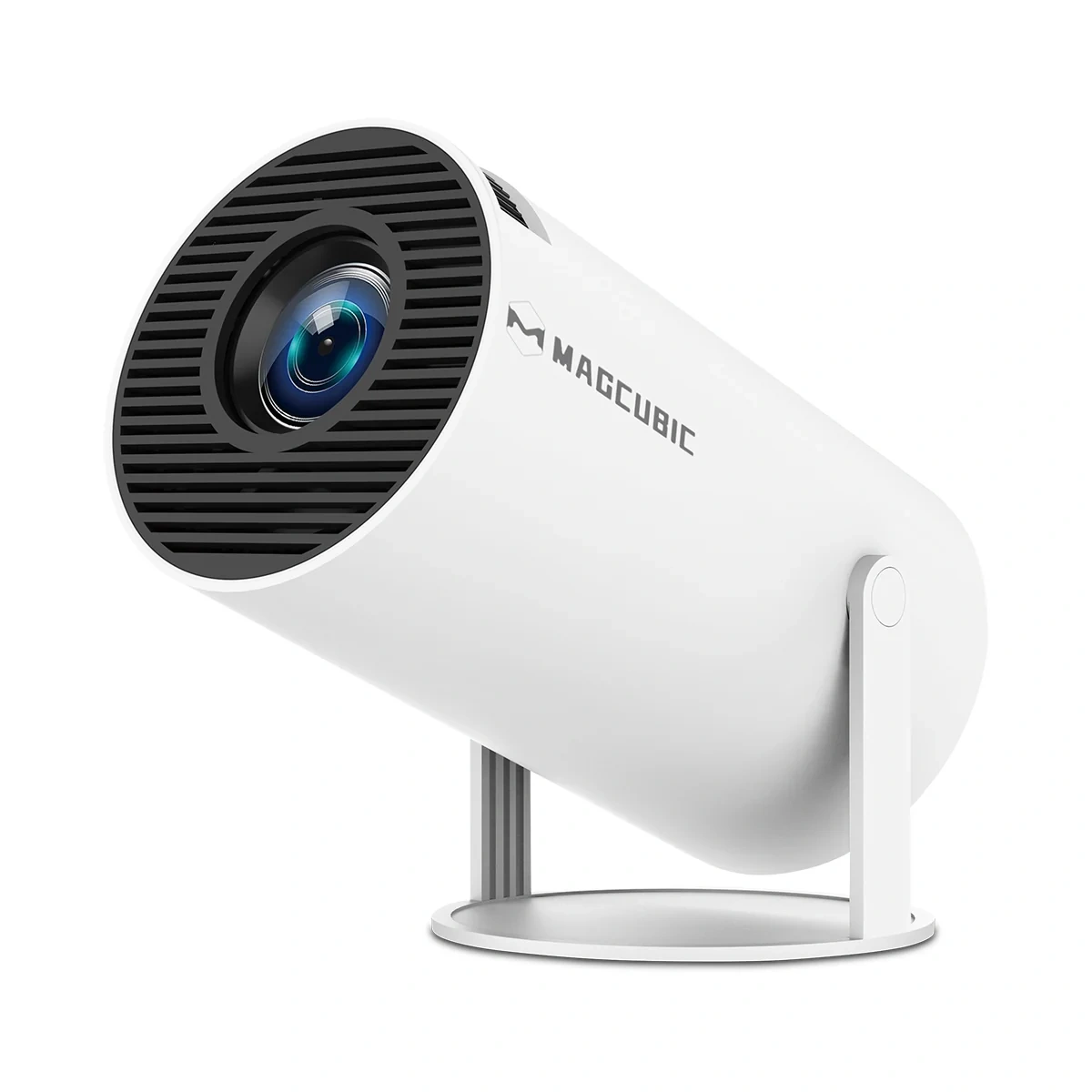

A small cylindrical LCD projector with a native 1280x720 panel, a claimed 200 ANSI lumens from an LED light source, and an Android 14 smart system on an Allwinner H726. It has Wi-Fi 6, Bluetooth 5.4, a single 5 W speaker and automatic vertical keystone, and suits casual viewing in dim rooms.
Data sheet
| Imaging technology | Single-panel LCD | |
| Native aspect ratio | 16:9 | |
| Native resolution | 1280 × 720 | |
| Dynamic contrast | 8,000:1 |
Optics
| Throw ratio | 0.8:1 | |
| Projection distance table | 35″: 0.75 m · 135″: 2.65 m | |
| Focus | Manual | |
| Image size range | 35–135 in |
Light source
| Light source type | LED | |
| Light source life | Rated: 30,000 h | |
| Life definition | Unspecified | |
| ANSI lumens | 200 lm ANSI | ANSI |
| Brightness uniformity (centre-to-corner) | 75% |
Audio
Inputs, control & connectivity
| HDMI port count | 1 | |
| Wi-Fi | Wi-Fi 6 | |
| Bluetooth version | 5.4 | |
| Auto keystone | Yes |
Firmware / software
| Smart OS | Android (uncertified) | |
| OS version | 14 | |
| RAM | 1 GB | |
| Storage | 8 GB | |
| SoC | Allwinner H726 |
Environment & power
| Operating orientations | Table, Ceiling, Rear | |
| Power consumption (max) | 38 W | |
| Standby power | 0.3 W | |
| Power supply | External brick |
Physical & installation
| Weight | 0.35 kg | |
| Colours / finishes | White, Grey |
Support & ownership
| Warranty | 🇼🇼 WW 1 yr | |
| Safety & market certifications | CE |
In the box
| Box contents | User manual, Power adapter, Remote | |
| Remote type | IR |
Tools
- Throw calculator — How far from the screen the HY300Pro needs to sit for a given image size, set to its 0.8:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| White, US | 🇺🇸 US | ASIN | B0F53F8DB3 |
| MPN | HY300Pro/W/MG-US | ||
| White, EU | 🇪🇺 EU | MPN | HY300Pro/W/MG-EU |
| White, UK | 🇬🇧 GB | MPN | HY300Pro/W/MG-UK |
| White, AU | 🇦🇺 AU | MPN | HY300Pro/W/MG-AU |
| Grey, US | 🇺🇸 US | MPN | HY300Pro/G/MG-US |
| Grey, EU | 🇪🇺 EU | MPN | HY300Pro/G/MG-EU |
| Grey, UK | 🇬🇧 GB | MPN | HY300Pro/G/MG-UK |
| Grey, AU | 🇦🇺 AU | MPN | HY300Pro/G/MG-AU |
| All variants | All regions | Model number | HY300Pro |
