InFocus IN5009
| Brand | InFocus · Quantum Laser |
| Type | Installation |
| Released | October 2025 |
| Resolution | WUXGA |
| Imaging technology | 3LCD |
| Light source | Laser (phosphor) |
| Claimed brightness (non-standard) | 10,000 lm |
| Native contrast (on/off) | 2,000:1 |
| Throw ratio | 0.79–7.02:1 |

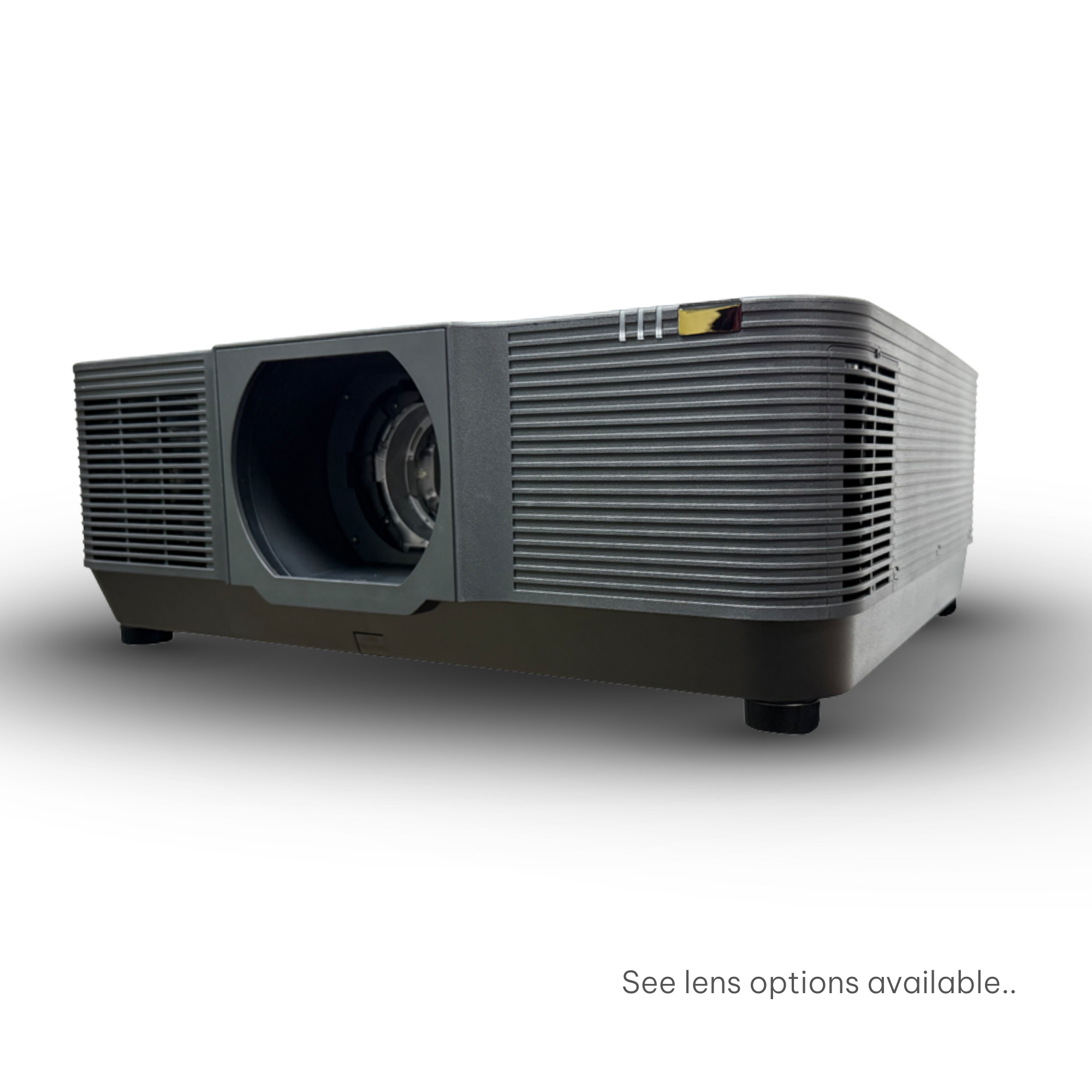

A lens-less 3LCD laser installation projector with three 0.76-inch panels and 1920x1200 resolution, rated at 10,000 lumens by the maker. It takes four optional lenses with motorized or manual zoom, and suits large rooms, auditoriums and higher education.
Data sheet
| Claimed brightness (non-standard) | 10,000 lm | |
| Brightness uniformity | 80% | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.76 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Native contrast (on/off) | 2,000:1 | |
| Dynamic contrast | 100,000:1 |
Light source
| Light source | Laser (phosphor) | |
| Emitter | Blue laser + phosphor | |
| Light engine | Quantum Laser | |
| Laser wavelengths | B 455 nm | |
| Light-source life | Up to 20,000 h max |
Optics
| Throw ratio | 0.79–7.02:1100″ · 1.70–15.1 m | |
| Vertical lens shift | -10–50% | |
| Horizontal lens shift | ±20% | |
| Vertical keystone | 30° | |
| Horizontal keystone | 30° | |
| Corner correction | 8-point | |
| Interchangeable lens | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI 1.4 | |
| Other video inputs | VGA, HDBaseT | |
| Max input resolution | 4K UHD | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232 | |
| Control-system drivers | Crestron |
Smart platform
| Ethernet | Yes |
Physical & installation
| Dimensions (W × D × H) | 600 × 503 × 218 mm | |
| Weight | 24,000 g | |
| Orientations | 360° |
Environment & power
| Operating temperature | 5–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 3,000 m | |
| Power draw | Max 750 W · Eco 650 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 35 dB(A) · Eco 32 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG3 | |
| Marks | CE, FCC, CCC | |
| User manual | cdn.infocus.com |
In the box
| In the box | Remote, HDMI cable |
