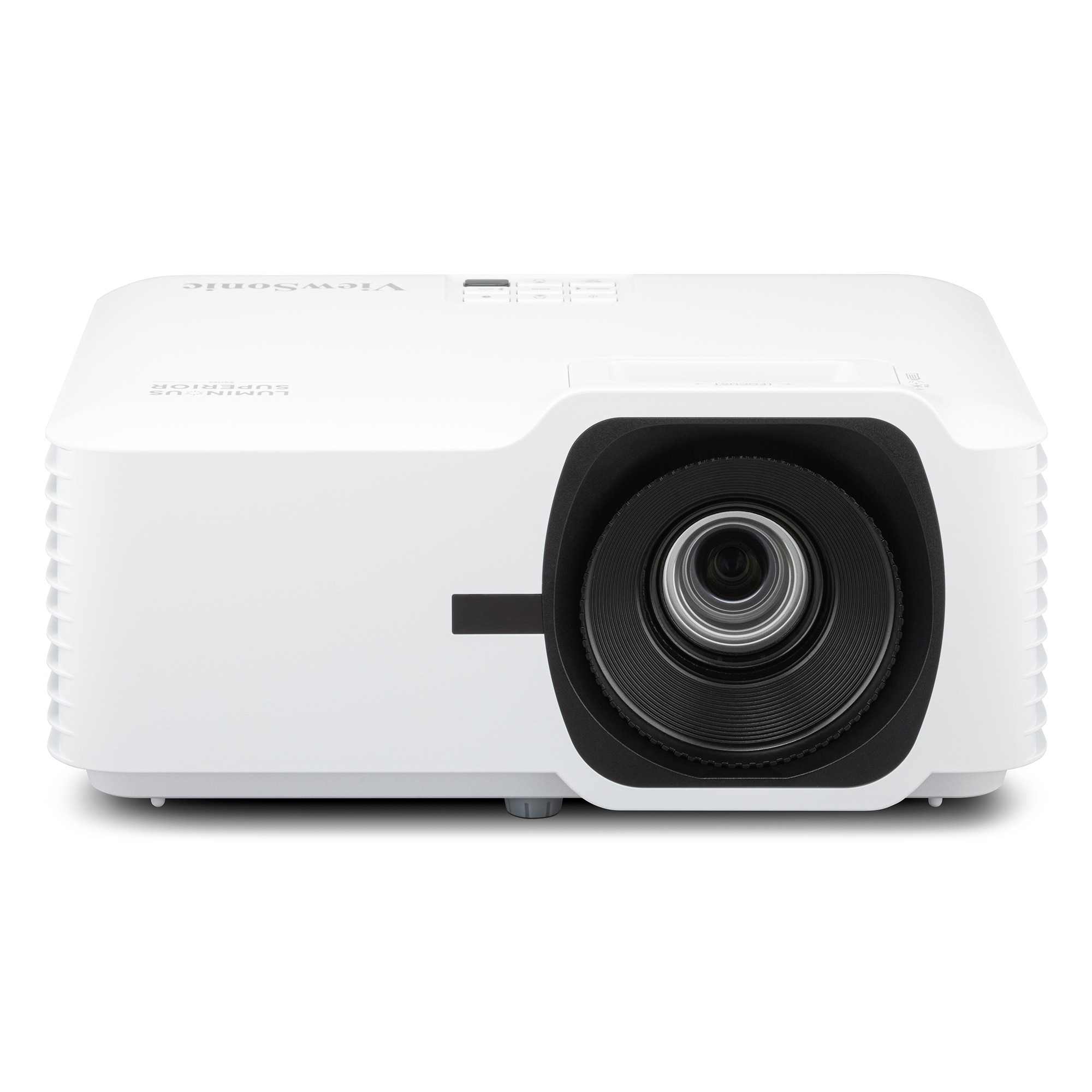

ViewSonic LS630W

Brand	ViewSonic
Type	Education
Released	March 2025
Resolution	WXGA
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	4,500 lm ANSI
Throw ratio	1.18–1.54:1

A single-chip DLP laser projector for classrooms and meeting rooms, rated at 4,500 ANSI lumens with a 1280x800 (WXGA, 16:10) image. It has a 1.3x manual optical zoom with a 1.18 to 1.54 throw ratio and no lens shift, two HDMI 1.4 inputs, LAN and RS-232 control, and a 15 W mono speaker.

Data sheet


White light output	4,500 lm ANSI
Imaging technology	DLP
Native resolution	WXGA (1280 × 800)
Native aspect	16:10Derived
Dynamic contrast	3,000,000:1
Colour bit depth (per channel)	10 bit
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses sync	DLP-Link

Light source

Light source	Laser (phosphor)
Emitter	Blue laser + phosphor
Light-source life	20,000 h normal · 30,000 h dynamic

Optics

Throw ratio	1.18–1.54:1100″ · 2.54–3.32 m
Image size	30–300 in
Zoom	Optical
Zoom ratio	1.31×Derived
Focus	Manual
Vertical lens shift	None
Horizontal lens shift	None
Vertical keystone	30°
Horizontal keystone	30°
Corner correction	4-corner
Interchangeable lens	No

Motion & gaming

Max input refresh

720p: 120 Hz

Inputs & control

HDMI inputs	2 × HDMI 1.4 (HDCP 1.4)
Max input resolution	WUXGA
Control ports	RS-232
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	15 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	286 × 216 × 129 mm
Weight	3,100 g
Orientations	Table, Ceiling, Rear
Ceiling mount	M4, screws ≤ 8 mm

Environment & power

Operating temperature	0–40°C
Operating humidity	10–80%RH
Altitude	3,658 m · high-altitude mode
Power draw	175 W
Standby	Up to 0.5 W
Power supply	External adapter
Mains input	100–240 V · 50/60 Hz

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57
Marks	FCC
Warranty	🇺🇸 US 3 yr
User manual	viewsonicglobal.com

In the box

In the box	Power cord, Power adapter, Remote, Remote batteries, Quick start guide
Remote	IR
