Emotn A1
| Brand | Dangbei · Emotn |
| Type | Pico |
| Status | Discontinued |
| Released | September 2022 |
| Resolution | 720p |
| Imaging technology | Single-panel LCD |
| Light source | LED |
| Brightness | 150 lm ANSI |
| Throw ratio | 1.22:1 |

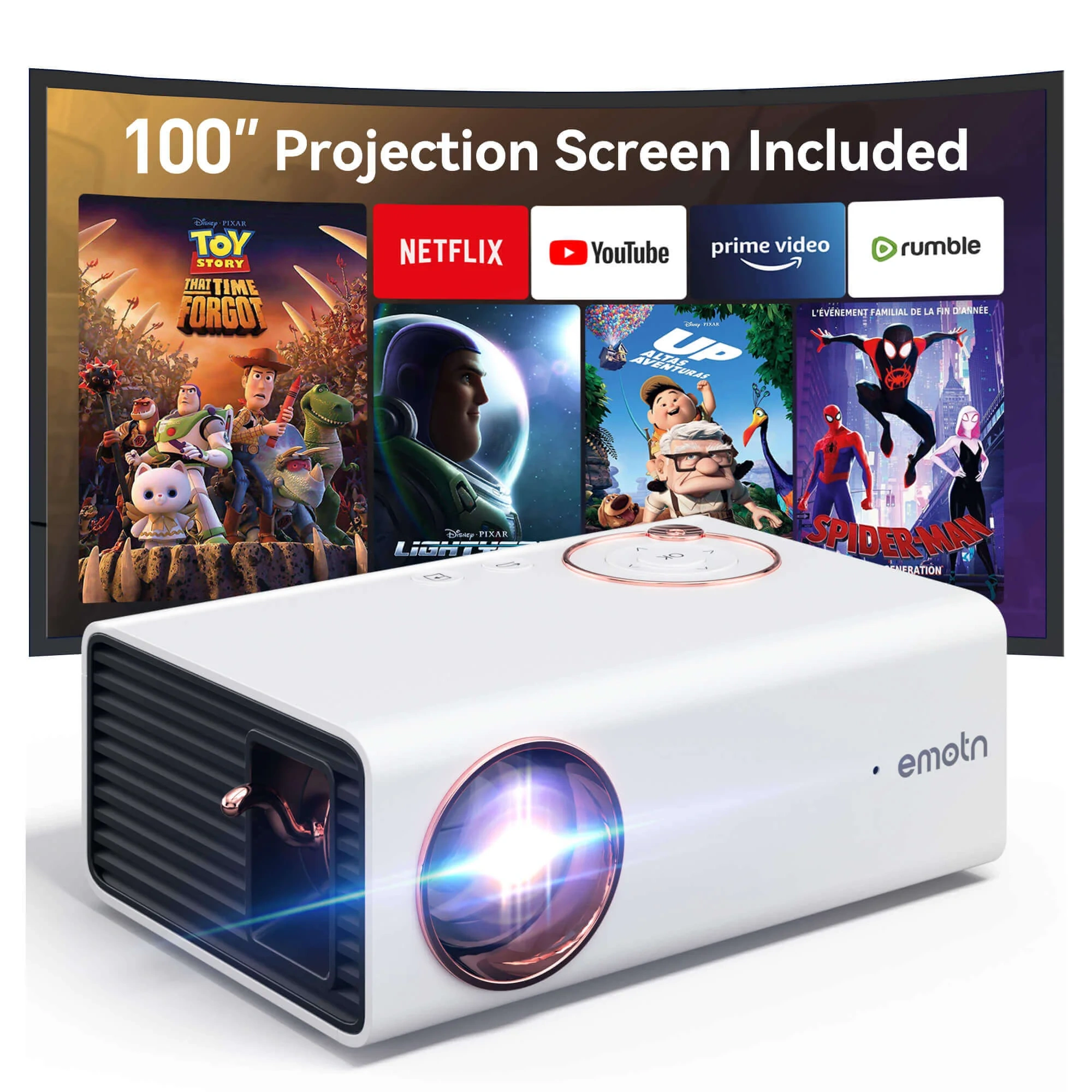

A small single-panel LCD projector with a fixed manual-focus lens, rated at 150 ANSI lumens, sold under Dangbei's Emotn sub-brand. It has HDMI, USB and AV inputs, a 5 W speaker and can run from a USB-C power bank. Dangbei's store shows it as sold out and ProjectorCentral lists it as discontinued.
Data sheet
| White light output | 150 lm ANSI | |
| Imaging technology | Single-panel LCD | |
| Native resolution | 720p (1280 × 720) | |
| Native aspect | 16:9Derived | |
| Dynamic contrast | 1,000:1 | |
| Colour bit depth (per channel) | 8 bit |
Light source
| Light source | LED | |
| Light-source life | 50,000 h |
Optics
| Throw ratio | 1.22:1100″ · 2.70 mDerived | |
| Image size | 50–120 in | |
| Zoom | None | |
| Focus | Manual |
Inputs & control
| HDMI inputs | HDMI 1.4 | |
| Max input resolution | 1080p |
Audio
| Speaker power | 5 W | |
| Speakers | 1 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 170 × 114 × 63.5 mm |
Environment & power
| DC input | 20 V | |
| Fan noise | Up to 28 dB(A) |
Safety & support
| Warranty | 🇺🇸 US 1 yr |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

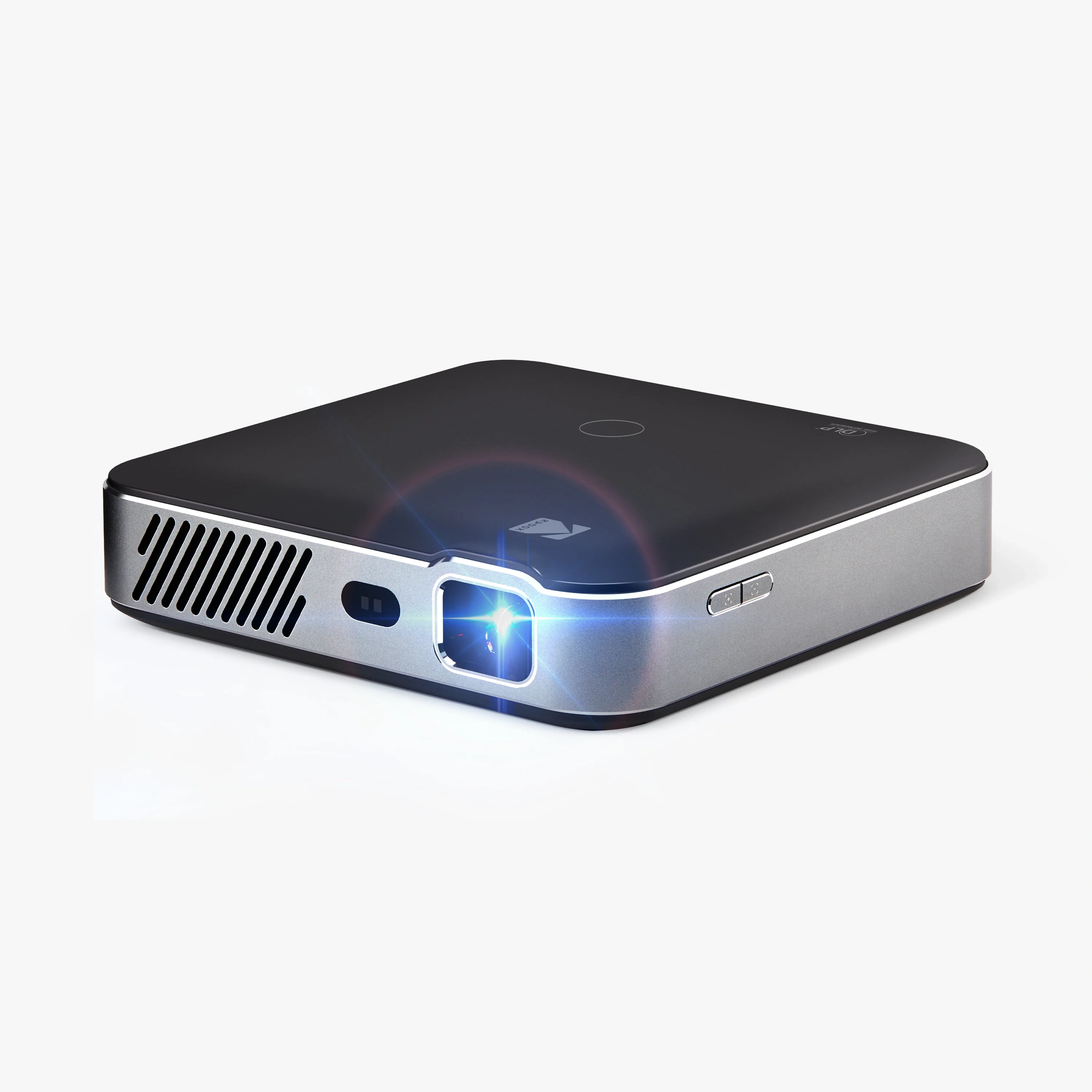

KODAK Luma 500 1080p · DLP | 1080p | DLP | 160 +10 | $643.99 +$555 | Compare |

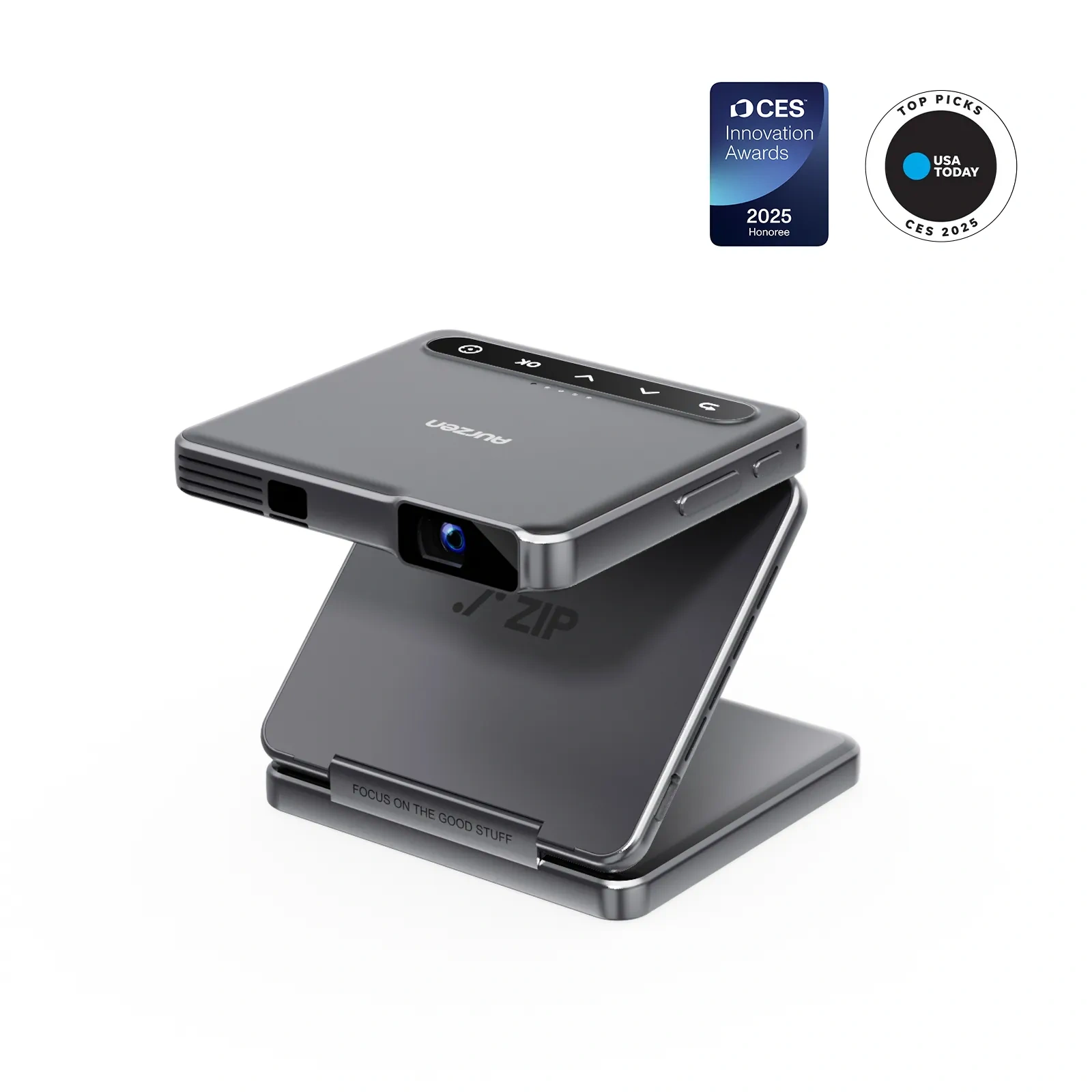

Aurzen ZIP 720p · DLP | 720p | DLP | 100 −50 | $399.99 +$311 | Compare |

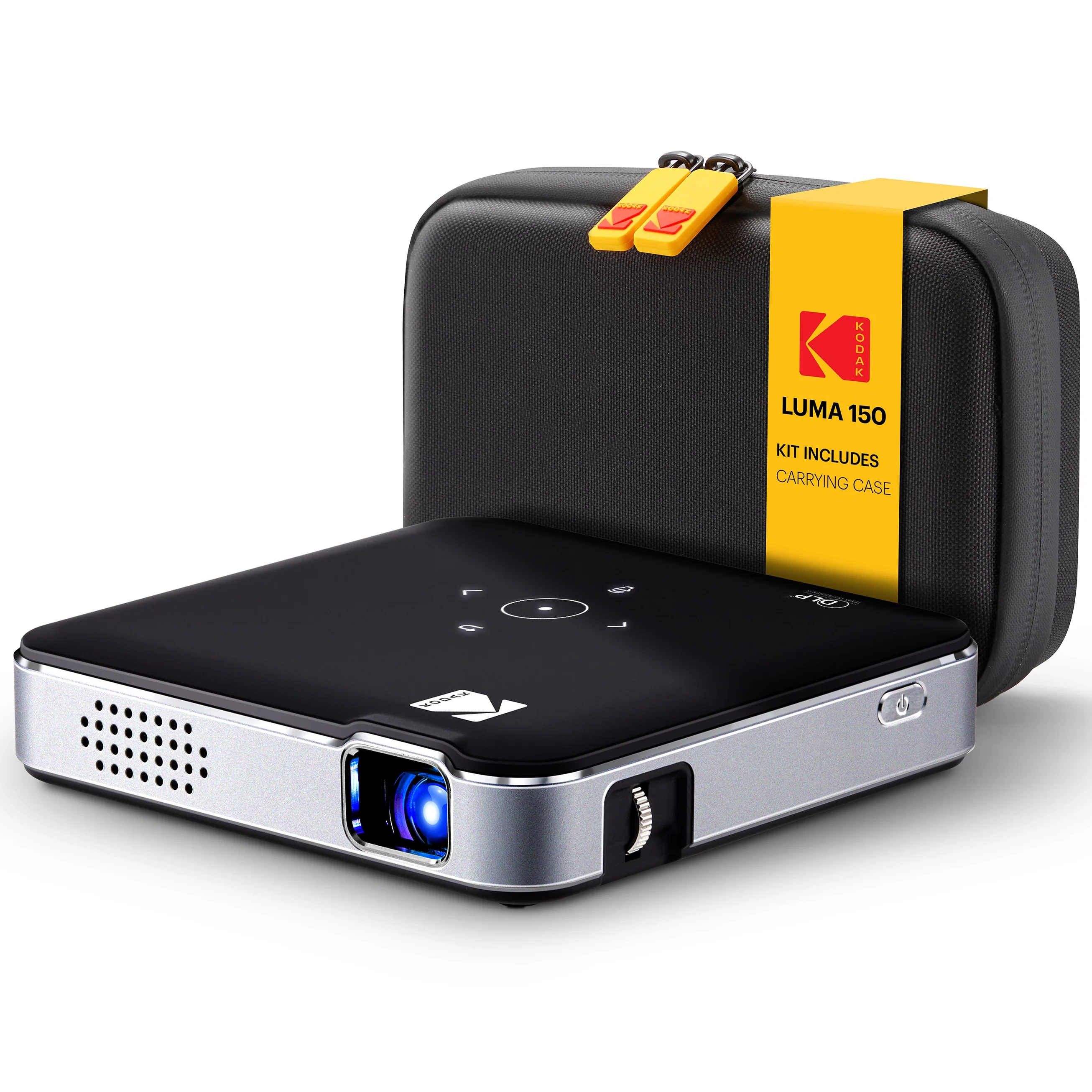

KODAK Luma 150 640 × 360 · DLP | 640 × 360 | DLP | 55 −95 | $239.99 +$151 | Compare |
AKASO WT50 480p · DLP | 480p | DLP | 50 −100 | $269.99 +$181 | Compare |

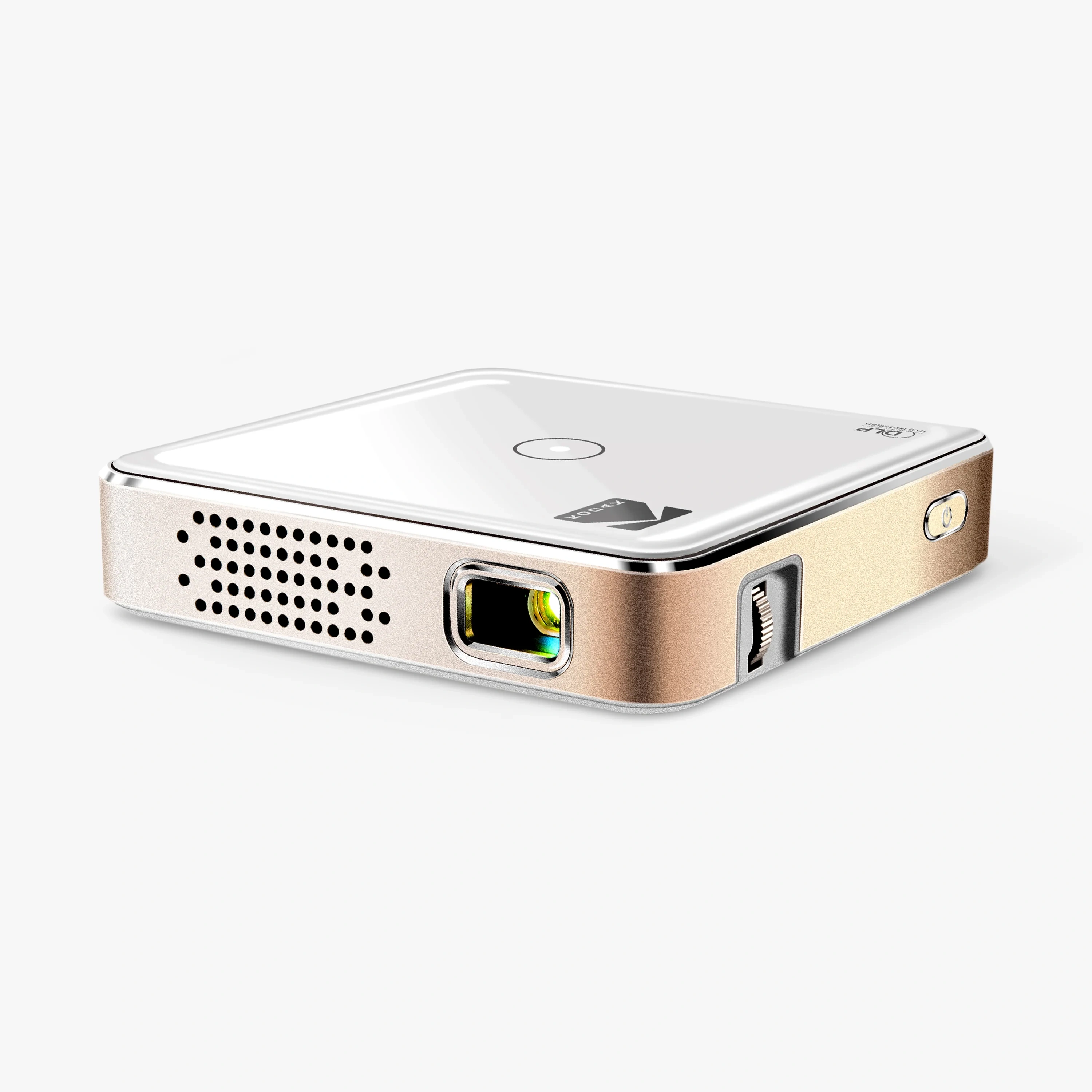

KODAK Luma 75 640 × 360 · DLP | 640 × 360 | DLP | 35 −115 | $199.99 +$111 | Compare |

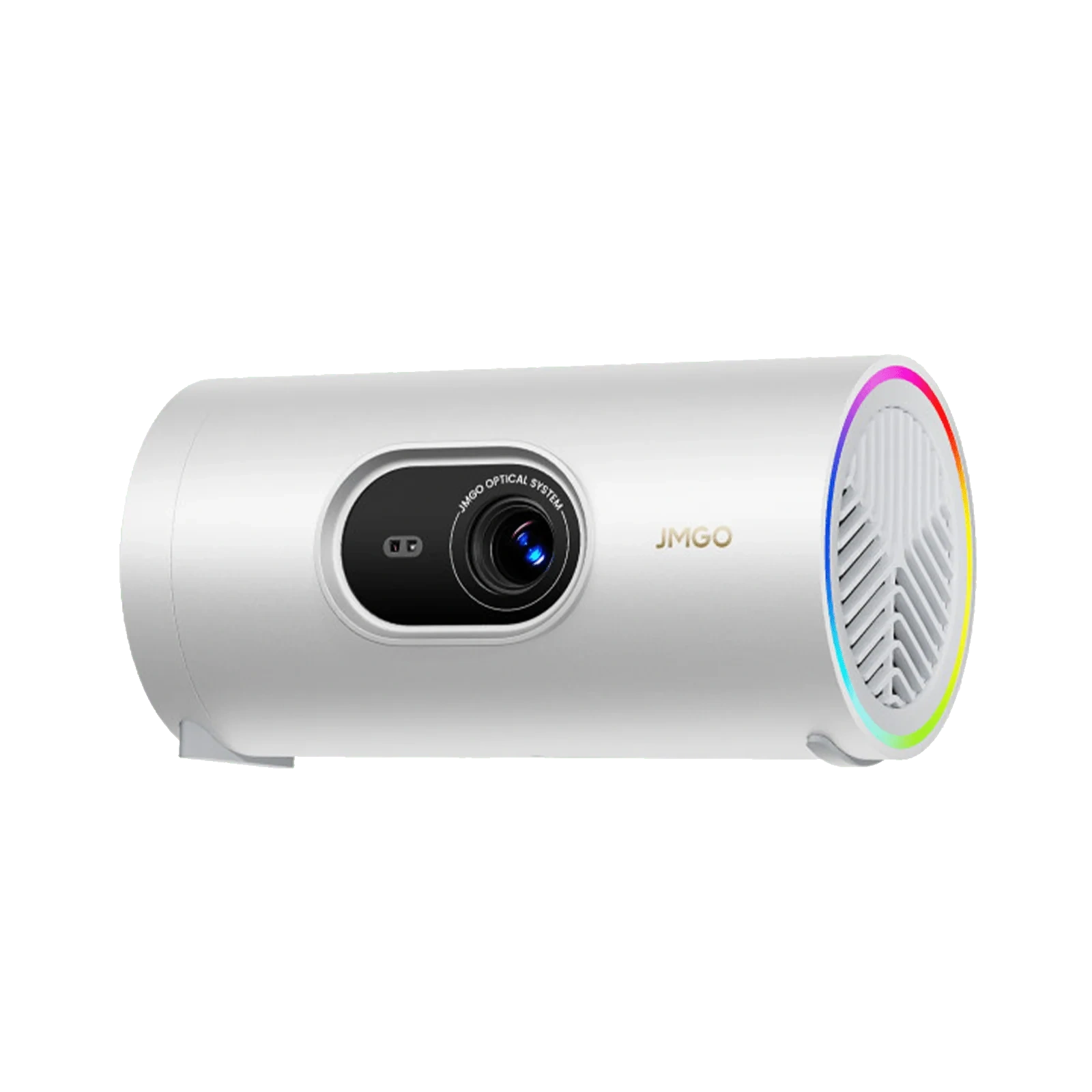

JMGO PicoPlay 1080p · DLP | 1080p | DLP | 400 +250 | $211.99 +$123 | Compare |
Other
Tools
- Throw calculator — How far from the screen the Emotn A1 needs to sit for a given image size, set to its 1.22:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| US | 🇺🇸 US | retailer_sku | YD-A1-WHUS-A1S1 |
