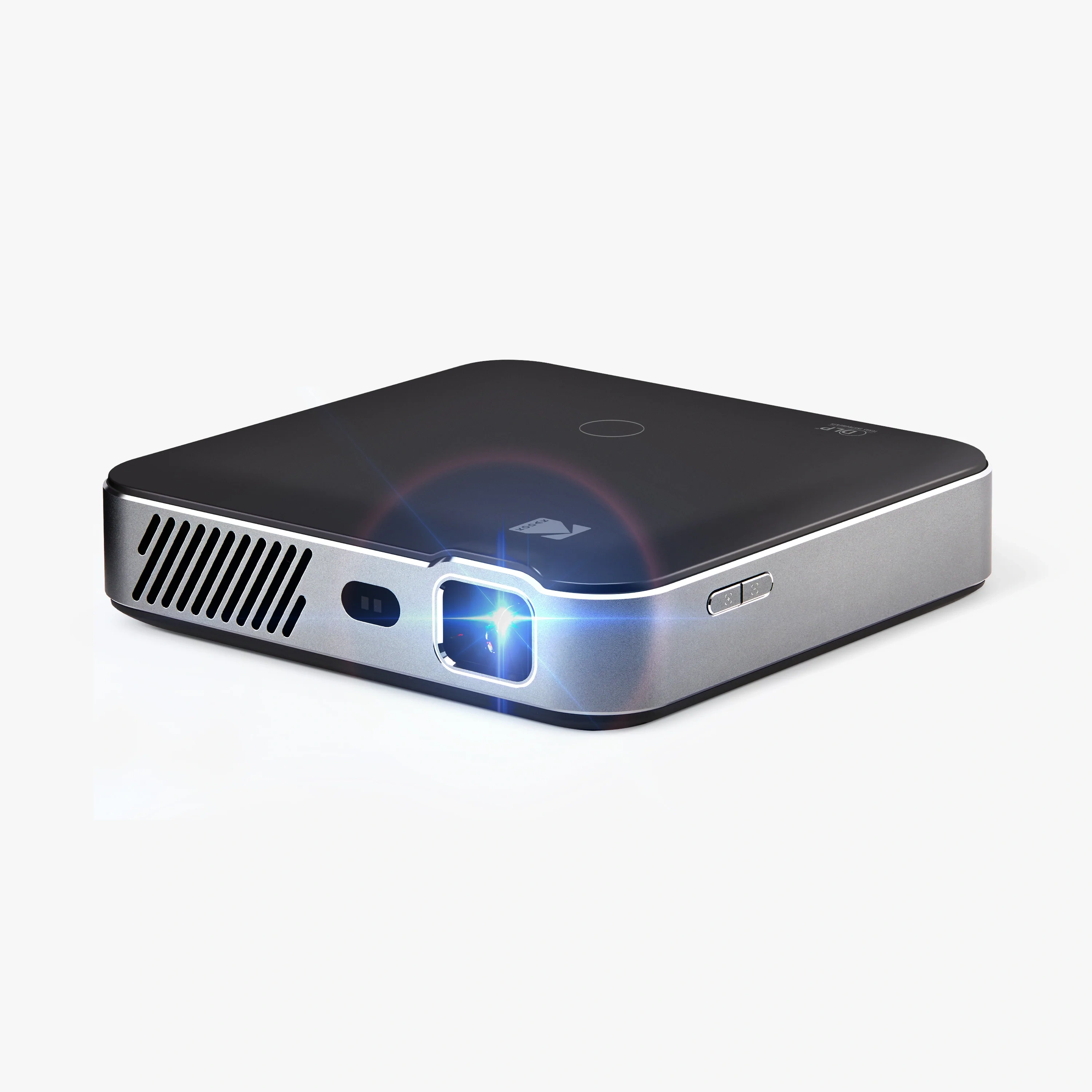

KODAK Luma 500
MSRP$643.99
| Brand | KODAK · Luma |
| Type | Pico |
| Resolution | 1080p |
| HDR formats | HDR10+ |
| Imaging technology | DLP |
| Light source type | LED |
| ANSI lumens | 160 lm |
| Throw ratio | 1.2:1 |
A battery-powered 1080p DLP pico projector with an RGB LED light source, a stated 160 ANSI lumens and a fixed 1.2:1 throw. It runs Google TV with Google Cast, has one HDMI input, USB, a 3.5 mm audio jack and Bluetooth, and suits casual portable viewing in a dark room.
Data sheet
| Imaging technology | DLP | |
| Technology brand | DLP | |
| Chip / panel diagonal | 0.23 in | |
| Native aspect ratio | 16:9 | |
| Native resolution | 1920 × 1080 | |
| Dynamic contrast | 2,000:1 | |
| HDR formats | HDR10+ |
Optics
| Throw ratio | 1.2:1 | |
| Focus | Auto | |
| Fixed offset | 100% | |
| Image size range | 10–150 in | |
| Corner / warp correction | 4pt |
Light source
| Light source type | LED | |
| Light source detail | RGB LED | |
| Light source life | Rated: 30,000 h | |
| ANSI lumens | 160 lm ANSI | ANSI |
| Brightness uniformity (centre-to-corner) | 90% |
Audio
| Speaker power | 3 W | |
| Speaker count | 2 | |
| Audio outputs | 3.5 mm, Bluetooth | |
| Bluetooth audio out | Yes |
Inputs, control & connectivity
| Max input signal | 3840 × 2160 | |
| HDMI port count | 1 | |
| USB media playback | Yes | |
| Bluetooth version | 5.0 | |
| Auto keystone | Yes |
Environment & power
| Operating orientations | Table, Ceiling, Rear | |
| Rated voltage | 15 V | |
| Power consumption (max) | 36 W | |
| Standby power | 0.5 W | |
| Power supply | External brick | |
| Battery runtime | 120 min |
Physical & installation
| Width | 132 mm | |
| Depth | 132 mm | |
| Height | 34 mm | |
| Colours / finishes | Black, White | |
| Tripod socket | Yes |
Support & ownership
| Warranty | 🇺🇸 US 1 yr | |
| User manual | https://cdn.shopify.com/s/files/1/0568/7024/0322/files/EN_Kodak_Luma_500_RODPJS500_RODPJS500B_Manual.pdf?v=1744802853 | |
| Safety & market certifications | FCC |
In the box
| Box contents | Projector, Power adapter, Remote, Aaa batteries, Quick start guide, Tripod | |
| Remote type | Voice |
Tools
- Throw calculator — How far from the screen the Luma 500 needs to sit for a given image size, set to its 1.2:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Black, US | 🇺🇸 US | ASIN | B0F6DTBVXS |
| ASIN | B0F6DW2P4Q | ||
| MPN | RODPJS500B | ||
| White, US | 🇺🇸 US | MPN | RODPJS500 |
