Emotn C1

Brand	Dangbei · Emotn
Type	Portable
Status	Discontinued
Released	April 2022
Resolution	720p
Imaging technology	Single-panel LCD
Light source	LED
Claimed brightness (non-standard)	8,500 lm
Throw ratio	1.36:1

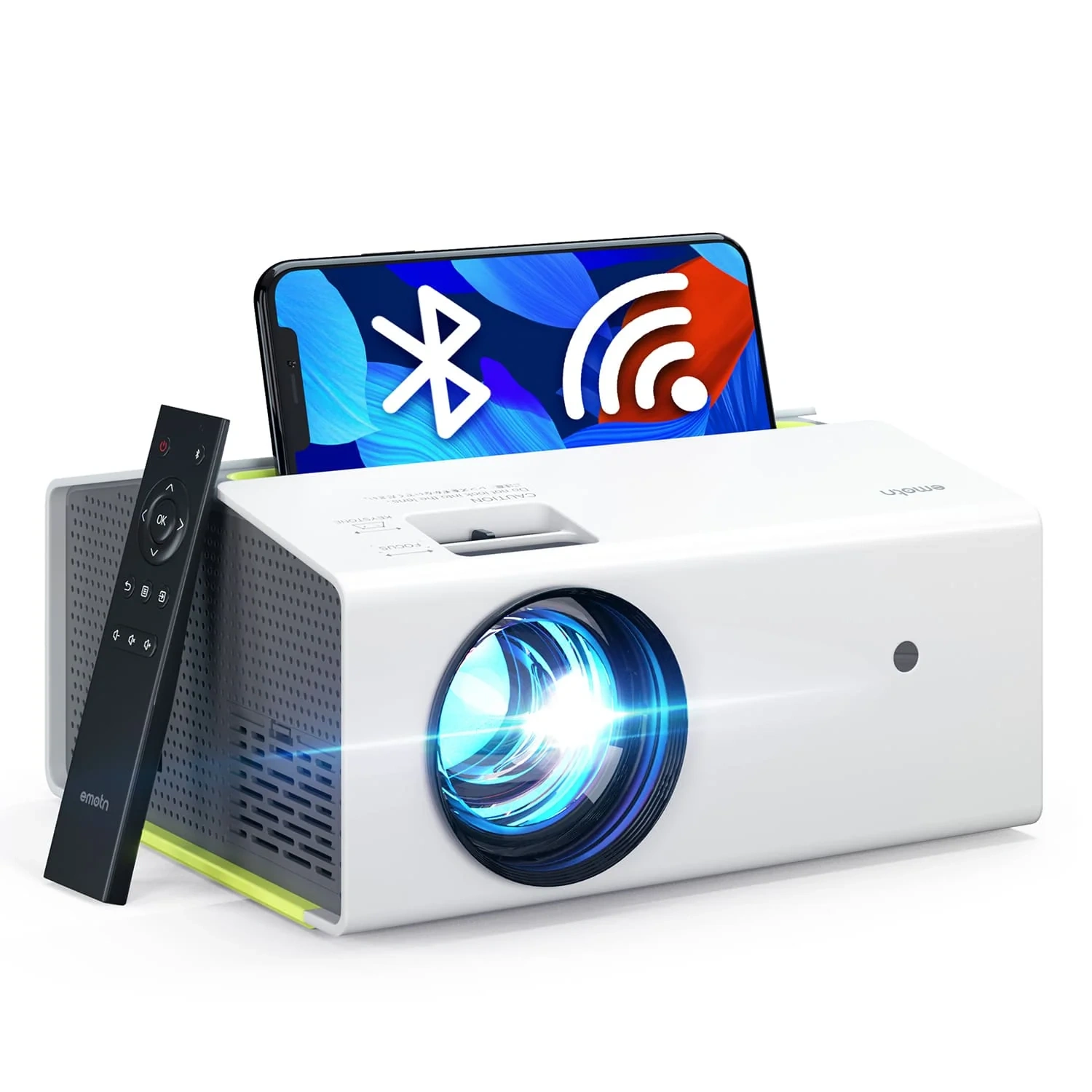

A compact single-panel LCD LED projector from Dangbei's Emotn sub-brand with a 1280x720 panel that accepts 1080p input. It has manual focus, manual keystone, a 5 W mono speaker, two HDMI inputs, VGA, USB and AV, and Bluetooth 5.1.

Data sheet


Claimed brightness (non-standard)	8,500 lm
Imaging technology	Single-panel LCD
Native resolution	720p (1280 × 720)
Native aspect	16:9Derived
Dynamic contrast	5,500:1
Colour bit depth (per channel)	8 bit

Light source

Light source	LED
Light-source life	Up to 50,000 h

Optics

Throw ratio	1.36:1100″ · 3.01 m
Image size	45–200 in
Zoom	Digital
Focus	Manual
Vertical keystone	15°

Inputs & control

HDMI inputs	2 × HDMI
Other video inputs	VGA, Composite
Max input resolution	1080p
Audio inputs	3.5 mm

Smart platform

Bluetooth

5.1

Audio

Speaker power	5 W
Speakers	1
Audio outputs	3.5 mm, Bluetooth
HDMI audio return	NoneDerived
Bluetooth speaker mode	Yes

Physical & installation

Colours

White

Environment & power

Mains input	100–240 V · 50/60 Hz
Fan noise	30 dB(A)

Safety & support

Warranty

🇺🇸 US 1 yr

Similar models

Model	Resolution	Tech	Lumens	Price
TOPTRO TR23 720p · Single-panel LCD	720p	Single-panel LCD	9,000* +500	—	Compare
Panasonic PT-VMQ85 3840 × 2400 · 3LCD	3840 × 2400	3LCD	8,000 −500	—	Compare
Panasonic PT-VMZ62 WUXGA · 3LCD	WUXGA	3LCD	6,500 −2,000	—	Compare
Panasonic PT-VMZ61 WUXGA · 3LCD	WUXGA	3LCD	6,200 −2,300	—	Compare
Panasonic PT-VMZ51 WUXGA · 3LCD	WUXGA	3LCD	5,200 −3,300	—	Compare
Dragon Touch Electric Focus Mini Projector (FHD, 5G WiFi) 1080p · Single-panel LCD	1080p	Single-panel LCD	12,000* +3,500	$46.17 −$113	Compare

Other

Tools

Throw calculator — How far from the screen the Emotn C1 needs to sit for a given image size, set to its 1.36:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
White, US	🇺🇸 US	UPC	795847571706
White, US	🇺🇸 US	retailer_sku	E-C1-Projector-US
