iSinbox AC311
| Brand | iSinbox |
| Type | Portable |
| Resolution | 1080p |
| HDR formats | HDR10+ |
| Imaging technology | Single-panel LCD |
| Light source type | LED |
| ANSI lumens | 1,200 lm |
| Throw ratio | 1.1:1 |

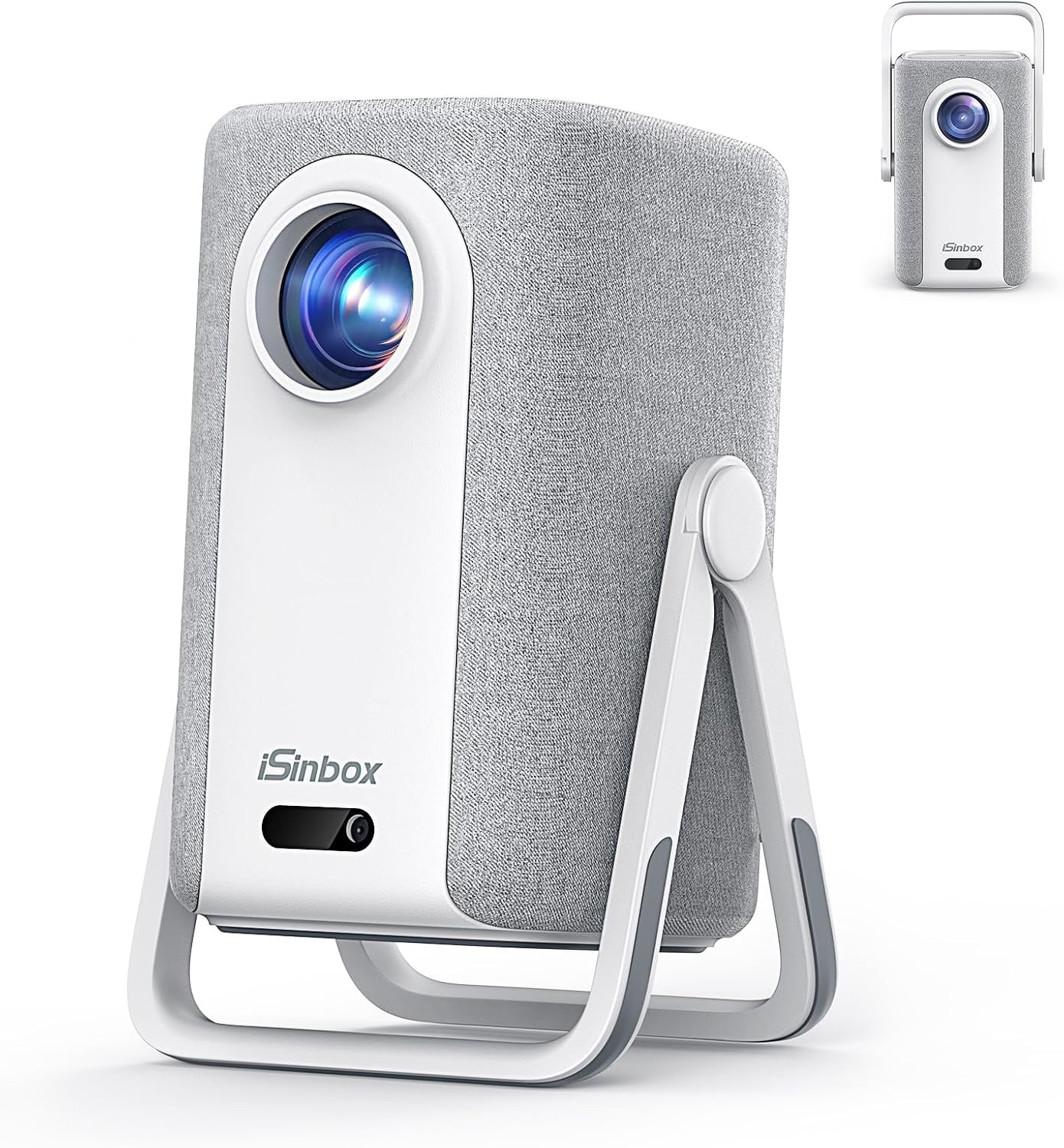

A portable smart projector with a fixed 1.1:1 short-throw lens, a rotating stand that doubles as a carry handle, and autofocus with automatic keystone correction. Its panel is 1920x1080; it accepts and decodes 4K and HDR10+ content, and it needs mains power.
Data sheet
| Imaging technology | Single-panel LCD | |
| Number of imaging devices | 1 | |
| Native resolution | 1920 × 1080 | |
| HDR formats | HDR10+ |
Optics
| Throw ratio | 1.1:1 | |
| Throw reference point | Lens | |
| Projection distance table | 100″: 2.41 m | |
| Zoom type | Digital | |
| Focus | Auto |
Light source
| Light source type | LED | |
| Light source life | LED: 30,000 h | |
| ANSI lumens | 1,200 lm ANSI | ANSI |
Audio
| Speaker power | 40 W | |
| Speaker count | 2 | |
| Audio channels | Stereo | |
| DTS | Yes | |
| Audio outputs | 3.5 mm, Bluetooth | |
| HDMI eARC | Yes | |
| Bluetooth speaker mode | Yes | |
| Bluetooth audio out | Yes |
Inputs, control & connectivity
| Max input signal | 3840 × 2160 | |
| Wi-Fi | Wi-Fi 6 | |
| Bluetooth version | 5.4 | |
| Auto keystone | Yes | |
| Screen fit / alignment | Yes | |
| Obstacle avoidance | Yes | |
| Integrated stand / gimbal | Type: rotating_stand · Rotation deg: 360 · Doubles as handle: true |
Physical & installation
Tools
- Throw calculator — How far from the screen the AC311 needs to sit for a given image size, set to its 1.1:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Standard | All regions | ASIN | B0H43Y6ZT9 |
