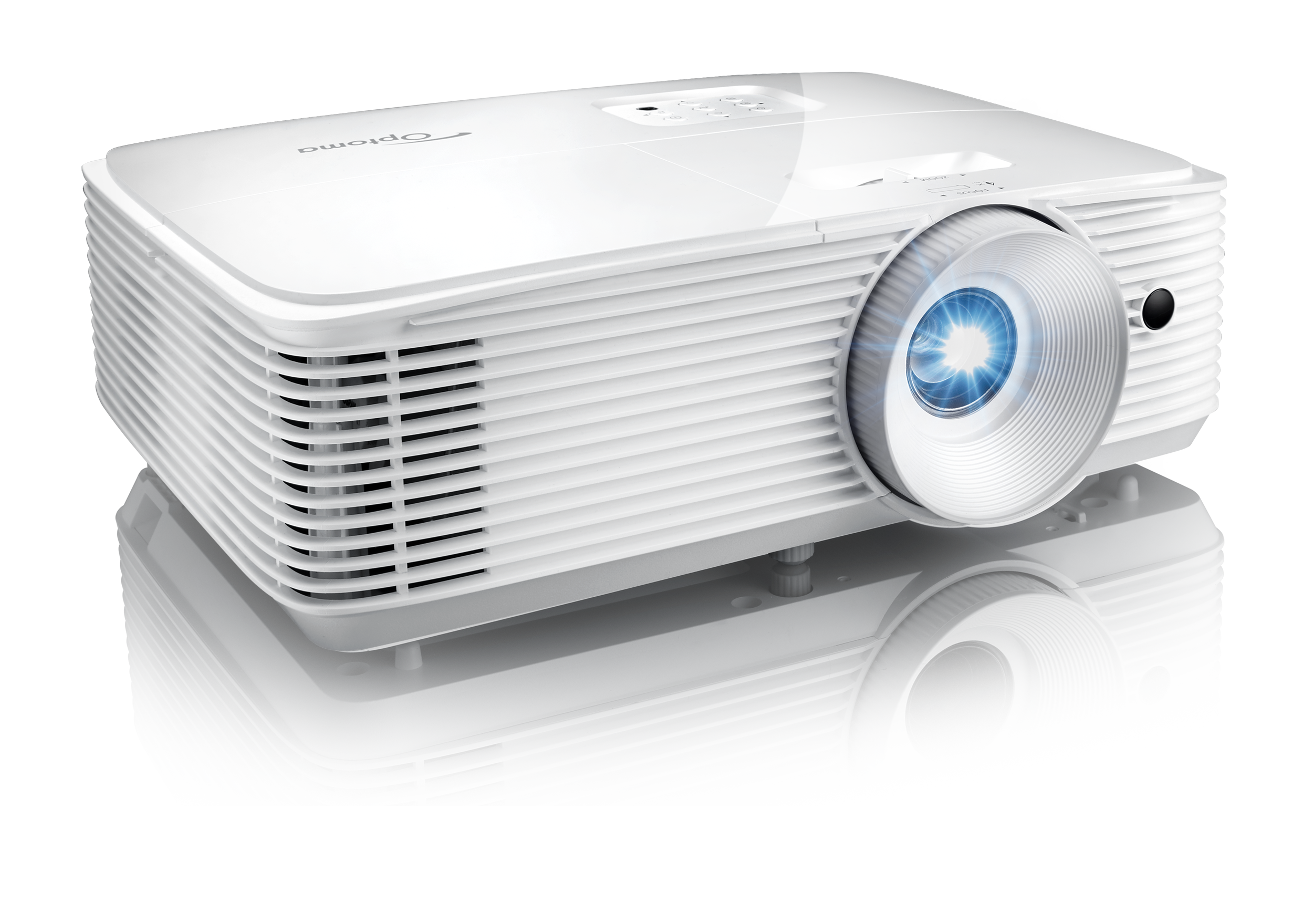

Optoma W405LVe
| Brand | Optoma |
| Type | Business |
| Released | April 2026 |
| Resolution | WXGA |
| Imaging technology | DLP |
| Light source type | Lamp |
| ANSI lumens | 4,200 lm |
| Throw ratio | 1.55–1.73:1 |
A lamp-based single-chip DLP projector with 1280x800 (WXGA) resolution, rated at 4,200 ANSI lumens, aimed at classrooms and meeting rooms. It has a 1.1x manual zoom lens, one HDMI 1.4a input, VGA and composite inputs, and a 10 W mono speaker.
Data sheet
| Imaging technology | DLP | |
| Native aspect ratio | 16:10 | |
| Native resolution | 1280 × 800 | |
| Dynamic contrast | 30,000:1 | |
| 3D support | Yes | |
| 3D formats | Side-by-side, Frame packing, Top-bottom |
Optics
| Throw ratio | 1.55–1.73:1 | |
| Zoom type | OpticalDerived | |
| Zoom ratio | 1.1× | |
| Focus | Manual | |
| Fixed offset | 112% | |
| Focal length | 21.85–24 mm | |
| Image size range | 30–300 in | |
| Vertical keystone | -40–40° |
Light source
| Light source type | Lamp | |
| Lamp wattage | 203 W | |
| Light source life | Bright: 6,000 h · Dynamic: 12,000 h · Eco: 10,000 h · Eco plus: 15,000 h | |
| ANSI lumens | 4,200 lm ANSI | ANSI |
| Brightness uniformity (centre-to-corner) | 75% |
Audio
Inputs, control & connectivity
| Max input signal | 1920 × 1080 | |
| HDMI port count | 1Derived | |
| HDMI ports (feature-level) | HDMI: HDMI 1.4a | |
| Audio input terminals | 3.5 mm | |
| Horizontal scan frequency | 15.38–91.15 kHz | |
| Vertical scan frequency | 50–85 Hz | |
| VGA input | Yes | |
| RS-232 | Yes |
Environment & power
| Operating temperature | 5–40°C | |
| Operating humidity | 10–85%RH | |
| Altitude / high-altitude mode | 3,000 m | |
| Operating orientations | Table, Ceiling, Rear | |
| Rated voltage | 100–240 V | |
| Rated frequency | 50–60 Hz | |
| Power consumption (max) | 225 W | |
| Power consumption by mode | Min: 187 W · Max: 225 W | |
| Standby power | 0.5 W | |
| Fan noise (sound pressure) | Min: 27 dB(A) · Max: 29 dB(A) |
Support & ownership
| User manual | https://region-resource.optoma.com/products/import/Documents/56ac35cf-7cb4-46f0-acc0-75c846804ea2.pdf |
In the box
| Box contents | Remote, Power cord, Battery, Quick start guide |
Tools
- Throw calculator — How far from the screen the W405LVe needs to sit for a given image size, set to its 1.55–1.73:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Standard, US | 🇺🇸 US | ASIN | B0GSHDT1FV |
| UPC | 796435448844 | ||
| MPN | W405LVe |
