Optoma ProScene ZU920TNL

Brand	Optoma · ProScene
Type	Installation
Released	March 2026
Resolution	WUXGA
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	9,800 lm ISO

A single-chip WUXGA DLP laser projector for large venues such as houses of worship, rated at 9,800 ISO and 8,200 ANSI lumens. It is sold without a lens, with five optional BX lenses, and has motorized zoom, focus and lens shift, warping and edge blending, HDBaseT and two 10 W speakers.

Data sheet


White light output	9,800 lm ISO · 8,200 lm ANSI
Brightness uniformity	95%
Imaging technology	DLP
Chip / panel diagonal	0.65 in
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Dynamic contrast	3,000,000:1
3D	Yes

Light source

Light source	Laser (phosphor)
Light-source life	30,000 h eco
Constant brightness mode	Yes

Optics

Projection offset	50%
Vertical lens shift	±50%
Horizontal lens shift	±15%
Motorised lens shift	Yes
Vertical keystone	30°
Horizontal keystone	30°
Corner correction	4-corner
Grid warp	Yes
Interchangeable lens	Yes

Inputs & control

HDMI inputs	2 × HDMI 2.0
Other video inputs	VGA, HDBaseT
Max input resolution	DCI 4K
Audio inputs	3.5 mm
Control ports	RS-232, Wired IR, 12 V trigger
Control-system drivers	Crestron, AMX

Smart platform

Wi-Fi	None
Ethernet	Yes

Audio

Speaker power	10 W
Speakers	2
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	486 × 376 × 185 mm
Weight	12,601 g
Orientations	Portrait, 360°
Ingress protection	IP5X (light engine)

Environment & power

Power draw	Max 598 W
Mains input	90–264 V · 50/60 Hz
Fan noise	Max 38 dB(A) · Eco 27 dB(A)

Safety & support

Warranty	🇺🇸 US 3 yr (light source 5 yr or 12,000 h) Retailer listing (Focused Technology); ProjectorCentral's review says the same. Optoma's US warranty page is unreadable.
User manual	region-resource.optoma.com

In the box

In the box	Power cord, Remote
Remote	Backlit

Reviews

Articles

Date	Title	Publication
June 15, 2026	Optoma ZU920TNL Projector Review: Best for Churches? ProjectorCentral · June 15, 2026	ProjectorCentral

Similar models

Model	Resolution	Tech	Lumens	Price
Epson EB-PU2010W WUXGA · 3LCD	WUXGA	3LCD	10,000 +200	$17,350 +$10,851	Compare
Epson EB-PQ2010W 4K UHD · 3LCD	4K UHD	3LCD	10,000 +200	$38,833 +$32,334	Compare
Optoma ProScene ZK1000 3840 × 2400 · DLP	3840 × 2400	DLP	10,000 +200	—	Compare

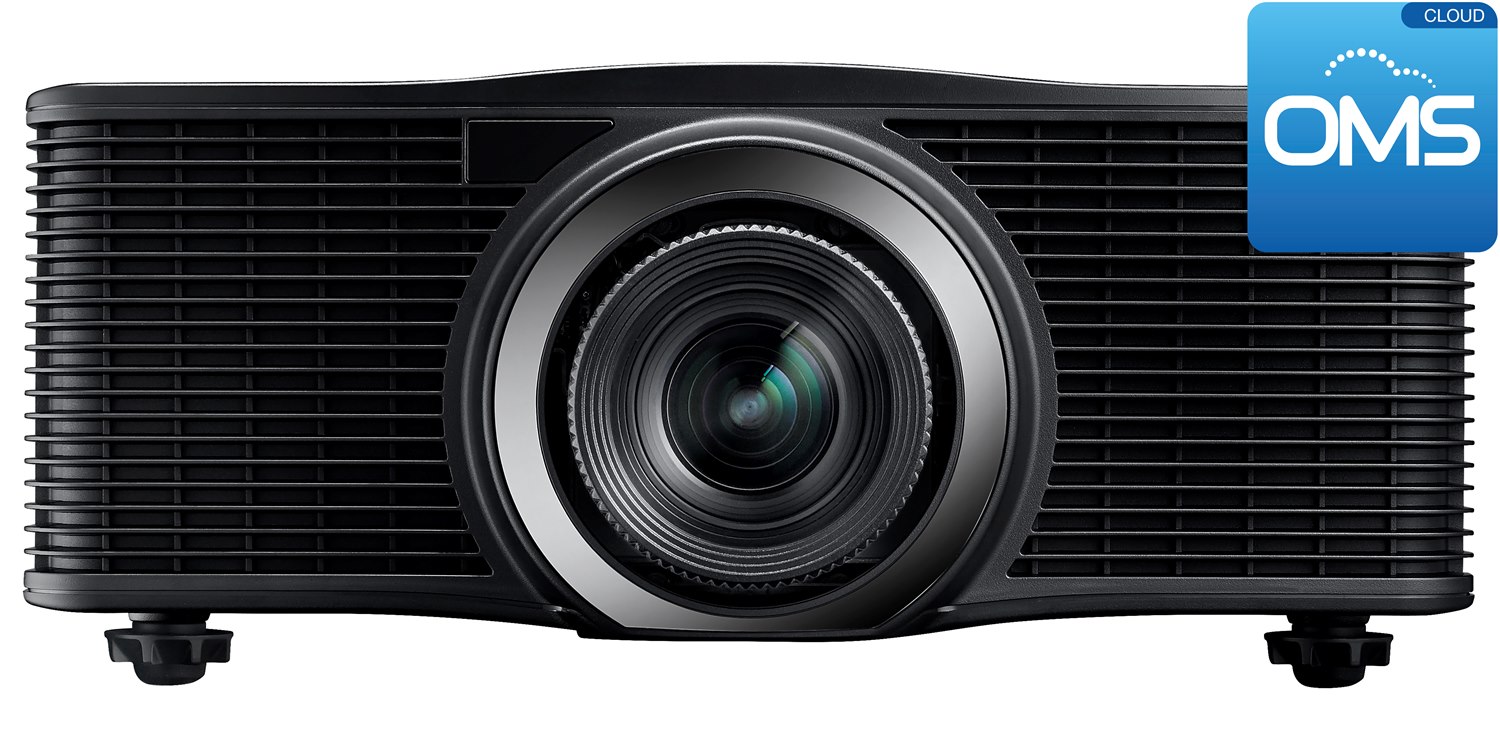

Optoma ProScene ZU1100 WUXGA · DLP	WUXGA	DLP	9,600 −200	$22,749 +$16,250	Compare
