Dangbei Neo
| Brand | Dangbei |
| Type | Portable |
| Status | Discontinued |
| Released | May 2023 |
| Resolution | 1080p |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | LED |
| Brightness | 540 lm ISO |
| Throw ratio | 1.2:1 |

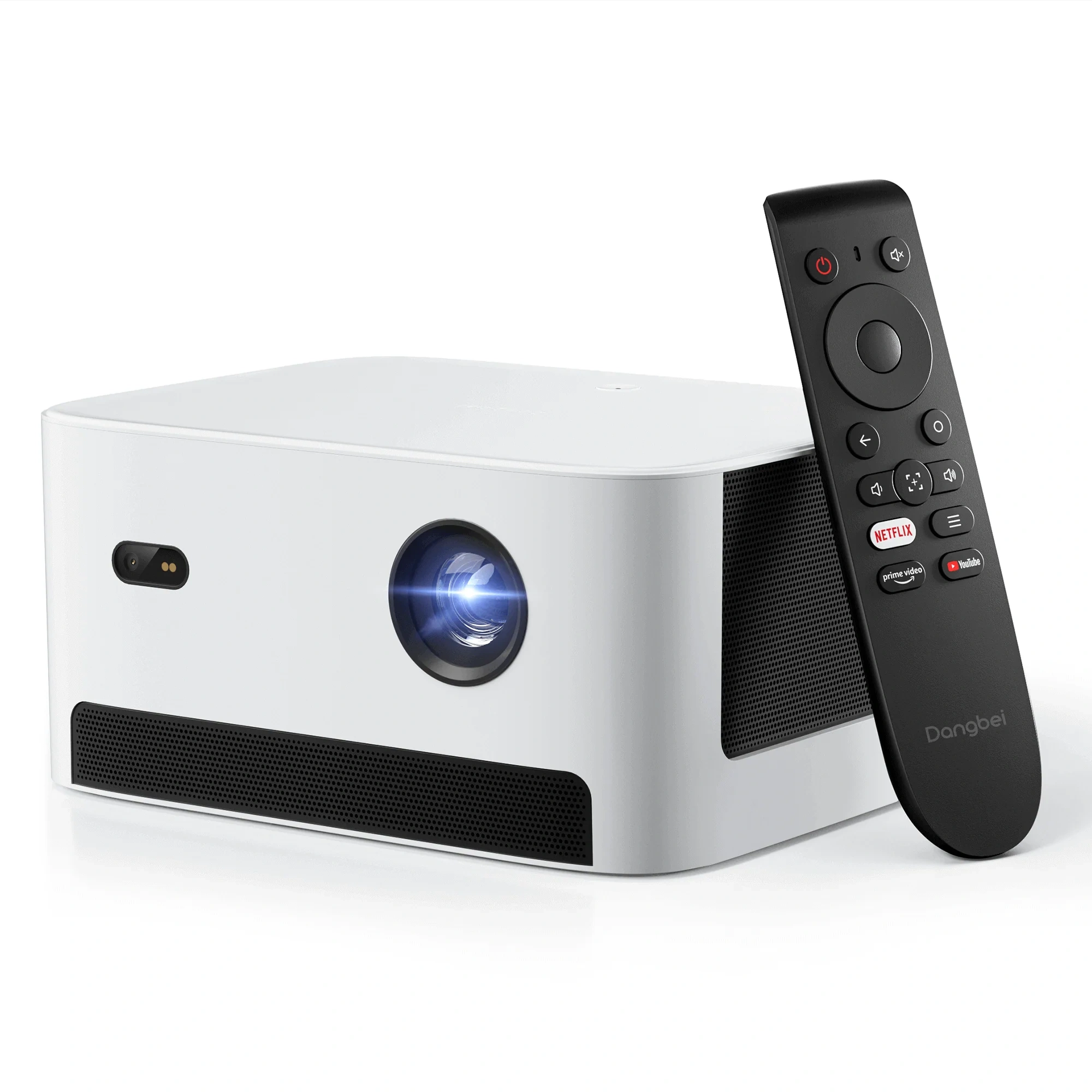

A compact mains-powered DLP projector with a 0.33-inch chip, native 1080p output and a 540 ISO lumen LED light source. It runs a Linux smart system with a licensed Netflix app and has one HDMI (ARC) port, 2 x 6 W Dolby Audio speakers, and ToF and camera based auto focus, keystone, screen fit and obstacle avoidance.
Data sheet
| White light output | 540 lm ISO | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.33 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Colour gamut | About DCI-P3 90% | |
| HDR formats | HDR10, HLG |
Light source
| Light source | LED | |
| Light-source life | 30,000 h |
Optics
| Throw ratio | 1.2:1100″ · 2.66 m | |
| Image size | 37.5–120 in | |
| Zoom | Digital | |
| Focus | Motorised | |
| Autofocus | Yes | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Auto keystone | Yes | |
| Corner correction | 4-corner | |
| Auto setup | Fit to screen, Obstacle avoidance |
Inputs & control
| HDMI inputs | HDMI (ARC) |
Audio
| Speaker power | 12 W | |
| Speakers | 2 | |
| Audio formats | Dolby Audio | |
| Audio outputs | Optical | |
| HDMI audio return | ARCDerived | |
| Bluetooth speaker mode | Yes |
Physical & installation
| Dimensions (W × D × H) | 200 × 157 × 100 mm | |
| Weight | 1,420 g |
Environment & power
| Operating temperature | 5–35°C | |
| Power draw | Max 75 W | |
| Power supply | External adapter | |
| Mains input | 100–240 V | |
| Fan noise | Up to 22 dB(A) |
Safety & support
| Risk group | RG1 | |
| Eye-protection sensor | Yes | |
| Marks | CE, UKCA | |
| Warranty | 🇺🇸 US 1 yr | |
| User manual | shopifydata.dangbei.net |
In the box
| In the box | Power cord, Power adapter, Remote, User manual | |
| Remote | Bluetooth |
