LG CineBeam PU700R
MSRP$1,699.99
| Brand | LG · CineBeam |
| Type | Portable |
| Status | Discontinued |
| Released | May 22, 2023 |
| Resolution | 4K UHD |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source type | LED |
| ANSI lumens | 1,000 lm |
| Throw ratio | 1.2:1 |

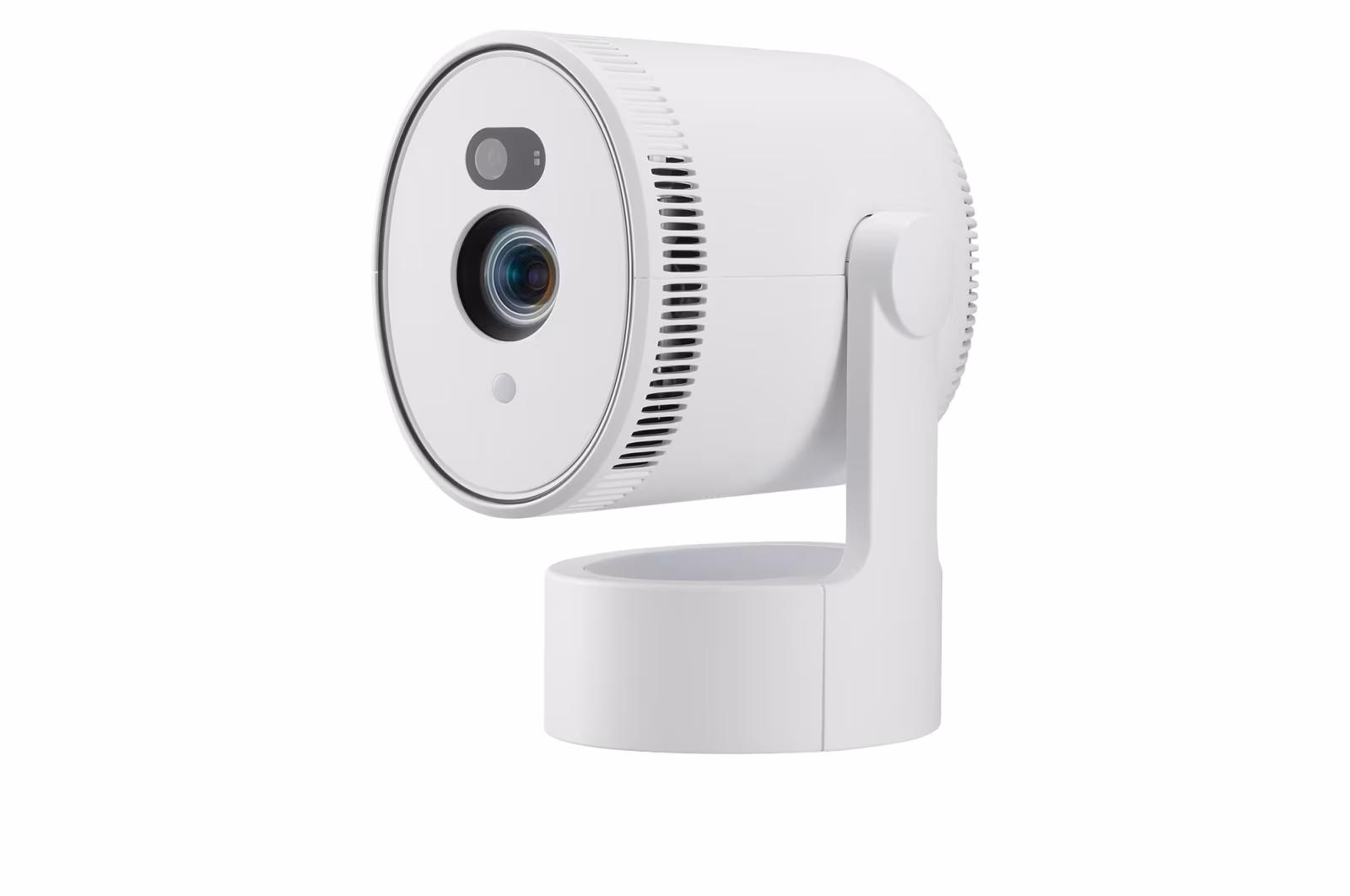

A compact single-chip DLP projector with an RGB LED light source and a pixel-shifted 4K UHD image, rated at 1,000 ANSI lumens by LG. It has a fixed 1.2:1 lens, a rotating cradle stand, one HDMI 2.1 input with ARC, USB-C and a 5W mono speaker, and runs webOS. LG has since discontinued it.
Data sheet
| Imaging technology | DLP | |
| Technology brand | DLP | |
| Native aspect ratio | 16:9 | |
| Pixel shift | Other | |
| Addressable resolution | 3840 × 2160 | |
| Dynamic contrast | 150,000:1 | |
| HDR formats | HDR10, HLG | |
| Tone mapping type | Dynamic |
Optics
| Throw ratio | 1.2:1 | |
| Projection distance table | 60″: 1.62 m · 120″: 3.26 m | |
| Zoom type | None | |
| Focus | Motorized | |
| Fixed offset | 100% | |
| Image size range | 60–120 in | |
| Corner / warp correction | Warp |
Light source
| Light source type | LED | |
| Light source detail | RGB LED | |
| Light source life | High brightness: 30,000 h | |
| Life definition | Unspecified | |
| ANSI lumens | 1,000 lm ANSI · Brightest mode | ANSI · Brightest mode |
Audio
Inputs, control & connectivity
| Max input signal | 4096 × 2160 | |
| HDMI port count | 1 | |
| HDMI ports (feature-level) | HDMI: HDMI 2.1, 24 Gbps | |
| USB-C video (DP Alt Mode) | Yes | |
| Control ecosystem drivers | HomeKit | |
| Auto keystone | Yes | |
| Screen fit / alignment | Yes |
Firmware / software
| Smart OS | webOS | |
| OS version | webOS 22 | |
| Casting | AirPlay 2 |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 0–80%RH | |
| Rated voltage | 100–240 V | |
| Rated frequency | 50–60 Hz | |
| Power consumption (max) | 140 W | |
| Standby power | 0.5 W | |
| Power supply | External brick | |
| Fan noise (sound pressure) | Typical: 29 dB(A) |
Physical & installation
| Width | 164 mm | |
| Depth | 144 mm | |
| Height | 307 mm | |
| Weight | 3.1 kg | |
| Colours / finishes | White |
Support & ownership
| Warranty | 🇺🇸 US 1 yr · 🇨🇦 CA 1 yr · 🇩🇪 DE 3 yr | |
| User manual | https://gscs-b2c.lge.com/open/downloadFile?fileId=gdXsVxLtvg8TK1xdUfslw | |
| Photobiological risk group | RG2 |
In the box
| Box contents | Magic Lighting Remote, Two AA Batteries, AC-DC Adaptor, Power cord, Owner's Manual | |
| Remote type | Voice |
Tools
- Throw calculator — How far from the screen the CineBeam PU700R needs to sit for a given image size, set to its 1.2:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| White, US | 🇺🇸 US | ASIN | B0C383FVG3 |
| MPN | PU700R.AUS | ||
| White, Canada | 🇨🇦 CA | UPC | 195174051122 |
| MPN | PU700R.ACC | ||
| White, Europe | 🇪🇺 EU | EAN | 8806091985613 |
| MPN | PU700R.AEU |
Similar models
Sources
- LG PU700R Owner's Manual (English, 04/25/2025)
- LG Introduces New 4K UHD CineBeam Projector (LG USA newsroom, 22 May 2023)
- LG CineBeam PU700R.AEU Datenblatt (LG Electronics Deutschland data sheet, copy hosted by heimkinoraum.de)
- LG CineBeam PU700R 4K UHD LED Projector (LG Canada product page and specs)
- LG PU700R.AUS product support page (LG USA)
Also known as
Other names this exact model is sold under.
| PU700R.ACC | 🇨🇦 CA | Regional model |
| PU700R.AEU | 🇪🇺 EU | Regional model |
| LG CineBeam Smart Portable Projector | All regions | Marketing name |
