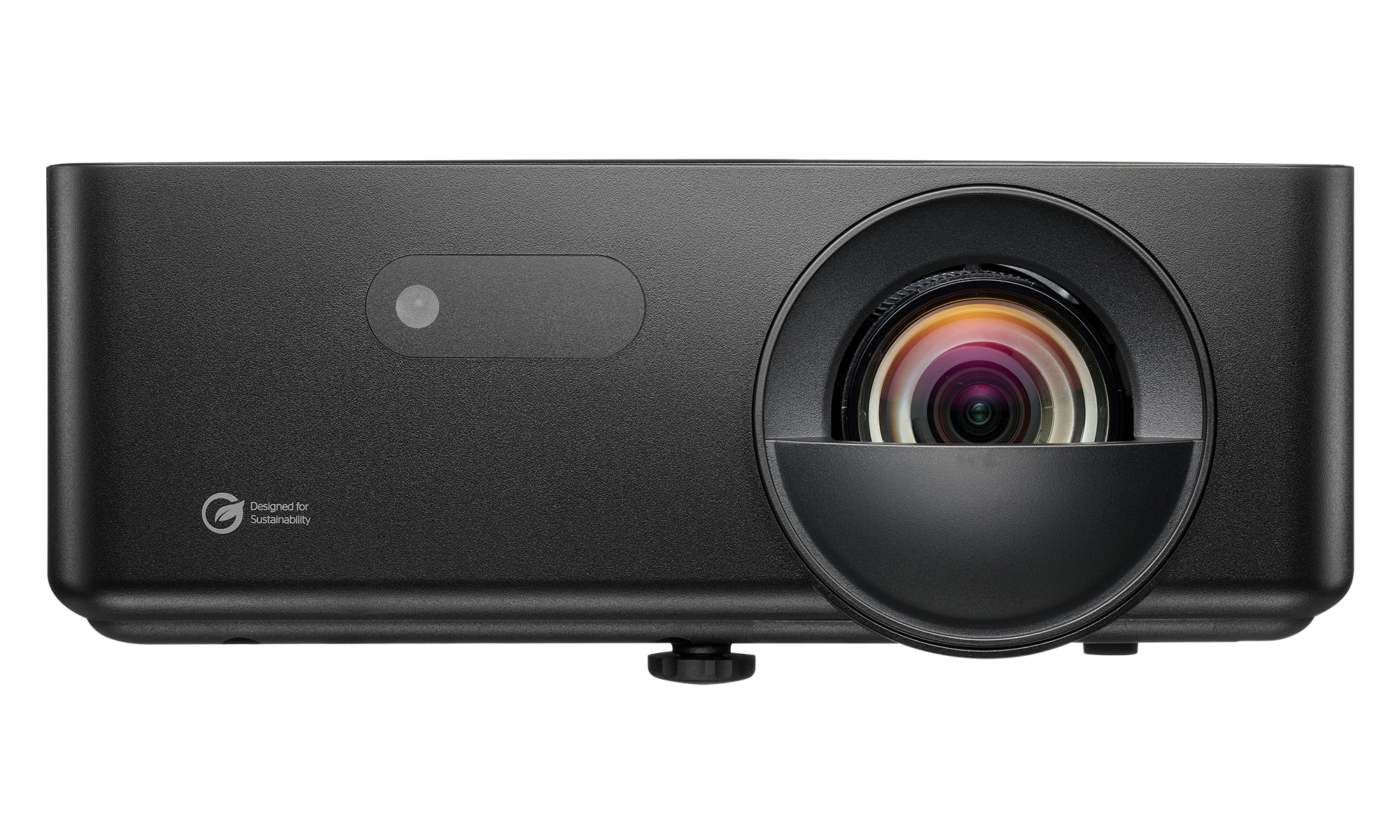

Optoma LH352BST
| Brand | Optoma |
| Type | Gaming |
| Resolution | 1080p |
| Imaging technology | DLP |
| Light source | LED |
| Brightness | 3,300 lm ISO |
| Throw ratio | 0.69–0.83:1 |
| Input lag | 1080p: 60 Hz 16.7 ms · 120 Hz 8.4 ms · 4K UHD: 60 Hz 33.7 ms |
A single-chip DLP short throw projector with a 4LED light source, 1080p resolution and 3,300 ISO lumens. It has a 0.69 to 0.83:1 lens with 1.2x optical zoom, a Golf Sim picture mode and two HDMI 2.0 inputs.
Data sheet
| White light output | 3,300 lm ISO | |
| Brightness uniformity | 85% | |
| Imaging technology | DLP | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Dynamic contrast | 2,000,000:1 | |
| 3D | Yes |
Light source
| Light source | LED | |
| Light-source life | 30,000 h eco |
Optics
| Throw ratio | 0.69–0.83:1100″ · 1.53–1.84 m | |
| Image size | 30–300 in | |
| Projection offset | 103% | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 10.2–12.24 mm | |
| Aperture (f-number) | 2.6–2.78 | |
| Vertical keystone | 30° | |
| Horizontal keystone | 30° |
Motion & gaming
| Max input refresh | 1080p: 120 Hz · 4K UHD: 60 Hz | |
| Input lag | 1080p: 60 Hz 16.7 ms · 120 Hz 8.4 ms · 4K UHD: 60 Hz 33.7 ms Low Latency Mode on | Low Latency Mode on |
Inputs & control
| HDMI inputs | 2 × HDMI 2.0 | |
| Control ports | RS-232 |
Audio
| Speaker power | 10 W | |
| Speakers | 1 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 307 × 228 × 126 mm | |
| Weight | 3,175 g | |
| Orientations | Table, Ceiling, Rear, 360° |
Environment & power
| Operating temperature | 0–40°C | |
| Altitude | 3,048 m | |
| Power draw | Max 226 W · Eco 124 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 31 dB(A) · Eco 29 dB(A) |
Safety & support
| Warranty | 🇺🇸 US 1 yr (light source 5 yr or 12,000 h) Datasheet: "5-year or 12,000 hour light source warranty (whichever comes first)". | |
| User manual | region-resource.optoma.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide |
