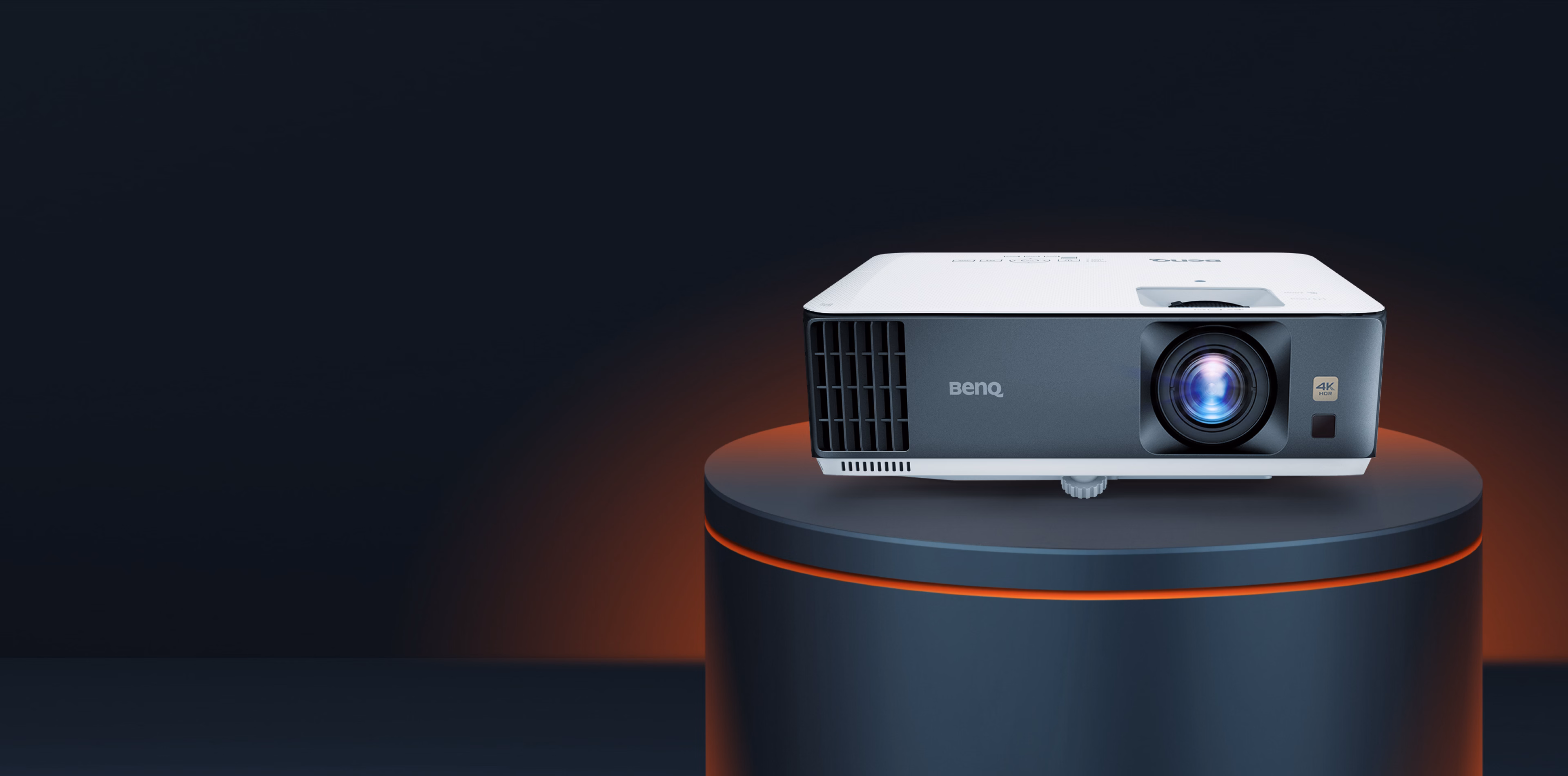

BenQ TK700
MSRP$1,499
| Brand | BenQ · Home Entertainment |
| Type | Gaming |
| Status | Discontinued |
| Released | February 2022 |
| Resolution | 4K UHD (1080p pixel shift) |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source type | Lamp |
| ANSI lumens | 3,200 lm |
| Throw ratio | 1.13–1.46:1 |
| Input lag (rated) | 3840×2160 @ 60 Hz: 16.7 ms · 1920×1080 @ 60 Hz: 16.7 ms · 1920×1080 @ 120 Hz: 8.3 ms · 1920×1080 @ 240 Hz: 4.2 ms |
A single-chip DLP lamp projector that shows 4K UHD through pixel shifting, rated at 3,200 ANSI lumens. It is aimed at console and PC gaming, with BenQ-rated input lag of 4.2 ms at 1080p/240 Hz and 16.7 ms at 4K/60 Hz, and it has no lens shift. It suits a dedicated gaming or living room where the projector can sit at a fixed height relative to the screen.
Data sheet
| Imaging technology | DLP | |
| Number of imaging devices | 1 | |
| Chip / panel diagonal | 0.47 in | |
| Native aspect ratio | 16:9 | |
| Native resolution | 1920 × 1080 | |
| Pixel shift | XPR 4-way | |
| Addressable resolution | 3840 × 2160 | |
| Colour wheel segments | RGBWRGBW | |
| Dynamic contrast | 10,000:1 | |
| Rec.709 gamut | 96% | |
| Gamut metric | Coverage | |
| Colour temperature presets | Native, Custom | |
| Gamma / EOTF presets | 2.2, 2.4, 2.6, Custom | |
| Bit depth / 'number of colours' | 30 bit | |
| Colour management system | 6-axis | |
| HDR formats | HDR10, HLG | |
| Max refresh rate | 1920×1080: 240 Hz · 3840×2160: 60 Hz | |
| Input lag (rated) | 3840×2160 @ 60 Hz: 16.7 ms · 1920×1080 @ 60 Hz: 16.7 ms · 1920×1080 @ 120 Hz: 8.3 ms · 1920×1080 @ 240 Hz: 4.2 ms | |
| 3D support | Yes | |
| 3D formats | Frame sequential, Top-bottom, Side-by-side, Frame packing | |
| Glasses included | 0 |
Optics
| Throw ratio | 1.13–1.46:1 | |
| Projection distance table | 60″: 1.5–1.94 m · 100″: 2.5–3.23 m · 200″: 4.99–6.46 m | |
| Zoom type | Optical | |
| Zoom ratio | 1.3× | |
| Focus | Manual | |
| Vertical lens shift | 0% | |
| Horizontal lens shift | 0% | |
| Fixed offset | 110% | |
| Focal length | 11.9–15.5 mm | |
| F-number | 1.94–2.12 | |
| Image size range | 30–300 in | |
| Vertical keystone | -30–30° | |
| Horizontal keystone | -30–30° |
Light source
| Light source type | Lamp | |
| Light source detail | 240 W lamp | |
| Lamp wattage | 240 W | |
| Light source life | Normal: 4,000 h · Eco: 10,000 h · Smarteco: 8,000 h · Lampsave: 15,000 h | |
| Cool-down time | 90 s | |
| ANSI lumens | 3,200 lm ANSI | ANSI |
Audio
| Speaker power | 5 W | |
| Speaker count | 1 | |
| Audio channels | Mono | |
| Audio partner | treVolo | |
| Dolby Atmos | Yes | |
| Audio outputs | 3.5 mm, HDMI eARC | |
| HDMI ARC | Yes | |
| HDMI eARC | Yes |
Inputs, control & connectivity
| Max input signal | 3840 × 2160 | |
| HDMI port count | 2 | |
| HDMI ports (feature-level) | HDMI-1: HDMI 2.0b, HDCP 2.2; HDMI-2: HDMI 2.0b, HDCP 2.2, eARC | |
| Audio input terminals | 3.5 mm | |
| Horizontal scan frequency | 15–135 kHz | |
| Vertical scan frequency | 23–120 Hz | |
| RS-232 | Yes | |
| Auto keystone | Yes |
Firmware / software
| Smart OS | None |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–90%RH | |
| Altitude / high-altitude mode | 3,000 m | |
| High-altitude mode | Yes | |
| Operating orientations | Table, Ceiling, Rear | |
| Rated voltage | 100–240 V | |
| Rated frequency | 50–60 Hz | |
| Power consumption (max) | 380 W | |
| Power consumption by mode | Max: 380 W · Normal: 310 W · Eco: 215 W | |
| Standby power | 0.5 W | |
| Fan noise (sound pressure) | Normal: 34 dB(A) · Eco: 28 dB(A) |
Physical & installation
| Width | 312 mm | |
| Depth | 246 mm | |
| Height | 110 mm | |
| Weight | 3.1 kg | |
| Exhaust / intake direction | Side | |
| Mount hole pattern | Thread: M4 |
Support & ownership
| Warranty | 🇺🇸 US 3 yr | |
| Light-source warranty | Pre-installed lamp: 2,000 hours or one year, whichever comes first; replacement lamp: 90 days or 500 hours (US) | |
| User manual | https://esupportdownload.benq.com/esupport/PROJECTOR%20FOR%20CONSUMER/UserManual/TK700/TK700_UM_EN_240717160145.pdf | |
| Photobiological risk group | RG2 |
In the box
| Box contents | Remote, Batteries, Power cord, Quick start guide, Warranty card | |
| Remote type | IR | |
| 3D glasses in box | 0 |
