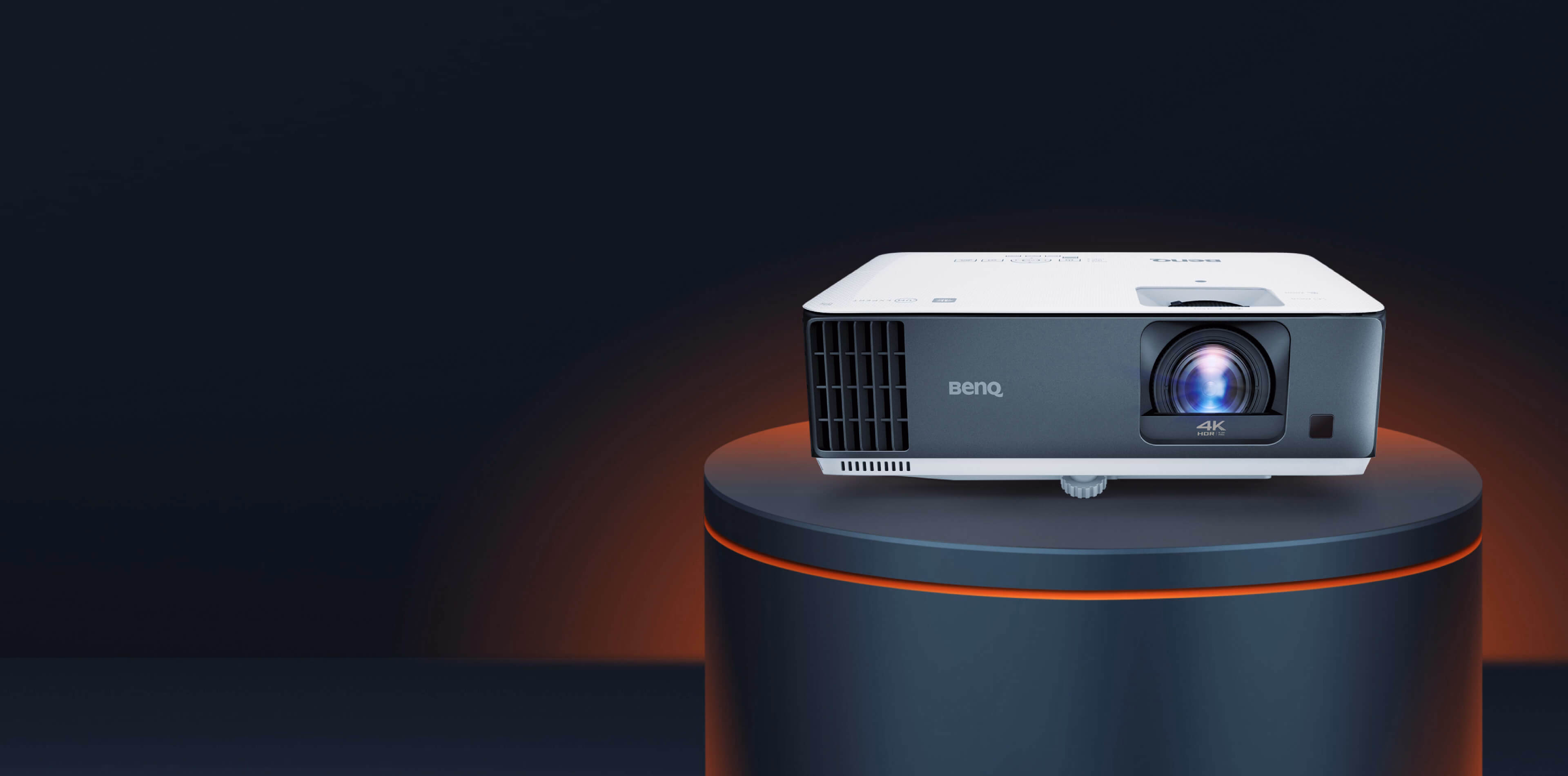

BenQ TK700STi
| Brand | BenQ · Home Entertainment |
| Type | Gaming |
| Status | Discontinued |
| Released | May 2021 |
| Resolution | 4K UHD (1080p pixel shift) |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | Lamp |
| Brightness | 3,000 lm ANSI |
| Throw ratio | 0.9–1.08:1 |
| Input lag | 1080p: 60 Hz 16.7 ms · 120 Hz 8.3 ms · 240 Hz 4.2 ms · 4K UHD: 60 Hz 16.7 ms |
A single-chip DLP lamp projector for gaming and home entertainment. A 0.47-inch DMD with XPR pixel shift produces a 3840x2160 image at a rated 3,000 ANSI lumens through a 0.9 to 1.08 short-throw lens with 1.2x zoom. It has two HDMI 2.0b inputs, one with eARC, a 5 W speaker, BenQ-rated input lag of 4.2 ms at 1080p 240 Hz and 16.7 ms at 4K 60 Hz, and ships with a QS01 Android TV dongle.
Data sheet
| White light output | 3,000 lm ANSI | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Colour wheel segments | 8 | |
| Dynamic contrast | 10,000:1 | |
| Colour gamut | Rec. 709 96% coverage | |
| Colour bit depth (per channel) | 10 bit | |
| Gamma / EOTF presets | 2.2, 2.4, 2.6 | |
| Colour temperature presets | Native | |
| HDR formats | HDR10, HLG | |
| Colour management (CMS) | 6-axis | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential |
Light source
| Light source | Lamp | |
| Lamp power | 240 W | |
| Light-source life | 4,000 h normal · 10,000 h eco · 15,000 h super eco · 8,000 h dynamic | |
| Warm-up time | 30 s | |
| Cool-down time | 90 s |
Optics
| Throw ratio | 0.9–1.08:1100″ · 1.99–2.39 m | |
| Projection offset | 110% | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 9.25–11.1 mm | |
| Aperture (f-number) | 1.94–2.05 | |
| Focus | Manual | |
| Autofocus | No | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Vertical keystone | 30° | |
| Horizontal keystone | 30° | |
| Auto keystone | Yes |
Motion & gaming
| Max input refresh | 1080p: 240 Hz · 4K UHD: 60 Hz | |
| Input lag | 1080p: 60 Hz 16.7 ms · 120 Hz 8.3 ms · 240 Hz 4.2 ms · 4K UHD: 60 Hz 16.7 ms |
Inputs & control
| HDMI inputs | 2 × HDMI 2.0 (HDCP 2.2) · HDMI 2.0 (HDCP 2.2, internal) | |
| Max input resolution | 4K UHD | |
| Control ports | RS-232 |
Smart platform
| Wi-Fi | Wi-Fi 5 | |
| Bluetooth | 4.2 | |
| Smart platform | Android TV | |
| OS version | 10 | |
| Netflix | No | |
| Casting | Chromecast built-in |
Audio
| Speaker power | 5 W | |
| Speakers | 1 | |
| Tuned by | treVolo, Bongiovi DPS | |
| Audio formats | Dolby Atmos | |
| Audio outputs | 3.5 mm, HDMI eARC | |
| HDMI audio return | eARCDerived |
Physical & installation
| Dimensions (W × D × H) | 312 × 246 × 110 mm | |
| Weight | 3,100 g | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4 |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–90%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | Max 380 W · Normal 310 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 34 dB(A) · Eco 28 dB(A) |
Safety & support
| Risk group | RG2 | |
| Warranty | 🇺🇸 US 3 yr | |
| User manual | esupportdownload.benq.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, Warranty card, Streaming dongle |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| January 16, 2023 | BenQ TK700STi Gaming Projector Review HomeTheaterHifi · January 16, 2023 | HomeTheaterHifi |
| July 22, 2021 | BenQ TK700STi review ProjectorCentral · July 22, 2021 | ProjectorCentral |
| July 22, 2021 | BenQ TK700STi review What Hi-Fi? · July 22, 2021 | What Hi-Fi? |
| — | BenQ TK700STi 4K gaming projector review TechRadar | TechRadar |
Videos
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

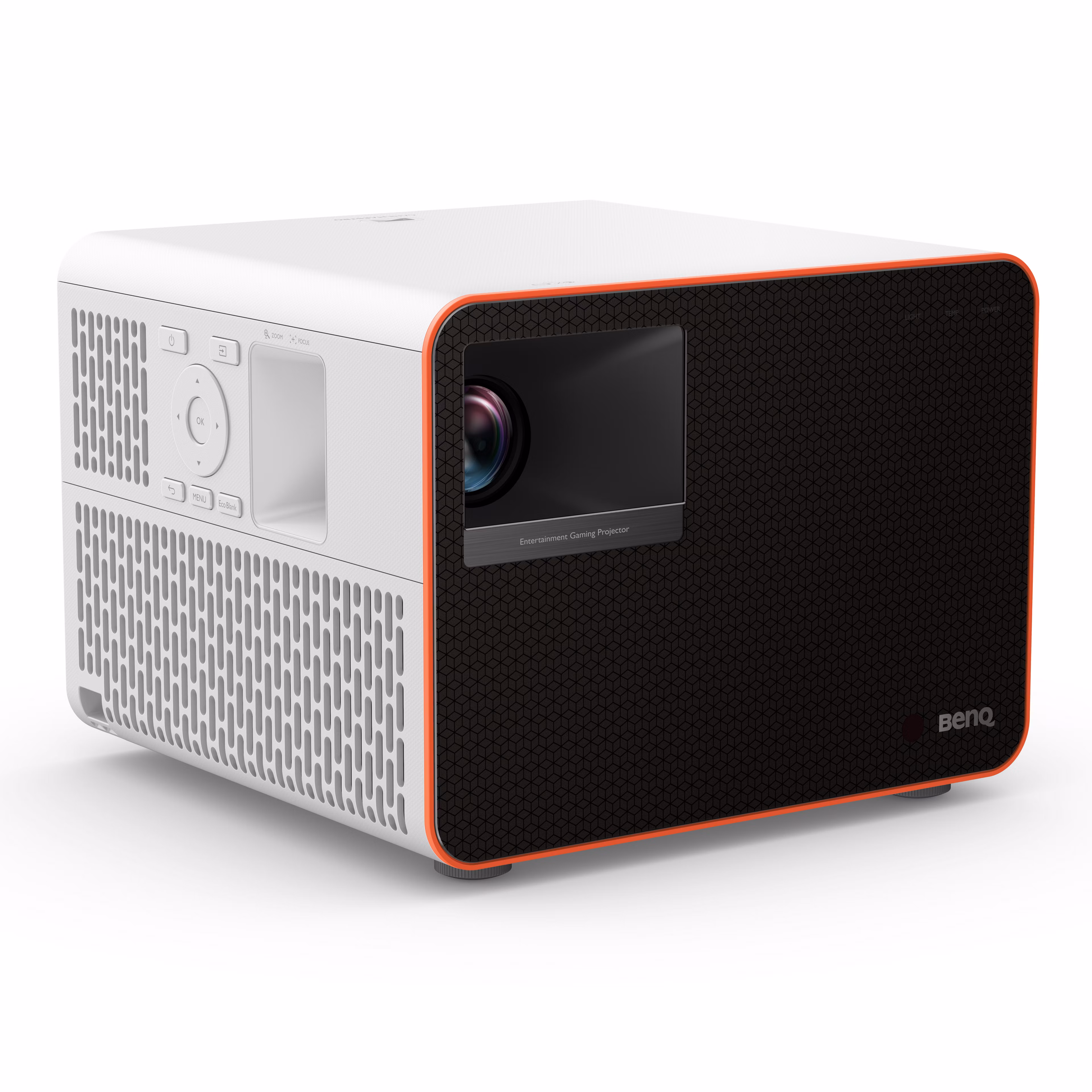

BenQ X1300i 1080p · DLP | 1080p | DLP | 3,000 | $1,299 −$300 | Compare |
