ViewSonic M1 mini Plus
| Brand | ViewSonic · M Series |
| Type | Portable |
| Status | Discontinued |
| Released | June 2020 |
| Resolution | 480p |
| Imaging technology | DLP |
| Light source | LED |
| Brightness | 50 lm ANSI |
| Throw ratio | 1.2:1 |
A pocket-sized single-chip DLP LED projector with an 854x480 image from a 0.2-inch chip, rated at 120 LED lumens and 50 ANSI lumens by ViewSonic. It has a built-in battery, a fixed 1.2:1 lens with vertical keystone, a single 2 W JBL speaker, HDMI 1.4, USB-A and USB-C power, Wi-Fi screen mirroring and an app store. It suits casual movie viewing on the go.
Data sheet
| White light output | 50 lm ANSI | |
| Claimed brightness (non-standard) | 120 lm (LED lumens) | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.2 in | |
| Native resolution | 480p (854 × 480) | |
| Native aspect | 16:9Derived | |
| Dynamic contrast | 120,000:1 | |
| Colour bit depth (per channel) | 10 bit | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential |
Light source
| Light source | LED | |
| Emitter | RGB LED | |
| Light-source life | 30,000 h |
Optics
| Throw ratio | 1.2:1100″ · 2.66 m | |
| Image size | 24–100 in | |
| Zoom | None | |
| Focal length | 7.5 mm | |
| Aperture (f-number) | 1.7 | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Vertical keystone | 40° | |
| Auto keystone | Yes | |
| Interchangeable lens | No |
Inputs & control
| HDMI inputs | HDMI 1.4 (HDCP 1.4) | |
| Max input resolution | 1080p | |
| USB media playback | Yes |
Audio
| Speaker power | 2 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Tuned by | JBL | |
| Audio outputs | Bluetooth | |
| HDMI audio return | NoneDerived | |
| Bluetooth speaker mode | Yes |
Physical & installation
| Dimensions (W × D × H) | 110 × 104 × 27 mm | |
| Weight | 280 g | |
| Orientations | Table, Ceiling, Rear | |
| Built-in stand | Stand |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 0–90%RH | |
| Power draw | 20 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| DC input | 5 V | |
| Battery | 18.5 WhDerived | |
| Battery runtime | 84 min | |
| Fan noise | Normal 26 dB(A) · Eco 25 dB(A) |
Safety & support
| Marks | CE, FCC | |
| Warranty | 🇺🇸 US 1 yr | |
| User manual | viewsonicglobal.com |
In the box
| In the box | Power adapter, Remote, Remote batteries, Quick start guide |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
ViewSonic M1 mini 480p · DLP | 480p | DLP | 50 | $169 +$20 | Compare |

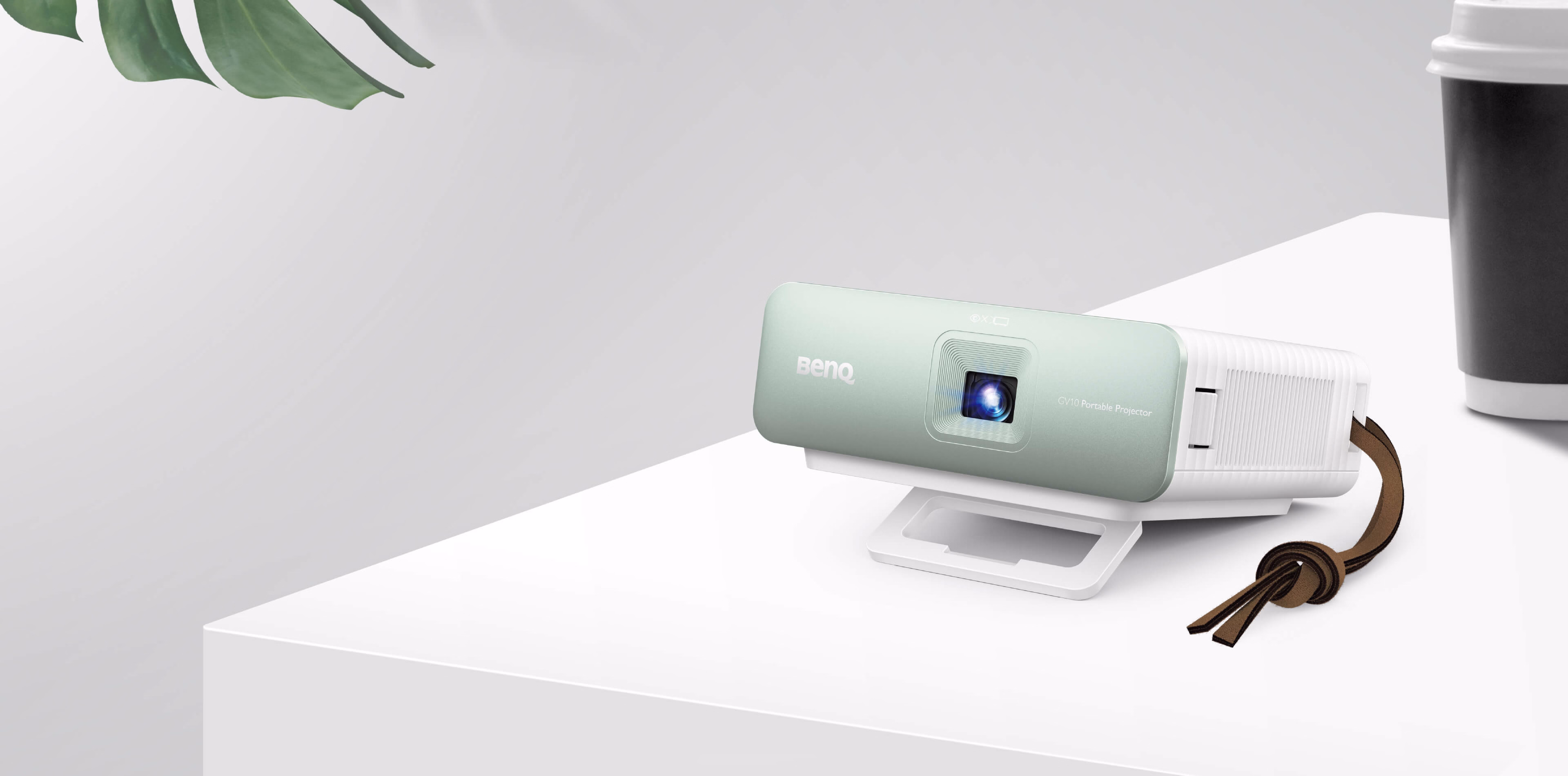

BenQ GV10 480p · DLP | 480p | DLP | 100 +50 | $279 +$130 | Compare |
Thunrlge HY300 720p · Single-panel LCD | 720p | Single-panel LCD | 120 +70 | $56.99 −$92 | Compare |
Nebula Capsule Air 720p · DLP | 720p | DLP | 150 +100 | — | Compare |
HP MC400 720p · Single-panel LCD | 720p | Single-panel LCD | 150 +100 | $109.99 −$39 | Compare |
KODAK Luma 350 480p · DLP | 480p | DLP | 150 +100 | $349.99 +$201 | Compare |
'%3e%3cg%20id='g3061'%20style='fill:%230096D6;fill-opacity:1'%20transform='matrix(1.5180439,0,0,1.5180439,-28.149474,-249.71011)'%3e%3cg%20transform='translate(106.93201,508.32201)'%20id='g3021'%20style='fill:%230096D6;fill-opacity:1'%3e%3cpath%20id='path3023'%20style='fill:%230096D6;fill-opacity:1;fill-rule:nonzero;stroke:none'%20d='m%200,0%20c%200,14.524%20-11.773,26.297%20-26.297,26.297%20-0.396,0%20-0.79,-0.01%20-1.182,-0.028%20l%20-5.379,-14.784%204.685,0%20c%202.787,0%204.289,-2.146%203.335,-4.767%20l%20-6.635,-18.234%20-5.571,10e-4%207.12,19.544%20-4.189,0%20-7.12,-19.544%20-5.573,0%208.372,23%2010e-4,0%205.036,13.841%20C%20-44.471,22.228%20-52.594,12.063%20-52.594,0%20c%200,-12.421%208.613,-22.83%2020.192,-25.583%20l%204.88,13.411%200.004,0%208.609,23.657%2010.261,0%20c%202.79,0%204.291,-2.146%203.337,-4.767%20l%20-5.83,-16.015%20c%20-0.444,-1.22%20-1.869,-2.218%20-3.167,-2.218%20l%20-7.396,0%20-5.374,-14.77%20c%200.259,-0.007%200.52,-0.012%200.781,-0.012%20C%20-11.773,-26.297%200,-14.523%200,0'%20inkscape:connector-curvature='0'%20/%3e%3c/g%3e%3cg%20transform='translate(96.546997,516.36501)'%20id='g3025'%20style='fill:%230096D6;fill-opacity:1'%3e%3cpath%20id='path3027'%20style='fill:%230096D6;fill-opacity:1;fill-rule:nonzero;stroke:none'%20d='m%200,0%20-4.187,0%20-5.864,-16.089%204.187,0%20L%200,0'%20inkscape:connector-curvature='0'%20/%3e%3c/g%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Other
Tools
- Throw calculator — How far from the screen the M1 mini Plus needs to sit for a given image size, set to its 1.2:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Standard | 🇺🇸 US | UPC | 766907006384 |
| MPN | M1MINIPLUS | ||
| All variants | All regions | Model number | VS18107 |
