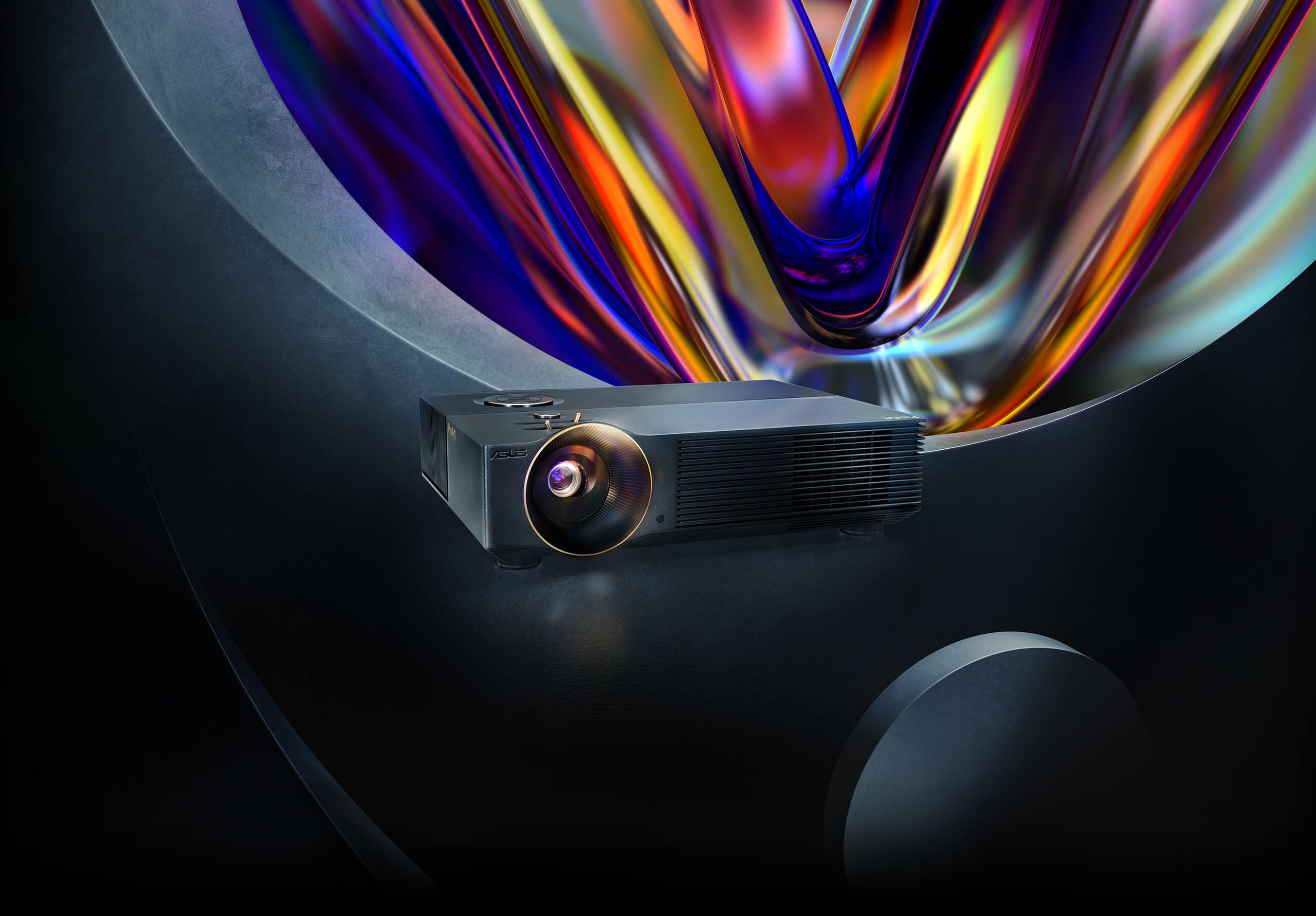

ASUS ProArt Projector A1

Brand	ASUS · ProArt
Type	Home cinema
Resolution	1080p
Imaging technology	DLP
Light source type	LED
ANSI lumens	3,000 lm
Throw ratio	1.3–1.56:1

A DLP LED projector with a 0.65-inch 1080p chip, rated 3,000 ANSI lumens and a 1.2x manual zoom lens. ASUS factory-calibrates it and markets it as Calman Verified for colour work. It has two HDMI 2.0 inputs, VGA, RS-232 and a 10 W speaker, and takes a USB Wi-Fi dongle for mobile mirroring. It suits creators and small rooms rather than dedicated home cinemas.

Data sheet


Imaging technology	DLP
Technology brand	DLP
Chip / panel diagonal	0.65 in
Native aspect ratio	16:9
Native resolution	1920 × 1080
Dynamic contrast	800:1
Rec.709 gamut	98%
DCI-P3 gamut	82%
Gamut metric	Coverage
Bit depth / 'number of colours'	30 bit
Colour management system	6-axis
Max refresh rate	1920×1080: 120 Hz
3D support	Yes
3D sync method	DLP-Link
3D formats	Frame sequential, Frame packing, Top-bottom, Side-by-side

Optics

Throw ratio	1.3–1.56:1
Projection distance table	60″: 1.73–2.07 m · 70″: 2.01–2.42 m · 80″: 2.3–2.76 m · 90″: 2.59–3.11 m · 95″: 2.73–3.28 m · 100″: 2.88–3.45 m · 120″: 3.45–4.14 m · 150″: 4.32–5.18 m
Zoom ratio	1.2×
Focus	Manual
Fixed offset	83%
Image size range	40–200 in
Vertical keystone	-40–40°
Horizontal keystone	-40–40°
Corner / warp correction	4pt

Light source

Light source type	LED
Light source detail	R/G/B LED
Light source life	Max: 30,000 h
ANSI lumens	3,000 lm ANSI	ANSI

Audio

Speaker power	10 W
Audio outputs	3.5 mm

Inputs, control & connectivity

Max input signal	3840 × 2160
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI 2.0; HDMI 2: HDMI 2.0
Horizontal scan frequency	15–101 kHz
Vertical scan frequency	24–120 Hz
VGA input	Yes
RS-232	Yes
Auto keystone	Yes

Environment & power

Operating temperature	0–40°C
Operating humidity	10–90%RH
High-altitude mode	Yes
Operating orientations	Table, Ceiling, Rear
Power consumption (max)	370 W
Standby power	0.5 W
Fan noise (sound pressure)	Standard: 32 dB(A) · Eco: 28 dB(A)

Physical & installation

Width	405 mm
Depth	283 mm
Height	99 mm
Weight	5.7 kg
Colours / finishes	Black

Support & ownership

User manual	https://dlcdnets.asus.com/pub/ASUS/Projectors/A1/E18284_ProArt_A1_LED_Projector_EM_WEB.pdf
Photobiological risk group	RG2
Safety & market certifications	FCC

In the box

Box contents

Hdmi cable, Power cord, Remote control, Wifi dongle, Carrying bag, Aaa batteries, Calibration report, Quick start guide, Warranty card
