BenQ TK800M
| Brand | BenQ · Home Entertainment |
| Type | Home cinema |
| Status | Discontinued |
| Released | March 2019 |
| Resolution | 4K UHD (1080p pixel shift) |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | Lamp |
| Brightness | 3,000 lm ANSI |
| Native contrast (on/off) | 10,000:1 |
| Throw ratio | 1.5–1.65:1 |
| Input lag | 1080p: 60 Hz 51 ms |
A single-chip DLP lamp projector that makes a 4K UHD image by shifting a 0.47-inch 1080p chip four ways, rated at 3,000 ANSI lumens. It has a 1.1x manual zoom with no lens shift, HDR10 and HLG support, two HDMI inputs (one HDMI 2.0) and a 5 W mono speaker, and it suits bright-room sports and general home use.
Data sheet
| White light output | 3,000 lm ANSI | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Pixel shift | XPR 4-way | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Colour wheel segments | 4 | |
| Native contrast (on/off) | 10,000:1 | |
| Dynamic contrast method | None | |
| Colour gamut | Rec. 709 96% coverage | |
| Colour bit depth (per channel) | 10 bit | |
| Gamma / EOTF presets | 2.2, 2.4, 2.6 | |
| HDR formats | HDR10, HLG | |
| Tone mapping | Adjustable | |
| Colour management (CMS) | 6-axis | |
| Picture mode memories | 2 | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential |
Light source
| Light source | Lamp | |
| Lamp power | 240 W | |
| Replacement lamp | 5J.JHN05.001 | |
| Light-source life | 4,000 h normal · 10,000 h eco · 15,000 h super eco · 8,000 h dynamic |
Optics
| Throw ratio | 1.5–1.65:1100″ · 3.32–3.65 m | |
| Image size | 60–200 in | |
| Projection offset | 110% | |
| Zoom | Optical | |
| Zoom ratio | 1.1×Derived | |
| Focal length | 15.84–17.45 mm | |
| Aperture (f-number) | 2–2.05 | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Motorised lens shift | No | |
| Vertical keystone | 40° | |
| Auto keystone | Yes | |
| Interchangeable lens | No | |
| Lens elements | 7 | |
| Lens material | Glass |
Motion & gaming
| Frame interpolation (MEMC) | No | |
| Input lag | 1080p: 60 Hz 51 ms |
Inputs & control
| HDMI inputs | HDMI 2.0 (HDCP 2.2) · HDMI 1.4 (HDCP 1.4) | |
| Other video inputs | VGA | |
| Max input resolution | 4K UHD | |
| Audio inputs | 3.5 mm | |
| USB media playback | No | |
| Control ports | RS-232, 12 V trigger |
Smart platform
| Smart platform | None |
Audio
| Speaker power | 5 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 353 × 272 × 135 mm | |
| Weight | 4,200 g | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4, 20–25 mm screws |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–90%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | Max 385 W · Normal 330 W · Eco 250 W | |
| Standby | Up to 0.5 W | |
| Power supply | Built in | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 33 dB(A) · Eco 29 dB(A) |
Safety & support
| Risk group | RG2 | |
| Warranty | 🇺🇸 US 3 yr (light source 1 yr or 2,000 h) | |
| User manual | esupportdownload.benq.com | |
| Spare parts | Lamp 5J.JHN05.001 |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, User manual, Warranty card | |
| Remote | IR · backlit |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| — | BenQ TK800M Review (4K DLP Projector) Home Media Entertainment | Home Media Entertainment |
| May 13, 2020 | BenQ TK800M review: An affordable, bright, 4K UHD projector for sports and gaming Techaeris · May 13, 2020 | Techaeris |
| July 5, 2019 | BenQ TK800M Projector First Look Review - 4K UHD HDR Optimized for Sports Fans Projector Reviews · July 5, 2019 | Projector Reviews |
Videos
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Optoma UHZ50 4K UHD · DLP | 4K UHD | DLP | 3,000* | $2,799 +$1,500 | Compare |

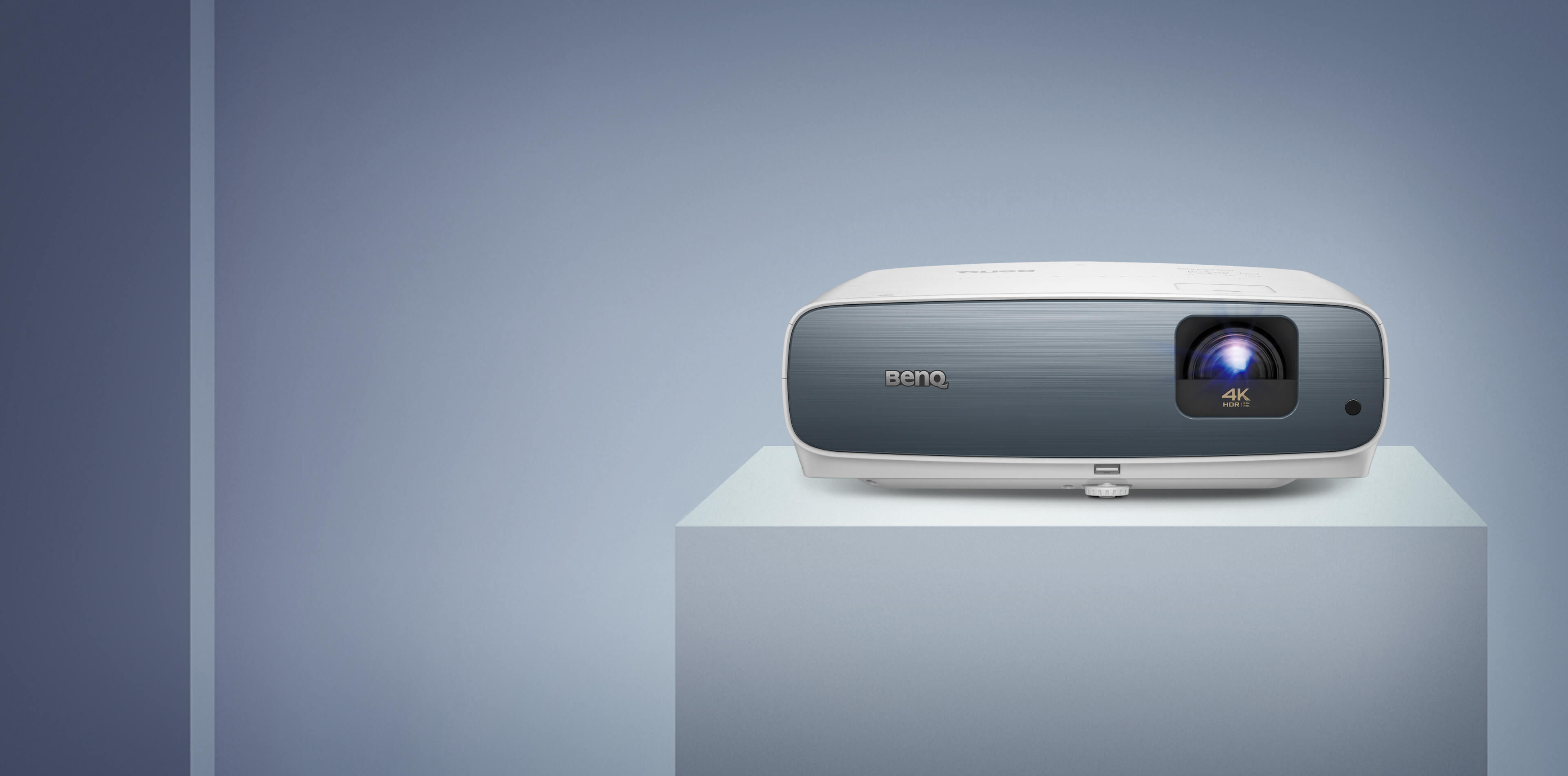

BenQ TK850 4K UHD · DLP | 4K UHD | DLP | 3,000 | $1,699 +$400 | Compare |
