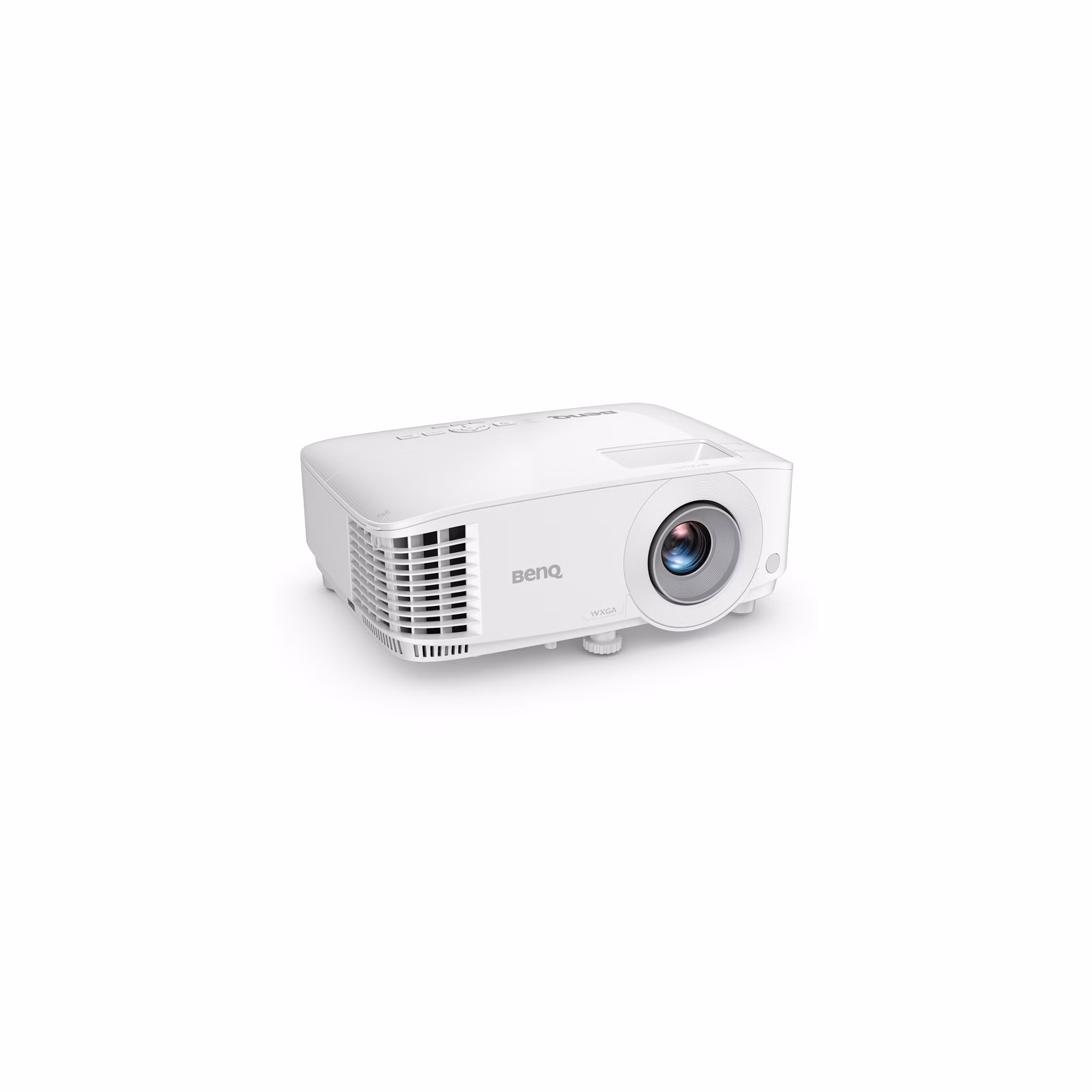

BenQ MW560

Brand	BenQ
Type	Business
Status	Discontinued
Released	January 2021
Resolution	WXGA
Imaging technology	DLP
Light source	Lamp
Brightness	4,000 lm ANSI
Throw ratio	1.55–1.7:1

A WXGA (1280x800) single-chip DLP lamp projector rated at 4,000 ANSI lumens, aimed at meeting rooms and classrooms. It has two HDMI 1.4a inputs, VGA, composite and S-Video inputs, a 10 W mono speaker and 1.1x manual zoom, and weighs 2.3 kg.

Data sheet


White light output	4,000 lm ANSI
Imaging technology	DLP
Chip / panel diagonal	0.65 in
Native resolution	WXGA (1280 × 800)
Native aspect	16:10Derived
Dynamic contrast	20,000:1
Colour bit depth (per channel)	10 bit
Colour management (CMS)	6-axis
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential

Light source

Light source	Lamp
Lamp power	200 W
Light-source life	6,000 h normal · 10,000 h eco · 15,000 h super eco · 10,000 h dynamic
Warm-up time	30 s
Cool-down time	90 s

Optics

Throw ratio	1.55–1.7:1100″ · 3.34–3.66 m
Image size	60–150 in
Projection offset	100%
Zoom	Optical
Zoom ratio	1.1×Derived
Focal length	22–24.1 mm
Aperture (f-number)	2.56–2.68
Focus	Manual
Autofocus	No
Vertical keystone	40°
Auto keystone	Yes
Lens material	Glass

Inputs & control

HDMI inputs	2 × HDMI 1.4 (HDCP 1.4)
Other video inputs	VGA, Composite
Max input resolution	WUXGA
Audio inputs	3.5 mm
Control ports	RS-232

Audio

Speaker power	10 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	296 × 221 × 120 mm
Weight	2,300 g
Orientations	Table, Ceiling, Rear
Ceiling mount	M4, 20–25 mm screws

Environment & power

Operating temperature	0–40°C
Operating humidity	10–90%RH
Altitude	3,000 m · high-altitude mode
Power draw	Max 280 W · Normal 260 W · Eco 215 W
Standby	Up to 0.5 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 34 dB(A) · Eco 29 dB(A)

Safety & support

Risk group	RG2
Warranty	🇺🇸 US 3 yr (light source 1 yr or 2,000 h)
User manual	esupportdownload.benq.com

In the box

In the box	Power cord, Remote, Remote batteries, Quick start guide, User manual, Warranty card, VGA cable
Remote	IR

Similar models

Model	Resolution	Tech	Lumens	Price
Christie LW401 WXGA · 3LCD	WXGA	3LCD	4,000	$1,699.99 +$1,201	Compare
NEC NP-M403H 1080p · DLP	1080p	DLP	4,000	$2,599 +$2,100	Compare
NEC NP-P401W WXGA · 3LCD	WXGA	3LCD	4,000	$1,799 +$1,300	Compare
Optoma EH412ST 1080p · DLP	1080p	DLP	4,000	$930 +$431	Compare
BenQ LH650 1080p · DLP	1080p	DLP	4,000	$1,449 +$950	Compare

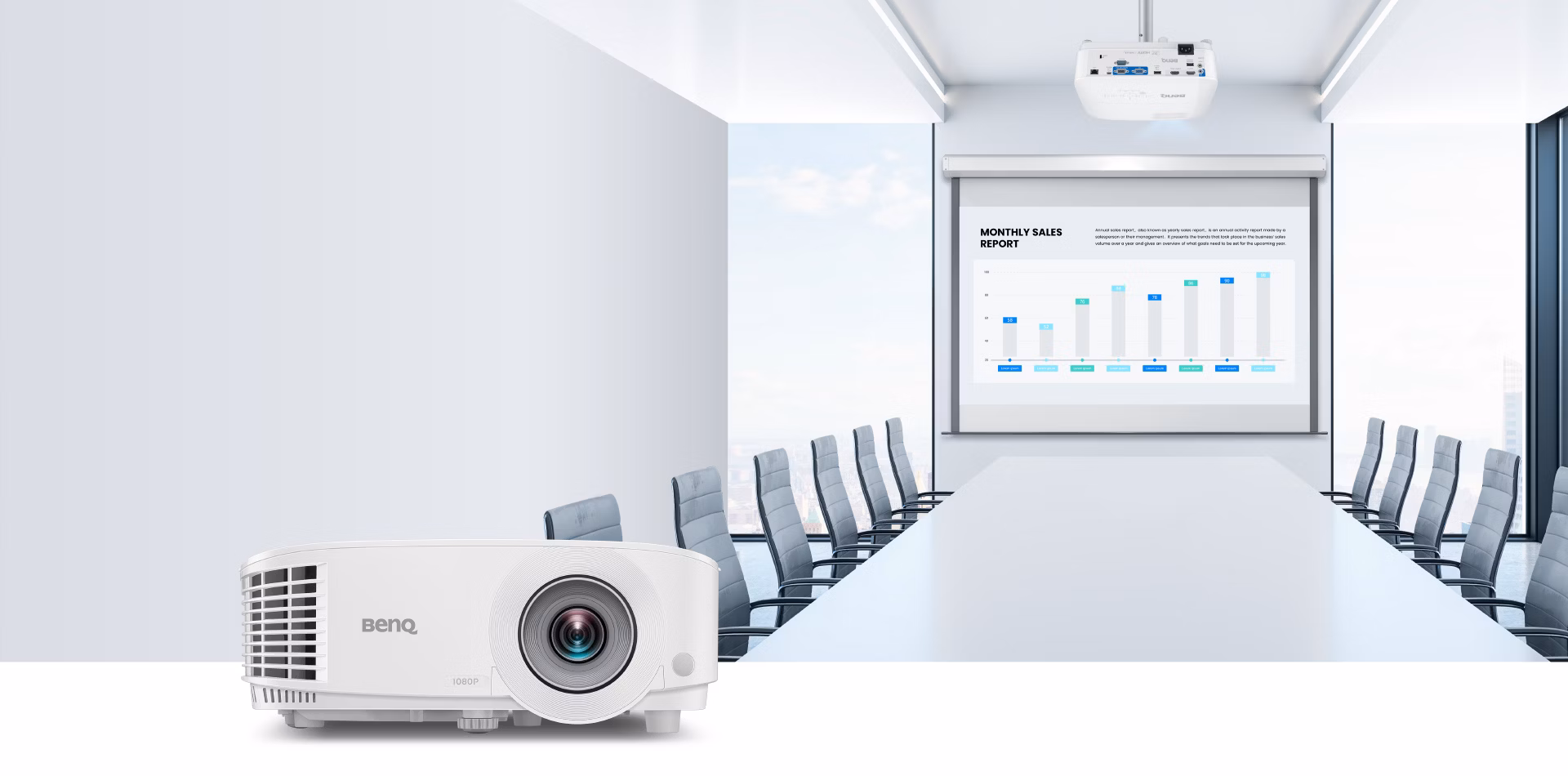

BenQ MH733 1080p · DLP	1080p	DLP	4,000	$919.99 +$421	Compare
