InFocus IN2009UT
| Brand | InFocus · Quantum Laser |
| Type | Education |
| Released | September 2025 |
| Resolution | WUXGA |
| Imaging technology | 3LCD |
| Light source | Laser (phosphor) |
| Claimed brightness (non-standard) | 4,100 lm |
| Throw ratio | 0.24:1 |
A WUXGA (1920x1200) 3LCD ultra short throw laser projector for classrooms and meeting rooms, rated at 4,100 lumens with a 0.235:1 throw ratio that gives an 80 to 120 inch image from under 0.6 m. It has two HDMI inputs, VGA in and out, RJ45 and RS-232 control with Crestron, AMX and PJLink support, a 16 W mono speaker and 360-degree installation.
Data sheet
| Claimed brightness (non-standard) | 4,100 lm | |
| Brightness uniformity | 80% | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.64 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 30,000 h max | |
| Light output control | Continuous |
Optics
| Throw ratio | 0.24:1100″ · 0.51 m | |
| Aperture (f-number) | 2.94 | |
| Focus | Manual | |
| Vertical keystone | 5° | |
| Horizontal keystone | 5° | |
| Corner correction | 8-point | |
| Grid warp | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI | |
| Other video inputs | VGA | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232 | |
| Control-system drivers | Crestron, AMX |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 16 W | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 470 × 410 × 166 mm | |
| Weight | 8,500 g | |
| Orientations | 360° |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 3,000 m | |
| Power draw | Max 270 W · Normal 270 W · Eco 180 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 37 dB(A) · Eco 30 dB(A) |
Safety & support
| Risk group | RG2 | |
| Marks | CE, FCC, CCC | |
| User manual | projectorcentral.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, HDMI cable |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

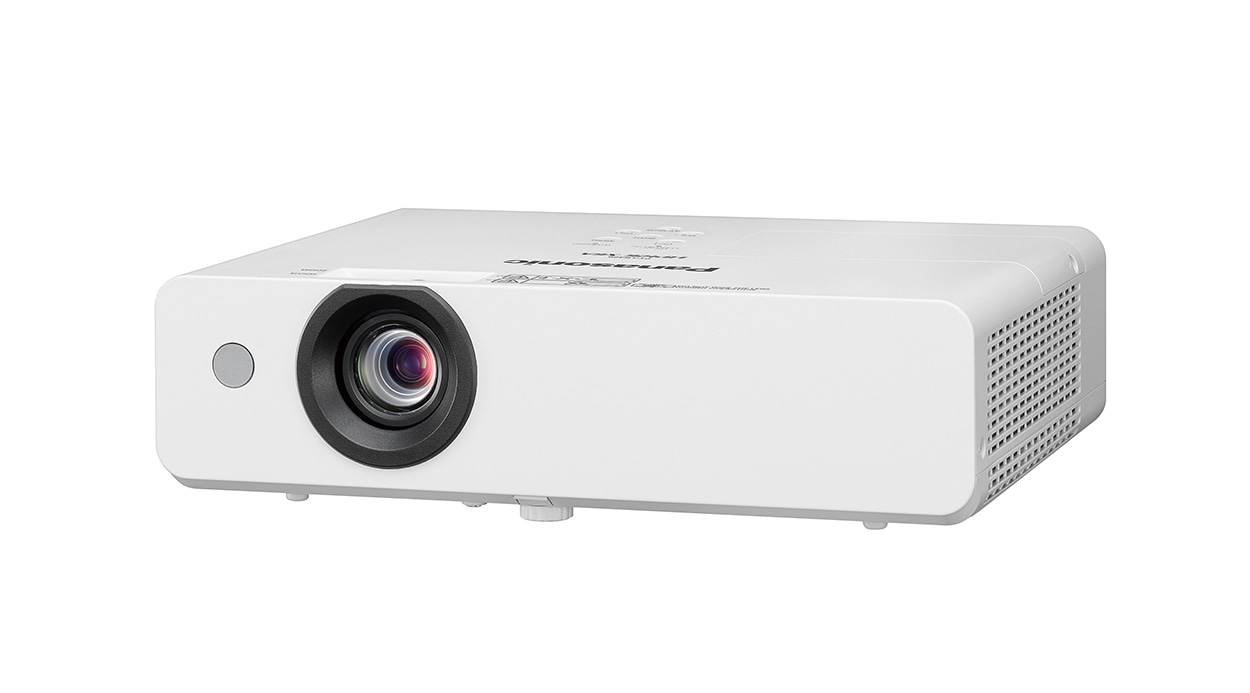

Panasonic PT-LB426 1024 × 768 · 3LCD | 1024 × 768 | 3LCD | 4,100 | — | Compare |
Epson PowerLite 760W WXGA · 3LCD | WXGA | 3LCD | 4,100 | $840 | Compare |
Epson BrightLink 760Wi WXGA · 3LCD | WXGA | 3LCD | 4,100 | $1,020 | Compare |
Epson PowerLite 994F 1080p · 3LCD | 1080p | 3LCD | 4,100 | $1,238 | Compare |
Epson BrightLink 770Fi 1080p · 3LCD | 1080p | 3LCD | 4,100 | $2,637 | Compare |
Epson PowerLite 770F 1080p · 3LCD | 1080p | 3LCD | 4,100 | $2,247 | Compare |
