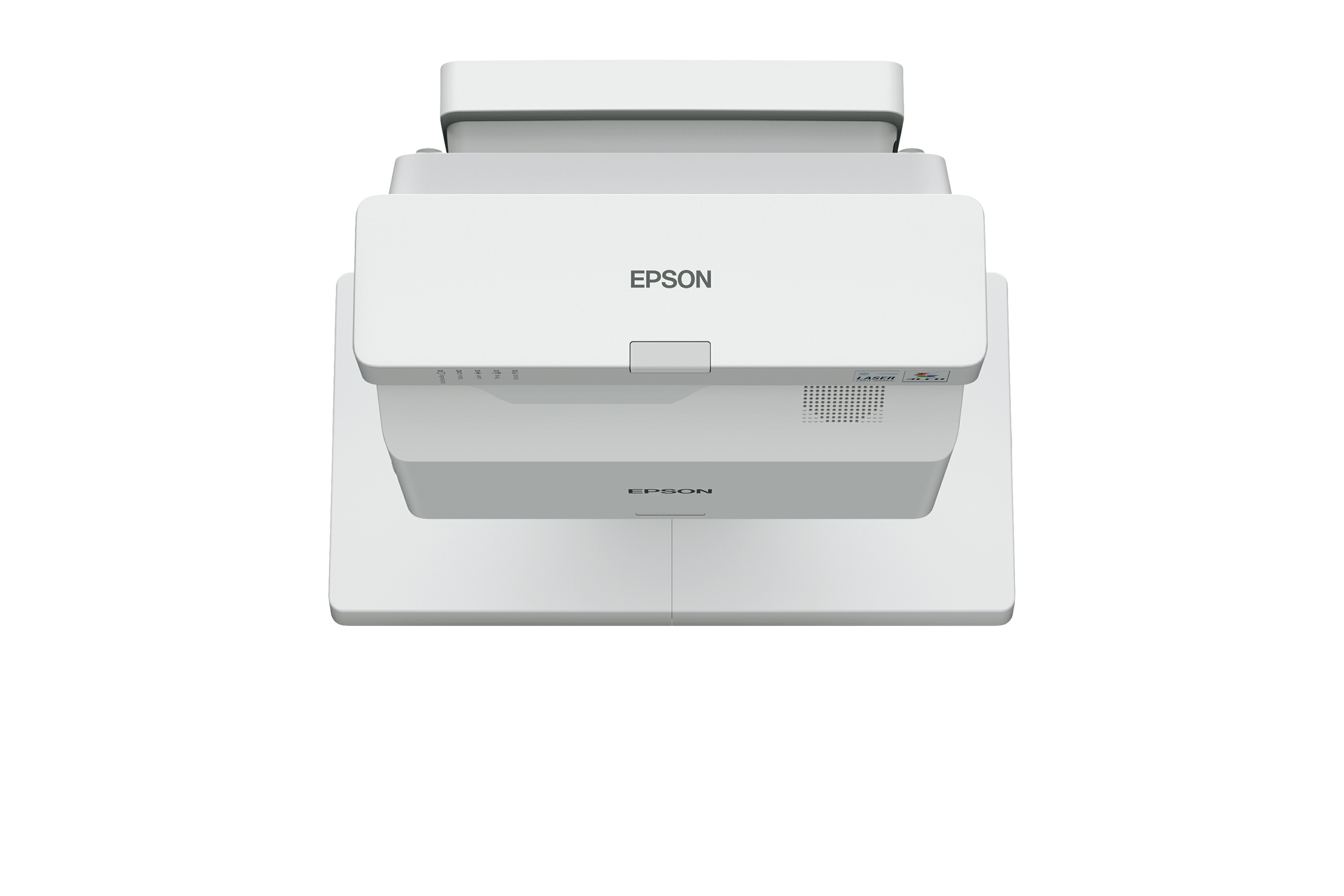

Epson BrightLink 770Fi

Brand	Epson · BrightLink
Type	Education
Released	March 2023
Resolution	1080p
Imaging technology	3LCD
Light source	Laser (phosphor)
Brightness	4,100 lm ISO
Throw ratio	0.25–0.35:1

An interactive ultra-short-throw 3LCD laser projector with three 0.62-inch 1080p panels, rated 4,100 lumens in both white and color brightness. It projects a 65 to 100 inch 16:9 interactive image from a 0.25 to 0.35 throw ratio, supports 21:9 and 16:6 screens, and ships with two pens plus an optional finger-touch module. It is aimed at classrooms and meeting rooms and includes PC-free whiteboarding.

Data sheet


White light output	4,100 lm ISO (Normal power) Normal Light Source mode	Normal Light Source mode
Colour light output	4,100 lm (Normal power) Normal Light Source mode; IDMS 15.4 per the maker footnote	Normal Light Source mode; IDMS 15.4 per the maker footnote
Brightness by mode	Normal 4,100 lm · Eco 2,800 lm
Eco brightness	68%Derived
Imaging technology	3LCD
Chip / panel diagonal	0.62 in
Panel alignment	Whole-image
Native resolution	1080p (1920 × 1080)
Native aspect	16:9Derived
Dynamic contrast	Up to 2,500,000:1

Light source

Light source	Laser (phosphor)
Light-source life	20,000 h normal · 30,000 h eco
Life defined as	50% brightness
Light output control	Continuous
Constant brightness mode	Yes

Optics

Throw ratio	0.25–0.35:1100″ · 0.55–0.77 m
Image size	65–100 in
Zoom	Digital
Focal length	3.7 mm
Aperture (f-number)	1.6
Focus	Manual
Vertical keystone	3°
Horizontal keystone	3°
Corner correction	4-corner
Grid warp	Yes

Inputs & control

HDMI inputs	3 × HDMI
Other video inputs	VGA, Composite
Max input resolution	4K UHD
Audio inputs	3.5 mm, Microphone
Control ports	RS-232
Control-system drivers	Crestron

Smart platform

Wi-Fi	Wi-Fi 5
Ethernet	Yes
Casting	Miracast

Audio

Speaker power	16 W
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	356 × 395 × 133 mm
Weight	6,000 g
Orientations	Table, Ceiling, Rear
Dust filter	Replaceable

Environment & power

Operating temperature	0–40°C
Operating humidity	20–80%RH
Altitude	3,048 m · high-altitude mode
Power draw	Normal 277 W · Eco 208 W
Standby	0.5 W
Networked standby	2 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 37 dB(A) · Eco 27 dB(A)

Safety & support

Laser class	Class 1
Marks	FCC, UL
Warranty	🇺🇸 US 3 yr
User manual	files.support.epson.com
Spare parts	Air filter V13H134A60 · Mount V12HA06A05

In the box

Power cord, Remote, Remote batteries, Quick start guide, USB cable
