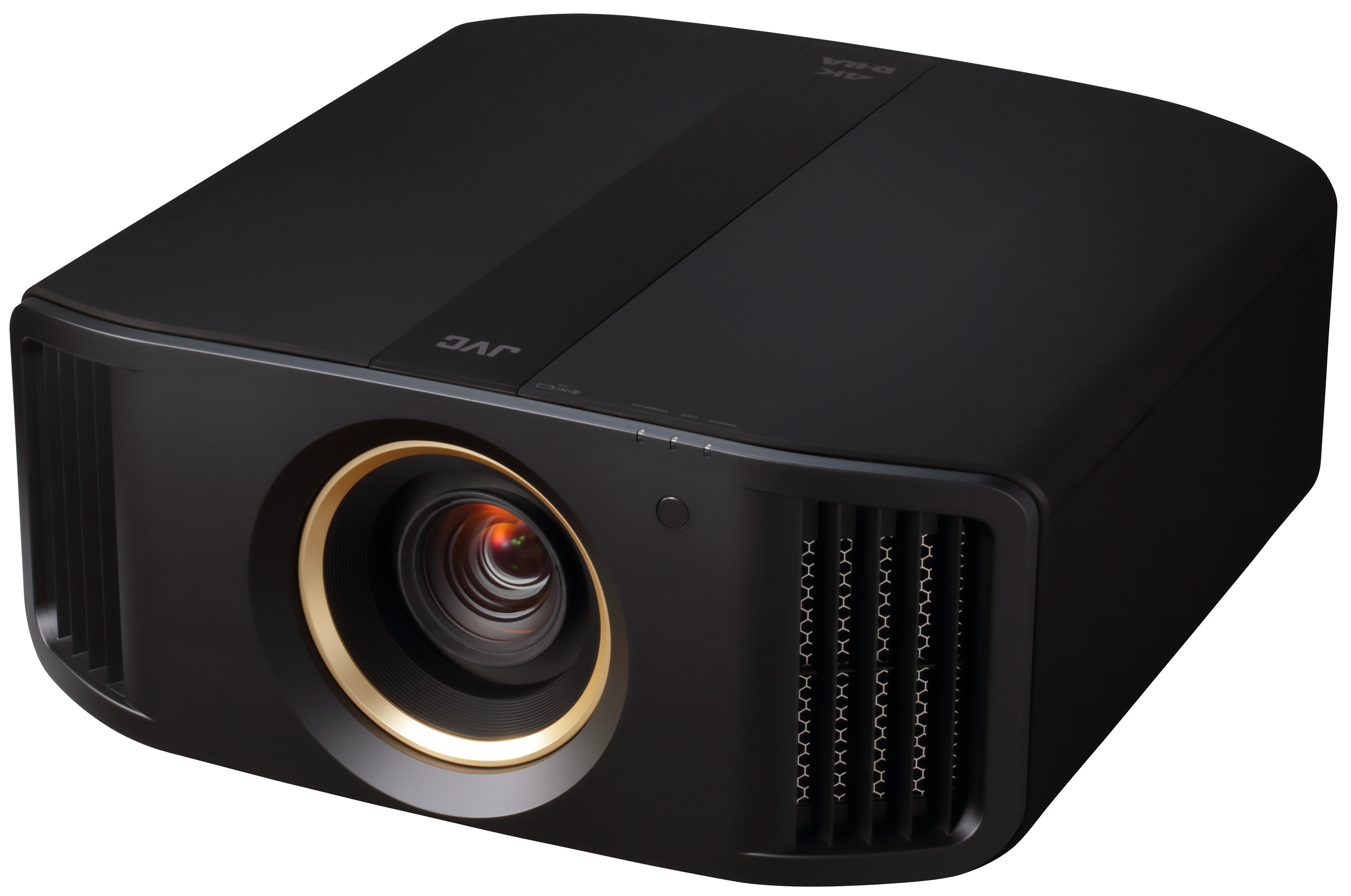

JVC DLA-RS1100
| Brand | JVC · Reference Series |
| Type | Home cinema |
| Status | Discontinued |
| Released | April 2022 |
| Resolution | DCI 4K |
| HDR formats | HDR10, HDR10+, HLG |
| Imaging technology | LCoS |
| Light source | Lamp |
| Claimed brightness (non-standard) | 1,900 lm |
| Native contrast (on/off) | 40,000:1 |
| Throw ratio | 1.43–2.91:1 |
A lamp-based native 4K D-ILA home cinema projector with a 2x motorised all-glass lens and two HDMI 2.1 inputs. It suits dedicated rooms where black level matters more than light output.
Data sheet
| Claimed brightness (non-standard) | 1,900 lm | |
| Imaging technology | LCoS | |
| Chip / panel diagonal | 0.69 in | |
| Native resolution | DCI 4K (4096 × 2160) | |
| Native aspect | 17:9Derived | |
| Native contrast (on/off) | 40,000:1 | |
| Dynamic contrast | 400,000:1 | |
| Dynamic contrast method | Dynamic iris | |
| Manual iris | Yes | |
| Colour bit depth (per channel) | 12 bit | |
| HDR formats | HDR10, HDR10+, HLG | |
| Tone mapping | Dynamic | |
| Tone mapping (maker name) | Frame Adapt HDR | |
| Colour management (CMS) | 6-axis | |
| Auto-calibration | Sensor supported | |
| Picture certifications | ISF, Filmmaker Mode | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom |
Light source
| Light source | Lamp | |
| Lamp power | 265 W | |
| Replacement lamp | PK-L2618U | |
| Light-source life | 4,500 h eco | |
| Cool-down time | About 60 s |
Optics
| Throw ratio | 1.43–2.91:1100″ · 3.21–6.53 mDerived | |
| Image size | 60–200 in | |
| Zoom | Optical | |
| Zoom ratio | 2.03×Derived | |
| Focus | Motorised | |
| Vertical lens shift | ±80% | |
| Horizontal lens shift | ±34% | |
| Motorised lens shift | Yes | |
| Lens memory slots | 10 | |
| Lens elements | 17 | |
| Lens material | Glass |
Motion & gaming
| Frame interpolation at 4K | Yes | |
| Max input refresh | 1080p: 120 Hz · 4K UHD: 120 Hz · DCI 4K: 120 Hz |
Inputs & control
| HDMI inputs | 2 × HDMI 2.1 (HDCP 2.3, 48 Gbps) | |
| Max input resolution | DCI 4K | |
| Control ports | RS-232, 12 V trigger | |
| Control-system drivers | Control4 |
Smart platform
| Ethernet | Yes |
Audio
Physical & installation
| Dimensions (W × D × H) | 500 × 495 × 234 mm | |
| Weight | 19,200 g |
Environment & power
| Operating temperature | 5–35°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 1,524 m | |
| Power draw | 420 W | |
| Standby | 0.3 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Eco 24 dB(A) |
Safety & support
| Marks | FCC | |
| Warranty | 🇺🇸 US 3 yr | |
| User manual | manuals.jvckenwood.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, Warranty card, Lens cap |
Reviews
Articles
| Date | Title | Publication |
|---|---|---|
| June 20, 2022 | JVC DLA-RS1100 4K D-ILA Projector Review Projector Reviews · June 20, 2022 | Projector Reviews |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

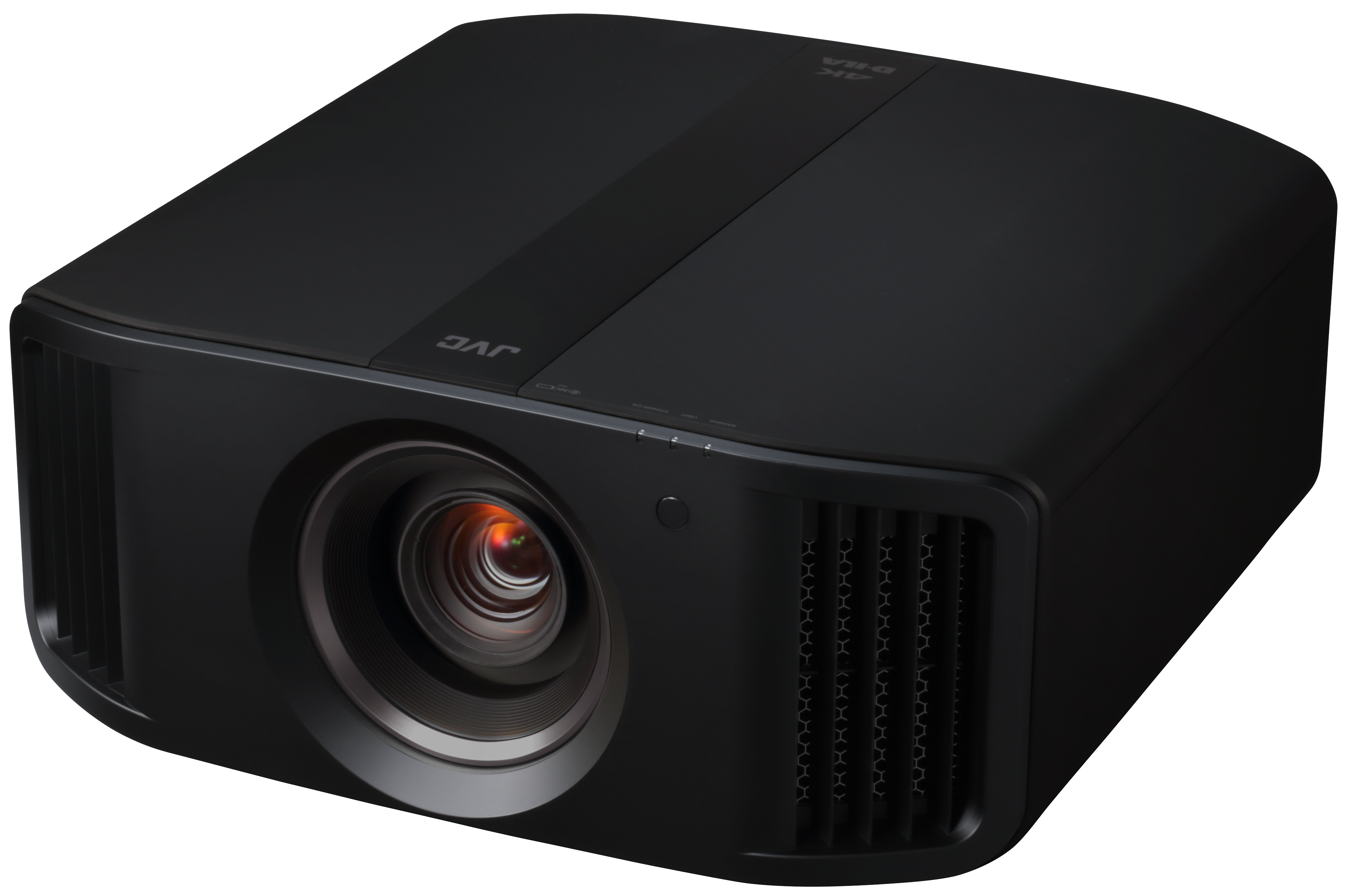

JVC DLA-NP5 DCI 4K · LCoS | DCI 4K | LCoS | 1,900* | $5,999.95 | Compare |

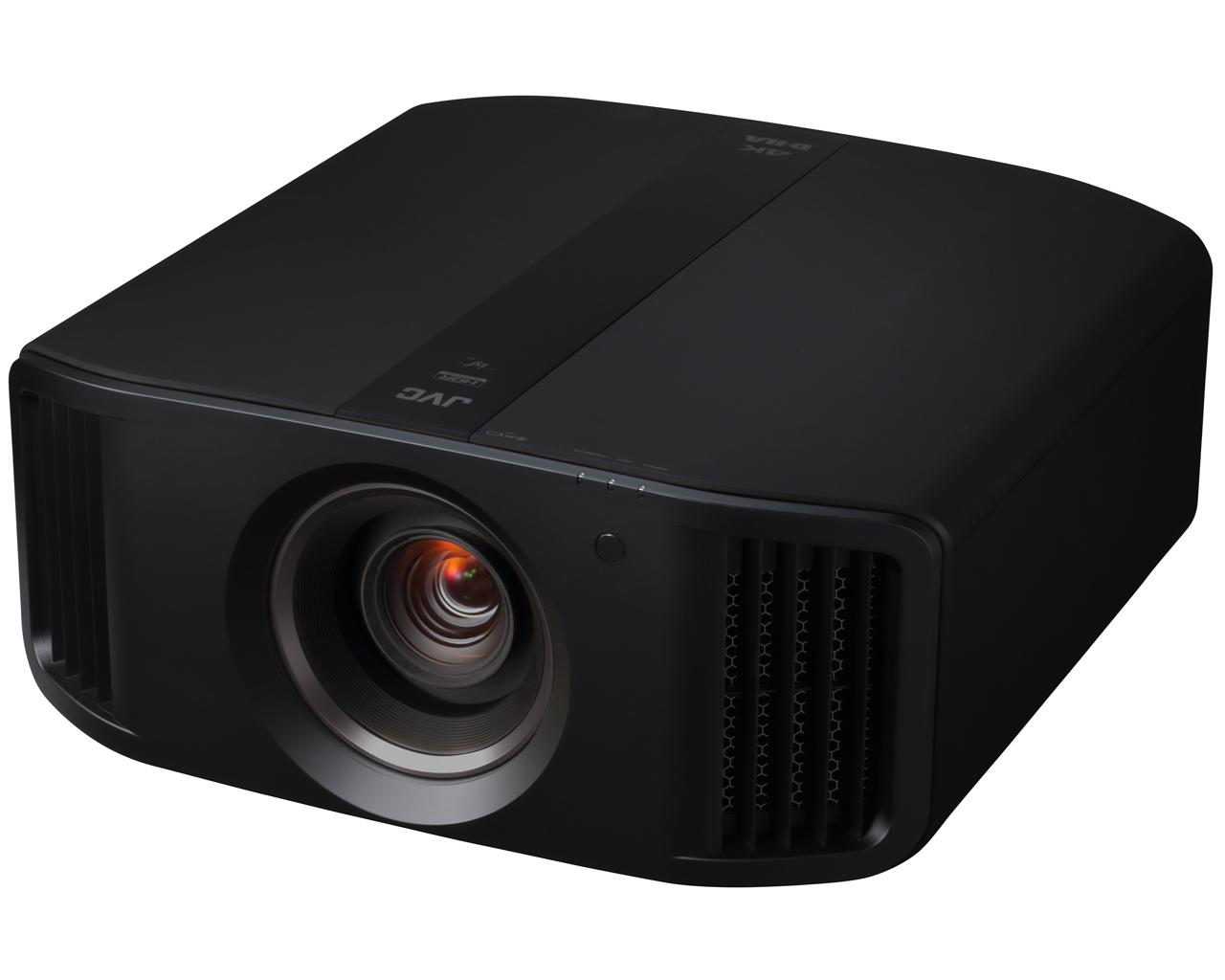

JVC DLA-NX7 DCI 4K · LCoS | DCI 4K | LCoS | 1,900* | $8,999.95 +$3,000 | Compare |
JVC DLA-RS2000 DCI 4K · LCoS | DCI 4K | LCoS | 1,900* | $8,999 +$2,999 | Compare |
Nebula Cosmos Laser 1080p · DLP | 1080p | DLP | 1,840 −60 | $1,099 −$4,901 | Compare |
Sony VPL-HW45ES 1080p · LCoS | 1080p | LCoS | 1,800* −100 | $1,999 −$4,001 | Compare |
Sony VPL-HW65ES 1080p · LCoS | 1080p | LCoS | 1,800 −100 | $3,999 −$2,001 | Compare |
;fill-opacity:1;'%20d='M%20112.03125%2097.964844%20L%20138.898438%2097.964844%20L%20169.914062%201.007812%20L%20145.558594%201.007812%20L%20125.46875%2064.109375%20L%20105.371094%201.007812%20L%2081.042969%201.007812%20Z%20M%20112.03125%2097.964844%20'/%3e%3cpath%20style='%20stroke:none;fill-rule:nonzero;fill:rgb(99.607843%25,0.392157%25,0%25);fill-opacity:1;'%20d='M%20248.660156%2076.714844%20L%20248.660156%2060.359375%20L%20225.6875%2060.359375%20L%20225.6875%2076.714844%20L%20197.230469%2076.714844%20L%20197.230469%2022.296875%20L%20225.6875%2022.296875%20L%20225.6875%2038.625%20L%20248.660156%2038.625%20L%20248.660156%2018.074219%20L%20248.640625%2018.074219%20C%20248.640625%2015.941406%20248.492188%2013.882812%20248.191406%2011.847656%20C%20247.375%206.046875%20242.65625%201.539062%20236.882812%200.691406%20C%20235.003906%200.429688%20233.125%200.308594%20231.1875%200.308594%20L%20191.71875%200.308594%20C%20189.78125%200.308594%20187.886719%200.429688%20186.03125%200.691406%20C%20180.25%201.539062%20175.527344%206.046875%20174.699219%2011.847656%20C%20174.414062%2013.882812%20174.253906%2015.941406%20174.253906%2018.074219%20L%20174.253906%2080.929688%20C%20174.253906%2083.046875%20174.414062%2085.109375%20174.699219%2087.140625%20C%20175.527344%2092.960938%20180.25%2097.421875%20186.03125%2098.289062%20C%20187.886719%2098.550781%20189.78125%2098.671875%20191.71875%2098.671875%20L%20231.1875%2098.671875%20C%20233.125%2098.671875%20235.003906%2098.550781%20236.882812%2098.289062%20C%20242.65625%2097.421875%20247.375%2092.960938%20248.191406%2087.140625%20C%20248.492188%2085.109375%20248.640625%2083.046875%20248.640625%2080.929688%20L%20248.660156%2080.917969%20Z%20M%20248.660156%2076.714844%20'/%3e%3cpath%20style='%20stroke:none;fill-rule:nonzero;fill:rgb(99.607843%25,0.392157%25,0%25);fill-opacity:1;'%20d='M%200.214844%2076.714844%20L%200.214844%2058.25%20L%2023.171875%2058.25%20L%2023.171875%2076.714844%20L%2051.65625%2076.714844%20L%2051.65625%201.011719%20L%2074.617188%201.011719%20L%2074.617188%2080.929688%20C%2074.617188%2083.046875%2074.445312%2085.109375%2074.164062%2087.140625%20C%2073.332031%2092.960938%2068.605469%2097.421875%2062.832031%2098.289062%20C%2060.996094%2098.550781%2059.082031%2098.671875%2057.136719%2098.671875%20L%2017.671875%2098.671875%20C%2015.734375%2098.671875%2013.84375%2098.550781%2011.988281%2098.289062%20C%206.234375%2097.421875%201.5%2092.960938%200.664062%2087.140625%20C%200.363281%2085.109375%200.230469%2083.046875%200.230469%2080.929688%20L%200.214844%2080.917969%20Z%20M%200.214844%2076.714844%20'/%3e%3c/g%3e%3c/svg%3e)
Other
Tools
- Throw calculator — How far from the screen the DLA-RS1100 needs to sit for a given image size, set to its 1.43–2.91:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| DLA-RS1100K | All regions | MPN | DLA-RS1100K |
| DLA-RS1100E | All regions | MPN | DLA-RS1100E |
