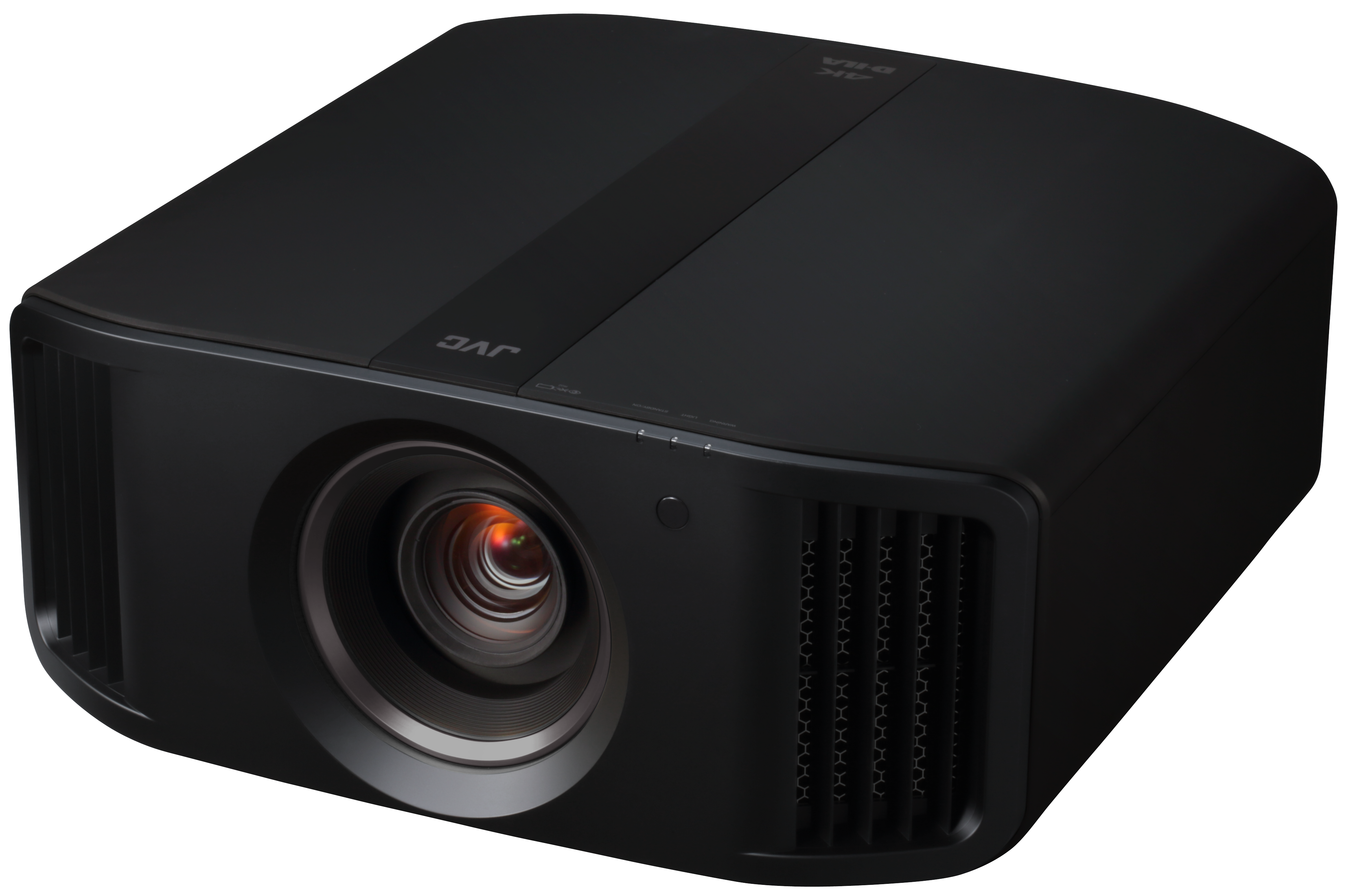

JVC DLA-NP5 vs JVC DLA-RS1100
 JVC DLA-NP5MSRP $5,999.95 |  JVC DLA-RS1100MSRP $5,999.95 | |
|---|---|---|
| Key differences | ||
| Throw ratio | 1.36–2.75:1 | 1.43–2.91:1Derived |
| Room fit | ||
| Distance to screen | 3.1–6.2 m | 3.2–6.5 m |
| Brightness | ||
| Claimed brightness (non-standard) | 1,900 lm | 1,900 lm |
| Display system | ||
| Imaging technology | LCoS | LCoS |
| Chip / panel diagonal | 0.69 in | 0.69 in |
| On-screen resolution | DCI 4K (4096 × 2160)Derived | DCI 4K (4096 × 2160)Derived |
| Native resolution | DCI 4K (4096 × 2160) | DCI 4K (4096 × 2160) |
| Native aspect | 17:9Derived | 17:9Derived |
| Contrast | ||
| Native contrast (on/off) | 40,000:1 | 40,000:1 |
| Dynamic contrast | 400,000:1 | 400,000:1 |
| Dynamic contrast method | Dynamic iris | Dynamic iris |
| Manual iris | Yes | Yes |
| Colour | ||
| Colour bit depth (per channel) | 12 bit | 12 bit |
| Gamma / EOTF presets | 2.2, 2.4, 2.6, Custom | — |
| Colour temperature presets | D93, D65, D55, Custom | — |
| HDR | ||
| HDR formats | HDR10, HDR10+, HLG | HDR10, HDR10+, HLG |
| Tone mapping | Dynamic | Dynamic |
| Tone mapping (maker name) | Frame Adapt HDR | Frame Adapt HDR |
| HDR metadata used | Uses MaxCLL | — |
| Calibration | ||
| Colour management (CMS) | 6-axis | 6-axis |
| Auto-calibration | Sensor supported | Sensor supported |
| Picture certifications | ISF, Filmmaker Mode | ISF, Filmmaker Mode |
| 3D | ||
| 3D | Yes | Yes |
| 3D formats | Frame packing, Side-by-side, Top-bottom | Frame packing, Side-by-side, Top-bottom |
| Light source | ||
| Light source | Lamp | Lamp |
| Lamp power | 265 W | 265 W |
| Replacement lamp | PK-L2618U | PK-L2618U |
| Light-source life | 4,500 h eco | 4,500 h eco |
| Life defined as | 50% brightness | — |
| Light output control | Steps | — |
| Cool-down time | 60 s | About 60 s |
| Optics | ||
| Throw ratio | 1.36–2.75:1 | 1.43–2.91:1Derived |
| Image size | 60–200 in | 60–200 in |
| Zoom | Optical | Optical |
| Zoom ratio | 2.02×Derived | 2.03×Derived |
| Focus | Motorised | Motorised |
| Vertical lens shift | ±80% | ±80% |
| Horizontal lens shift | ±34% | ±34% |
| Motorised lens shift | Yes | Yes |
| Lens memory slots | 10 | 10 |
| Lens elements | 17 | 17 |
| Lens material | Glass | Glass |
| Motion & gaming | ||
| Frame interpolation (MEMC) | Yes | — |
| Frame interpolation at 4K | — | Yes |
| Max input refresh | 1080p: 120 Hz · 4K UHD: 120 Hz · DCI 4K: 120 Hz | 1080p: 120 Hz · 4K UHD: 120 Hz · DCI 4K: 120 Hz |
| Max refresh at 1080p | 120 HzDerived | 120 HzDerived |
| Max refresh at 4K | 120 HzDerived | 120 HzDerived |
| Inputs & control | ||
| HDMI inputs | 2 × HDMI (HDCP 2.3, 48 Gbps) | 2 × HDMI 2.1 (HDCP 2.3, 48 Gbps) |
| HDMI inputs (count) | 2Derived | 2Derived |
| Newest HDMI version | — | HDMI 2.1Derived |
| Max input resolution | — | DCI 4K |
| Control ports | RS-232, 12 V trigger | RS-232, 12 V trigger |
| Control-system drivers | Control4 | Control4 |
| Smart platform | ||
| Ethernet | Yes | Yes |
| Audio | ||
| Speakers | 0 | 0 |
| Physical & installation | ||
| Dimensions (W × D × H) | 500 × 495 × 234 mm | 500 × 495 × 234 mm |
| Weight | 19,200 g | 19,200 g |
| Environment & power | ||
| Operating temperature | 5–35°C | 5–35°C |
| Operating humidity | 20–80%RH | 20–80%RH |
| Altitude | 1,524 m | 1,524 m |
| Power draw | Max 420 W · Normal 420 W | 420 W |
| Standby | 0.3 W | 0.3 W |
| Networked standby | 1.5 W | — |
| Mains input | 100–240 V · 50/60 Hz | 100–240 V · 50/60 Hz |
| Noise | ||
| Fan noise | Eco 24 dB(A) | Eco 24 dB(A) |
| Safety & compliance | ||
| Marks | FCC | FCC |
| Support & ownership | ||
| Warranty | 3 yr | 3 yr |
| User manual | https://manuals.jvckenwood.com/download/files/B5A-3961-41.pdf | https://manuals.jvckenwood.com/download/files/B5A-3961-41.pdf |
| In the box | ||
| In the box | Power cord, Remote, Remote batteries, Quick start guide, Warranty card, Lens cap | Power cord, Remote, Remote batteries, Quick start guide, Warranty card, Lens cap |
