NEC NP-VE303X
| Brand | NEC · VE Series |
| Type | Business |
| Status | Discontinued |
| Released | April 2016 |
| Resolution | 1024 × 768 |
| Imaging technology | DLP |
| Light source | Lamp |
| Brightness | 3,000 lm ISO |
| Throw ratio | 1.95–2.15:1 |
A 3,000-lumen single-chip DLP lamp projector with a 0.55-inch 1024x768 (XGA) chip and a manual 1.95-2.15:1 zoom lens. It has one HDMI input, VGA, composite video, RS-232 control, a 2 W mono speaker and DLP-Link 3D, and suits small meeting rooms and mobile presentations.
Where to buy
We earn a commission on purchases made through these links.
Data sheet
| White light output | 3,000 lm ISO · 3,000 lm ANSI | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.55 in | |
| Native resolution | 1024 × 768 | |
| Native aspect | 4:3Derived | |
| Dynamic contrast | 10,000:1 | |
| Colour bit depth (per channel) | 10 bit | |
| Picture mode memories | 2 | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential | |
| 3D glasses sync | DLP-Link |
Light source
| Light source | Lamp | |
| Lamp power | 195 W | |
| Replacement lamp | NP40LP | |
| Light-source life | 4,500 h normal · 6,000 h eco | |
| Light output control | Steps |
Optics
| Throw ratio | 1.95–2.15:1100″ · 3.96–4.37 m | |
| Image size | 30–300 in | |
| Projection offset | 115%Derived | |
| Zoom | Optical | |
| Zoom ratio | 1.1×Derived | |
| Focal length | 21.8–24 mm | |
| Aperture (f-number) | 2.41–2.55 | |
| Focus | Manual | |
| Autofocus | No | |
| Vertical keystone | 40° | |
| Interchangeable lens | No |
Inputs & control
| HDMI inputs | HDMI | |
| Other video inputs | VGA | |
| Max input resolution | WUXGA | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232 |
Audio
| Speaker power | 2 W | |
| Speakers | 1 | |
| Layout | Mono |
Physical & installation
| Dimensions (W × D × H) | 324 × 250 × 88 mm | |
| Weight | 2,600 g | |
| Orientations | Table, Ceiling, Rear |
Environment & power
| Operating temperature | 5–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | Max 237 W · Normal 232 W · Eco 192 W | |
| Standby | 0.33 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 34 dB(A) · Eco 30 dB(A) |
Safety & support
| Marks | CE, FCC, UL | |
| Warranty | 🇪🇺 EU 3 yr (light source 3 yr or 4,000 h) | |
| User manual | sharp-nec-displays.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, User manual, VGA cable | |
| Remote | IR |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Casio XJ-A252 WXGA · DLP | WXGA | DLP | 3,000* | $995 | Compare |
Casio XJ-M251 WXGA · DLP | WXGA | DLP | 3,000* | — | Compare |
Casio XJ-V2 1024 × 768 · DLP | 1024 × 768 | DLP | 3,000* | $699 | Compare |
NEC NP-M300W WXGA · 3LCD | WXGA | 3LCD | 3,000 | $1,399 | Compare |

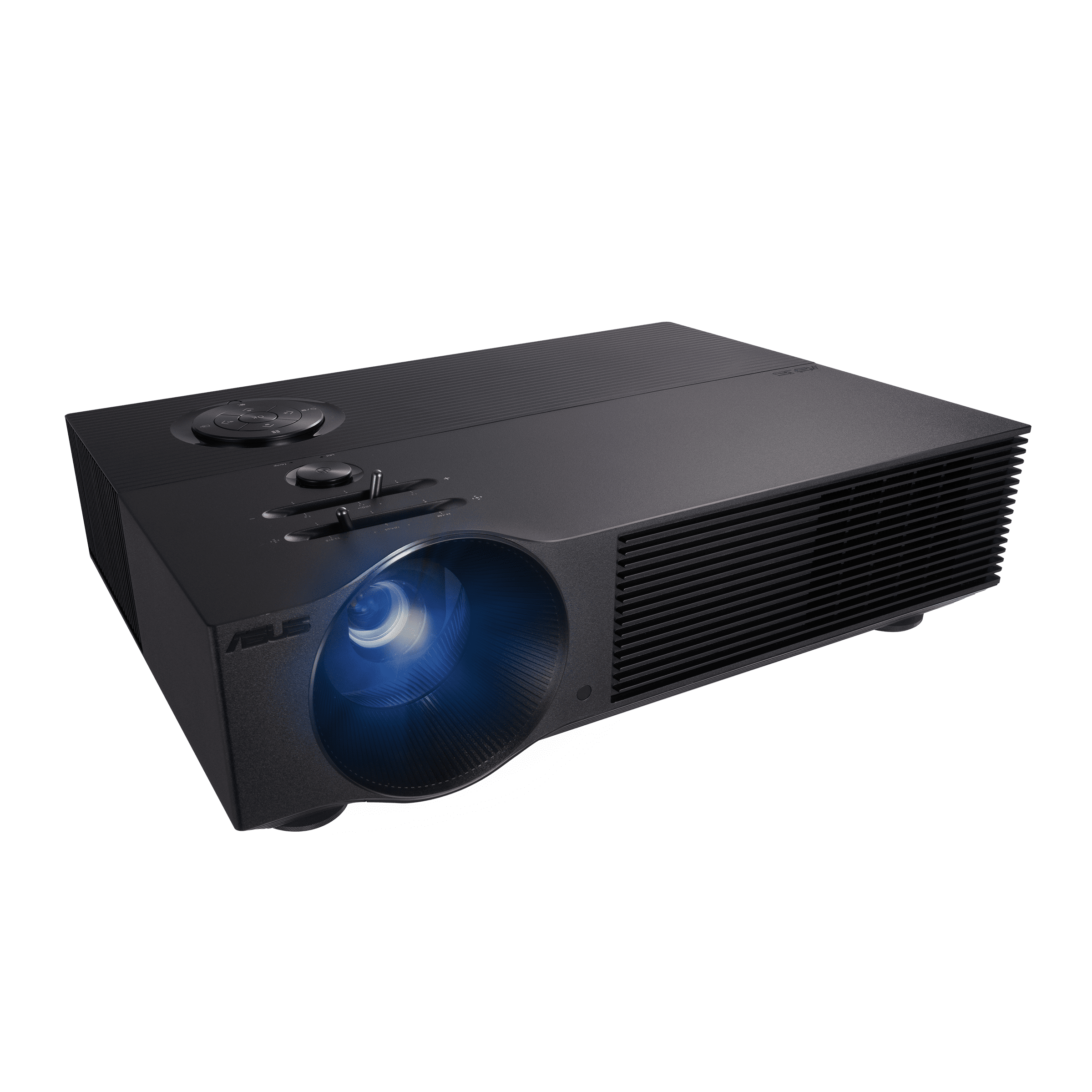

ASUS H1 1080p · DLP | 1080p | DLP | 3,000* | $999 | Compare |
