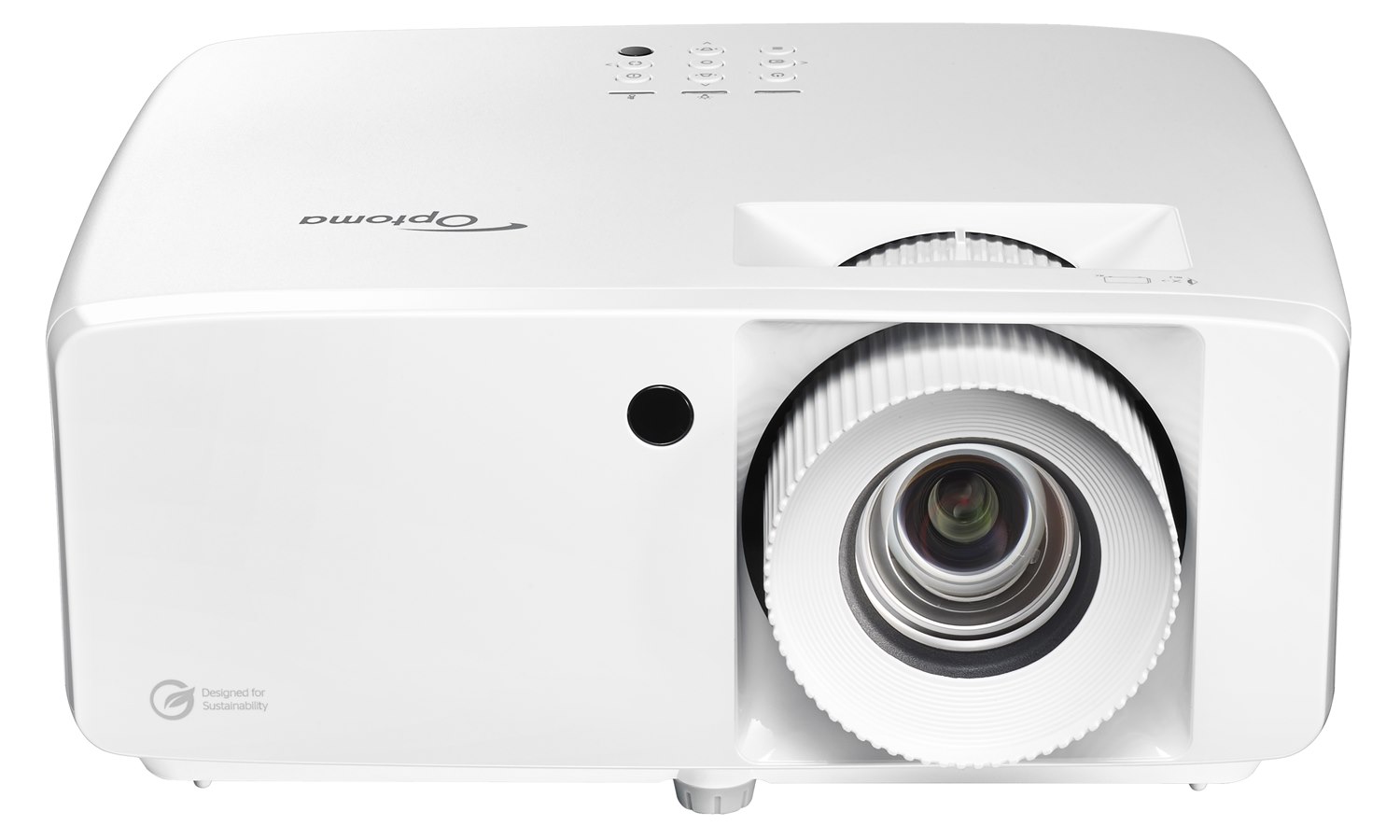

Optoma UHZ35
| Brand | Optoma |
| Type | Home cinema |
| Released | September 2024 |
| Resolution | 4K UHD (1080p pixel shift) |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Claimed brightness (non-standard) | 3,500 lm |
| Throw ratio | 1.4–2.24:1 |
| Input lag | 1080p: 240 Hz 4.4 ms · 4K UHD: 60 Hz 17 ms |
A compact DLP laser projector with a 1.6x manual zoom lens (1.4 to 2.24:1) and 3840x2160 output from a pixel-shifted 0.65-inch 1080p chip, rated at 3,500 lumens. It accepts 1080p at 240 Hz with a rated 4.4 ms input lag, and has two HDMI 2.0 inputs (one with eARC), a 15 W mono speaker and an external power supply. It has no lens shift.
Data sheet
| Claimed brightness (non-standard) | 3,500 lm | |
| Brightness uniformity | 80% | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.65 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Pixel shift | XPR 4-way | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Dynamic contrast | 500,000:1 | |
| HDR formats | HDR10, HLG | |
| 3D | Yes | |
| 3D glasses sync | DLP-Link |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 30,000 h eco | |
| Cool-down time | 90 s |
Optics
| Throw ratio | 1.4–2.24:1100″ · 3.10–4.96 m | |
| Image size | 26–303 in | |
| Projection offset | 116% | |
| Zoom | Optical | |
| Zoom ratio | 1.6×Derived | |
| Focal length | 20.91–32.62 mm | |
| Vertical keystone | 30° | |
| Horizontal keystone | 30° |
Motion & gaming
| Max input refresh | 1080p: 240 Hz · 4K UHD: 60 Hz | |
| Input lag | 1080p: 240 Hz 4.4 ms · 4K UHD: 60 Hz 17 ms |
Inputs & control
| HDMI inputs | HDMI 2.0 · HDMI 2.0 (eARC) | |
| Control ports | RS-232 |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 15 W | |
| Speakers | 1 | |
| Audio outputs | 3.5 mm, HDMI eARC | |
| HDMI audio return | eARCDerived |
Physical & installation
| Dimensions (W × D × H) | 274 × 216 × 114 mm | |
| Weight | 3,000 g | |
| Colours | White | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Ceiling mount | M4, 10 mm screws | |
| Ingress protection | IP6X (light engine) | |
| Sealed optical engine | Yes |
Environment & power
| Operating temperature | 0–40°C | |
| Altitude | 3,048 m · high-altitude mode | |
| Power draw | Max 185 W · Eco 126 W | |
| Standby | Up to 0.5 W | |
| Networked standby | Up to 2 W | |
| Power supply | External adapter | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 35 dB(A) · Eco 28 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| FDA laser notice | Notice 57 | |
| Warranty | 🇺🇸 US 1 yr ProjectorCentral; Optoma's warranty page was unreadable (403). | |
| User manual | region-resource.optoma.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide |
Reviews
Videos
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
ViewSonic PX701HDH 1080p · DLP | 1080p | DLP | 3,500 | $599 −$1,600 | Compare |

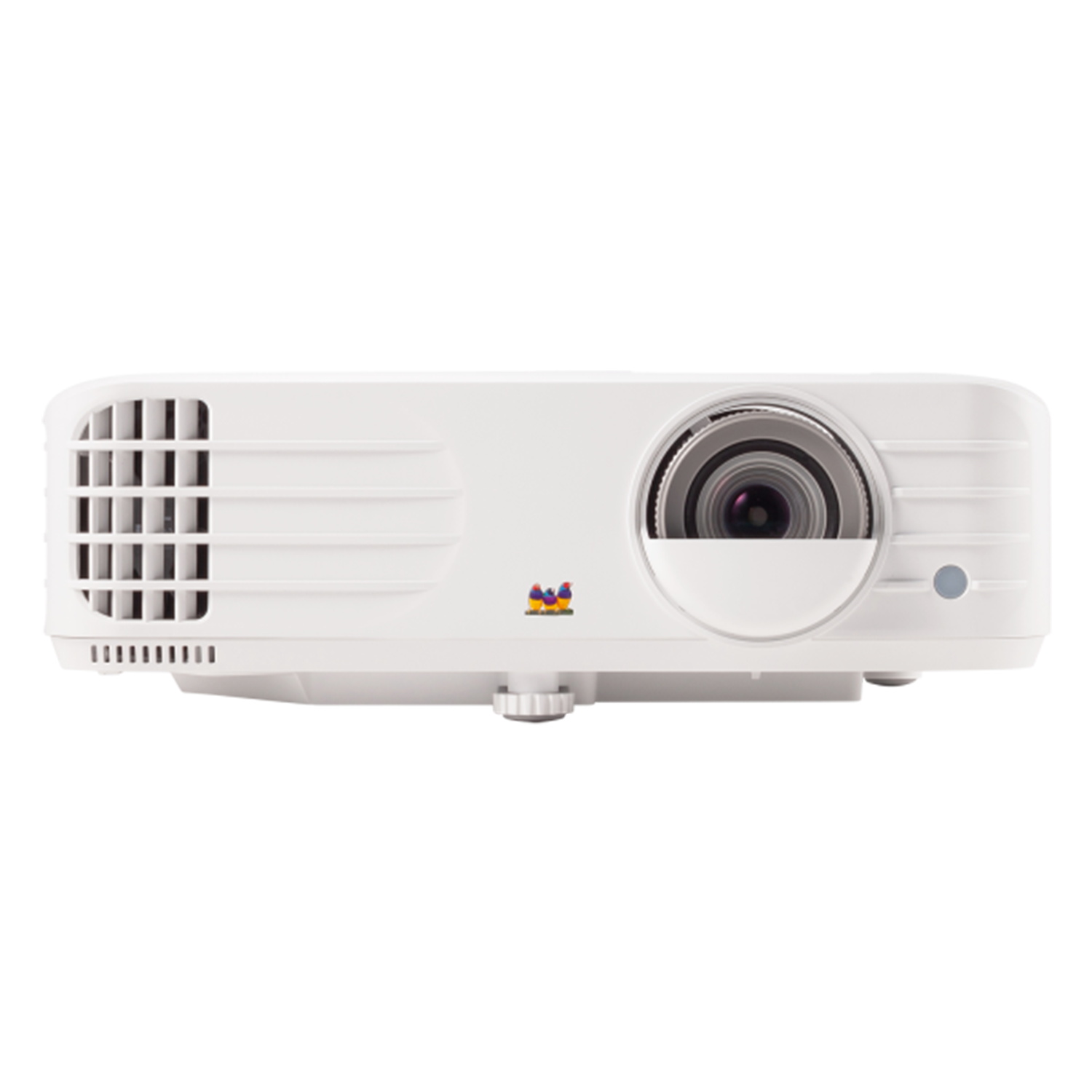

ViewSonic PX703HDH 1080p · DLP | 1080p | DLP | 3,500 | $699 −$1,500 | Compare |
ViewSonic PX747-4K 4K UHD · DLP | 4K UHD | DLP | 3,500 | $1,189 −$1,010 | Compare |
ViewSonic PX703HD 1080p · DLP | 1080p | DLP | 3,500 | $695 −$1,504 | Compare |
Goiaey GO2 1080p · Single-panel LCD | 1080p | Single-panel LCD | 3,500 | $289.99 −$1,909 | Compare |
Nebula X1 Pro 4K UHD · DLP | 4K UHD | DLP | 3,500 | $4,299 +$2,100 | Compare |
Other
Tools
- Throw calculator — How far from the screen the UHZ35 needs to sit for a given image size, set to its 1.4–2.24:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| White | 🇺🇸 US | UPC | 796435815424 |
| White (EU) | 🇪🇺 EU | EAN | 5055387668898 |
