Optoma ProScene ZU820T

Brand	Optoma · ProScene
Type	Installation
Released	October 2022
Resolution	WUXGA
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	7,400 lm ANSI
Throw ratio	1.25–2:1

A single-chip WUXGA (1920x1200) DLP laser projector for installations, with a 1.6x motorised zoom lens, full motorised lens shift and an IP5X-rated optical engine for 24/7 use. It has HDBaseT, built-in warping and edge blending, and two 10 W speakers.

Data sheet


White light output	7,400 lm ANSI
Claimed brightness (non-standard)	8,800 lm
Brightness uniformity	95%
Imaging technology	DLP
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Dynamic contrast	3,000,000:1
3D	Yes

Light source

Light source	Laser (phosphor)
Emitter	Blue laser + phosphor
Light engine	DuraCore
Light-source life	30,000 h eco

Optics

Throw ratio	1.25–2:1100″ · 2.69–4.31 m
Image size	50–300 in
Focal length	18.72–29.59 mm
Focus	Motorised
Vertical lens shift	±55%
Horizontal lens shift	±25%
Motorised lens shift	Yes
Vertical keystone	30°
Horizontal keystone	30°
Corner correction	4-corner
Grid warp	Yes

Inputs & control

HDMI inputs	2 × HDMI 2.0
Other video inputs	VGA, HDBaseT
Max input resolution	DCI 4K
Audio inputs	3.5 mm
Control ports	RS-232, Wired IR, 12 V trigger
Control-system drivers	Crestron

Smart platform

Ethernet

Yes

Audio

Speaker power	10 W
Speakers	2
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	486 × 433 × 186 mm
Weight	13,998 g
Orientations	360°
Ingress protection	IP5X (light engine)

Environment & power

Operating temperature	5–40°C
Operating humidity	10–85%RH
Power draw	Max 520 W · Eco 260 W
Standby	0.5 W
Mains input	90–264 V · 50/60 Hz
Fan noise	Max 36 dB(A) · Eco 34 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57
Marks	FCC
Warranty	🇺🇸 US 3 yr Third-party listing; Optoma's own warranty page was not read.
User manual	region-resource.optoma.com

Similar models

Model	Resolution	Tech	Lumens	Price
Sony VPL-FHZ85 WUXGA · 3LCD	WUXGA	3LCD	7,300 −100	$5,995 −$2,704	Compare

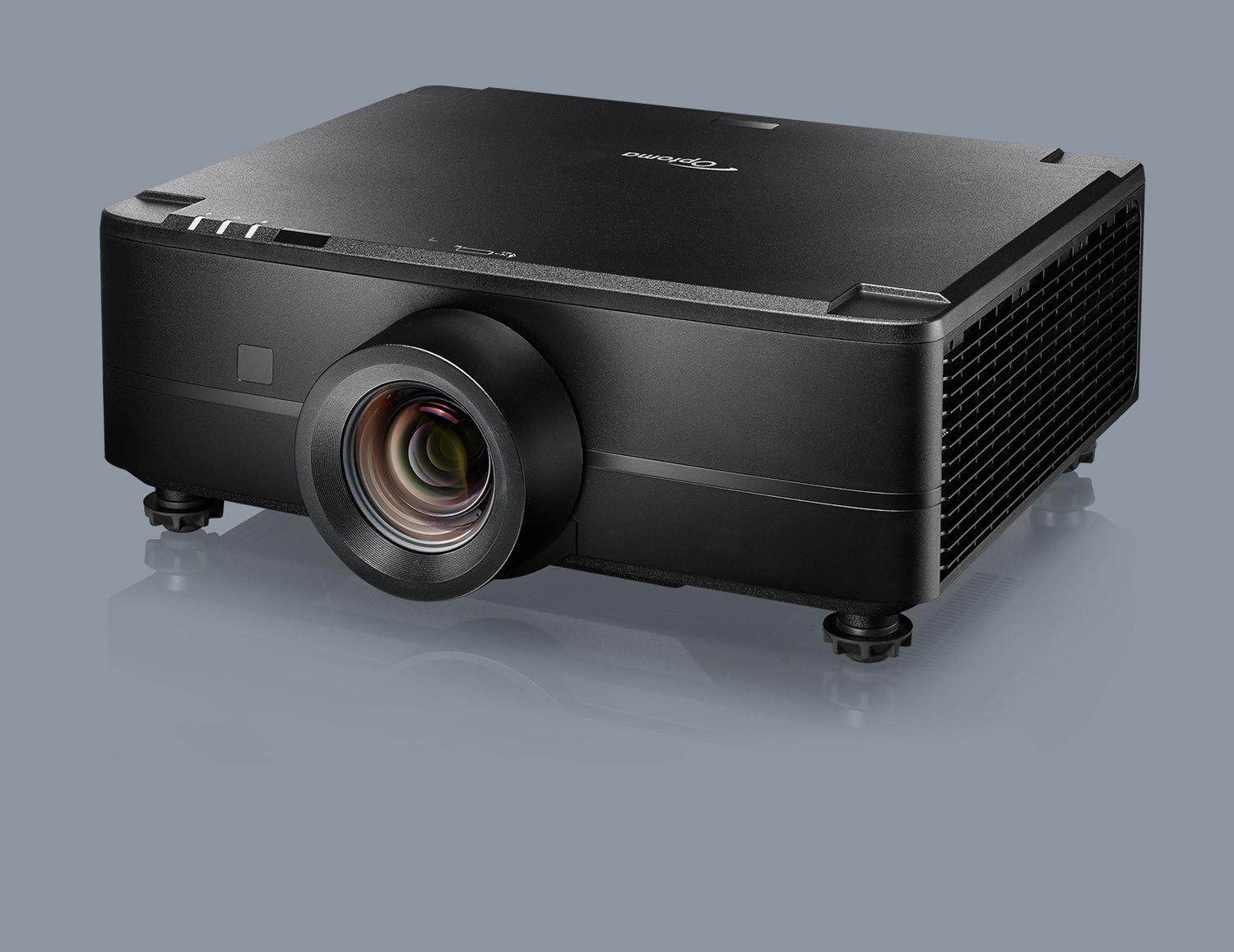

Optoma ProScene ZK810T 4K UHD · DLP	4K UHD	DLP	7,200 −200	$18,999 +$10,300	Compare

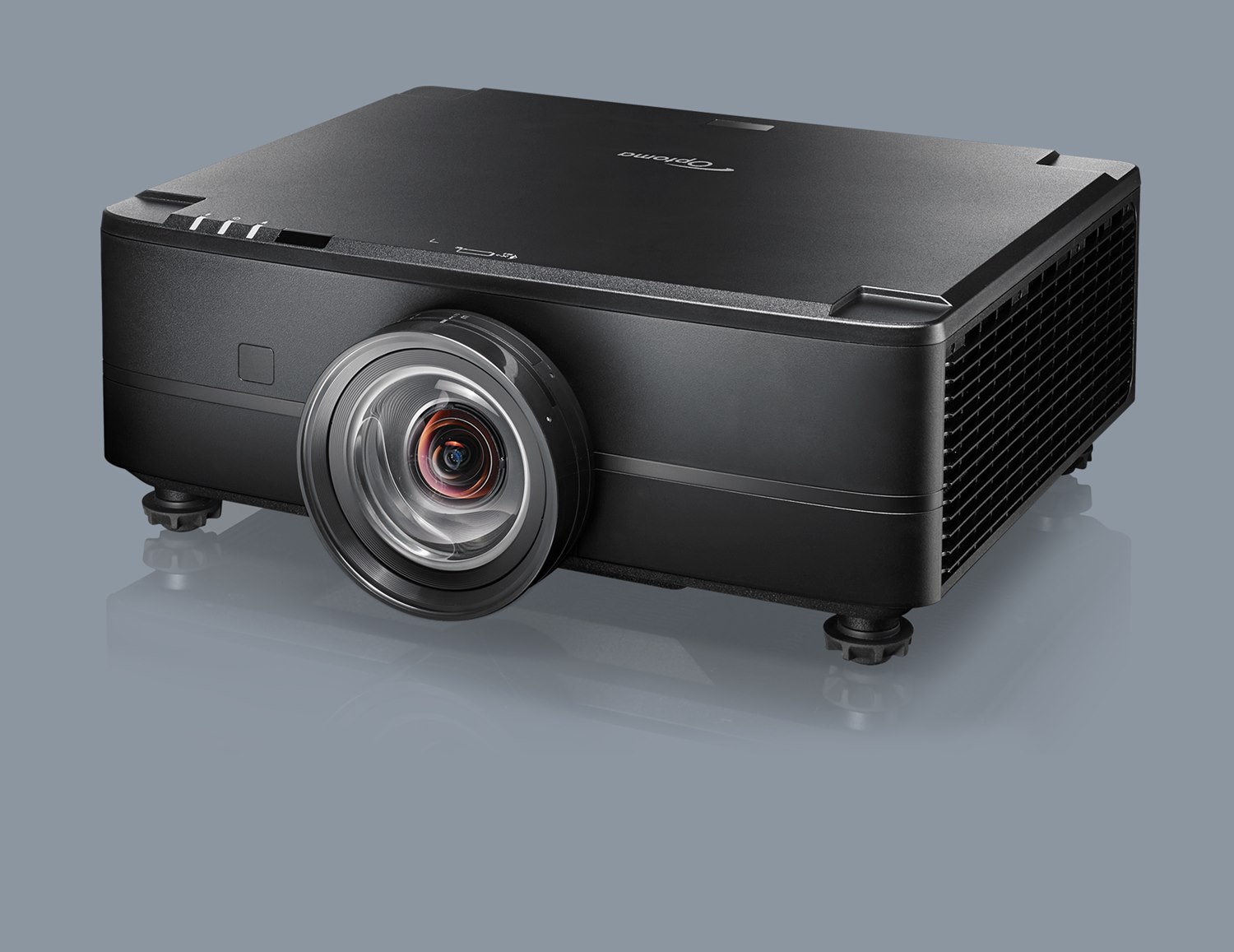

Optoma ProScene ZK810TST 4K UHD · DLP	4K UHD	DLP	7,200 −200	$23,599 +$14,900	Compare
Epson PowerLite L790SE WUXGA · 3LCD	WUXGA	3LCD	7,000 −400	$6,349 −$2,350	Compare
Epson EB-PU1007W WUXGA · 3LCD	WUXGA	3LCD	7,000 −400	$8,250 −$449	Compare
Optoma ZK708T 4K UHD · DLP	4K UHD	DLP	7,000* −400	$7,499 −$1,200	Compare

Other

Tools

Throw calculator — How far from the screen the ProScene ZU820T needs to sit for a given image size, set to its 1.25–2:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
Black, US	🇺🇸 US	UPC	796435446017
		EAN	5055387666245
		MPN	ZU820T
