Optoma ProScene ZK810TST

Brand	Optoma · ProScene
Type	Installation
Released	April 2024
Resolution	4K UHD
HDR formats	HDR10, HLG
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	7,200 lm ANSI
Throw ratio	0.65–0.75:1
Input lag	1080p: 60 Hz 16.9 ms · 120 Hz 8.9 ms · 240 Hz 4.5 ms · 4K UHD: 60 Hz 16.8 ms

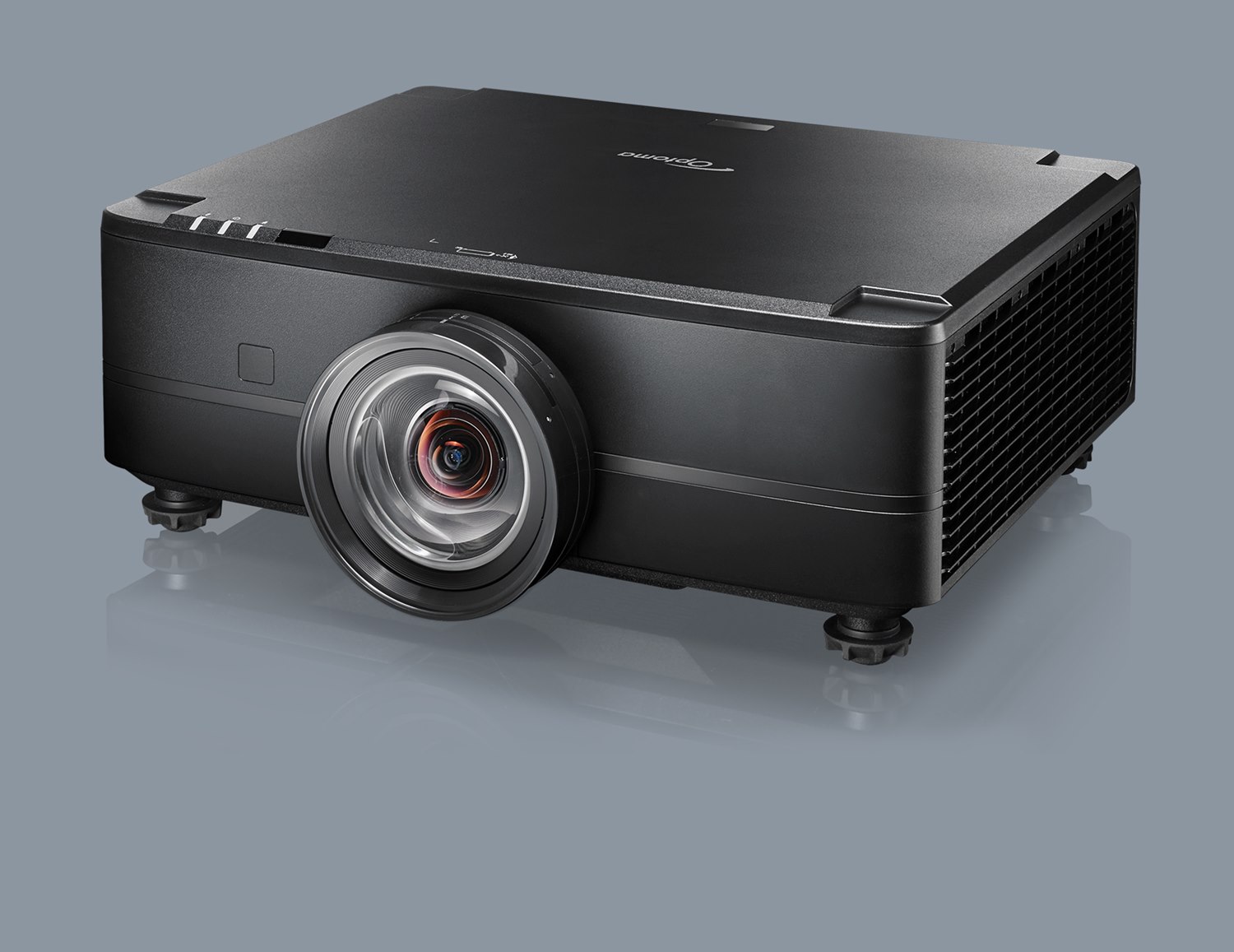

A fixed-lens 4K UHD single-chip DLP laser projector that Optoma rates at 8,500 lumens, built for large venues, museums, houses of worship and simulation. Its short-throw lens has a 0.65:1 to 0.75:1 throw ratio with motorized zoom, focus and lens shift, and it adds HDBaseT, two HDMI 2.0 inputs and an IP5X dust-resistant optical engine.

Data sheet


White light output	7,200 lm ANSI
Claimed brightness (non-standard)	8,500 lm
Brightness uniformity	95%
Imaging technology	DLP
Chip / panel diagonal	0.35 in
Native aspect	16:9Derived
Addressable resolution	4K UHD (3840 × 2160)
Dynamic contrast	3,000,000:1
Dynamic contrast method	Light-source dimming
Gamma / EOTF presets	2.2, 2.4, 2.6
HDR formats	HDR10, HLG
Colour management (CMS)	6-axis
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses sync	DLP-Link

Light source

Light source	Laser (phosphor)
Light-source life	30,000 h
Light output control	Continuous
Constant brightness mode	Yes

Optics

Throw ratio	0.65–0.75:1100″ · 1.44–1.66 m
Image size	50–1,000 in
Zoom	Optical
Zoom ratio	1.15×Derived
Focal length	9.69–11.19 mm
Aperture (f-number)	2–2.1
Focus	Motorised
Vertical lens shift	±55%
Horizontal lens shift	±25%
Motorised lens shift	Yes
Lens memory slots	5
Vertical keystone	15°
Horizontal keystone	20°
Corner correction	4-corner
Grid warp	Yes
Interchangeable lens	No

Motion & gaming

Max input refresh	1080p: 240 Hz
Input lag	1080p: 60 Hz 16.9 ms · 120 Hz 8.9 ms · 240 Hz 4.5 ms · 4K UHD: 60 Hz 16.8 ms Gaming Mode on (geometric correction disabled)	Gaming Mode on (geometric correction disabled)

Inputs & control

HDMI inputs	2 × HDMI 2.0
Other video inputs	HDBaseT
Max input resolution	4K UHD
Control ports	RS-232, 12 V trigger
PJLink	Class 2
Control-system drivers	Crestron, AMX

Smart platform

Wi-Fi	None
Ethernet	Yes

Audio

Speaker power	20 W
Speakers	2
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	486 × 429 × 185 mm
Weight	14,300 g
Colours	Black
Orientations	Portrait, 360°
Ceiling mount	M4, screws ≥ 8 mm
Ingress protection	IP5X (light engine)

Environment & power

Operating temperature	5–40°C
Operating humidity	10–85%RH
Power draw	Max 530 W · Eco 280 W
Standby	0.5 W
Power supply	Built in
Mains input	100–240 V · 50/60 Hz
Fan noise	Max 38 dB(A) · Eco 34 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57

In the box

In the box	Power cord, Remote, Remote batteries, Quick start guide
Remote	Backlit
