Epson EB-PU1007W vs Optoma ProScene ZK810TST

Epson EB-PU1007W
Epson EB-PU1007W
MSRP $8,250

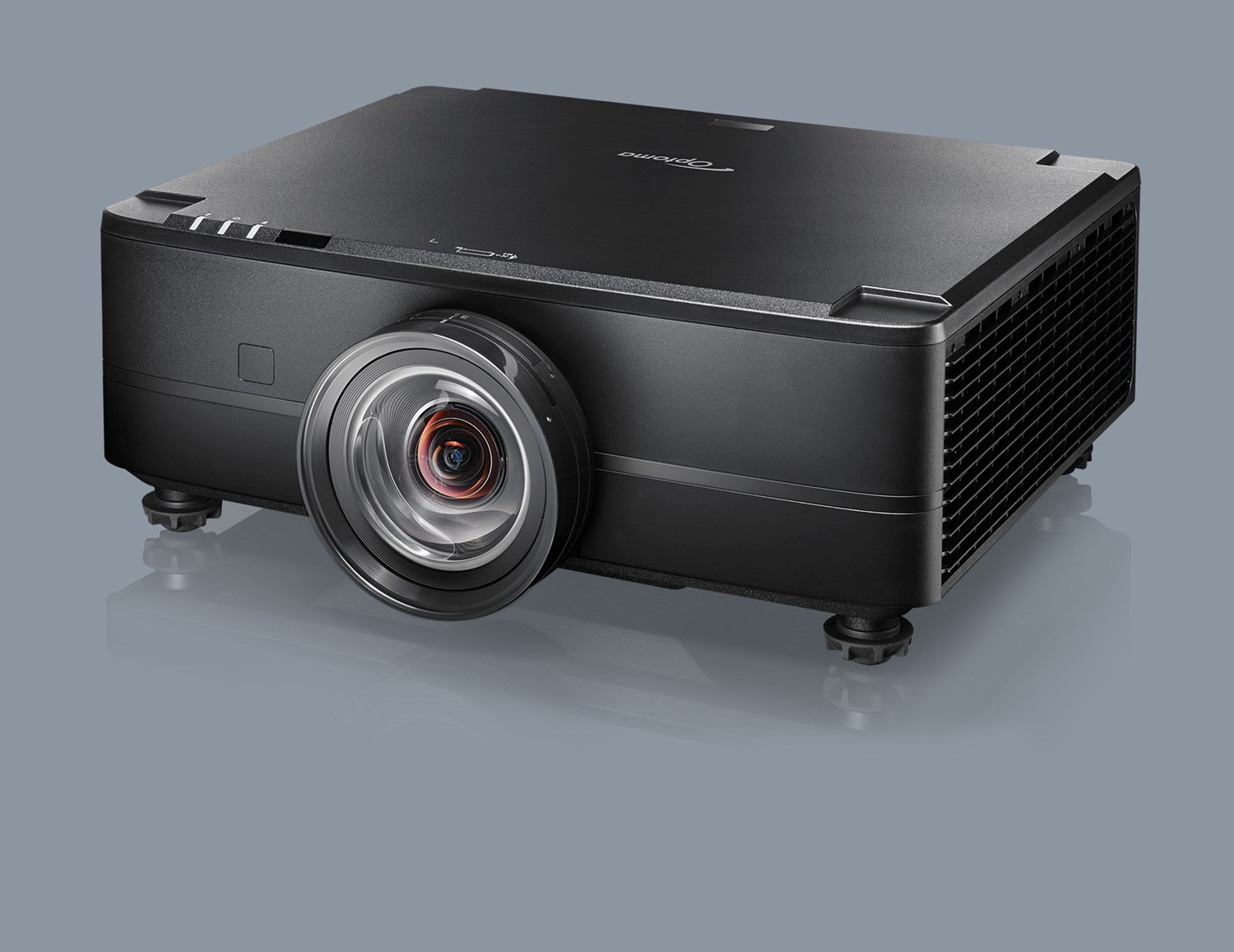

Optoma ProScene ZK810TSTOptoma ProScene ZK810TST
MSRP $23,599
Key differences
White light output7,000 lm ISO (Normal power)7,200 lm ANSI
Native resolutionWUXGA (1920 × 1200)—
Throw ratio—0.65–0.75:1
Lowest input lag—4.5 msDerived
Fan noiseNormal 33 dB(A) · Eco 29 dB(A)Max 38 dB(A) · Eco 34 dB(A)
PriceMSRP $8,250MSRP $23,599
Room fit
Distance to screen—1.4–1.7 m
Brightness
Rated brightness7,000 lmDerived7,200 lmDerived
White light output7,000 lm ISO (Normal power)7,200 lm ANSI
Colour light output7,000 lm (Normal power)—
Claimed brightness (non-standard)—8,500 lm
Brightness uniformity85%95%
Brightness by modeNormal 7,000 lm · Eco 4,900 lm—
Eco brightness70%Derived—
Display system
Imaging technology3LCDDLP
Chip / panel diagonal0.76 in0.35 in
On-screen resolutionWUXGA (1920 × 1200)Derived4K UHD (3840 × 2160)Derived
Native resolutionWUXGA (1920 × 1200)—
Native aspect16:10Derived16:9Derived
Pixel shiftYes (scheme not stated)—
Addressable resolution—4K UHD (3840 × 2160)
Contrast
Dynamic contrastOver 2,500,000:13,000,000:1
Dynamic contrast method—Light-source dimming
Colour
Gamma / EOTF presets—2.2, 2.4, 2.6
HDR
HDR formatsHDR10, HLGHDR10, HLG
Calibration
Colour management (CMS)6-axis6-axis
3D
3D—Yes
3D formats—Frame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses sync—DLP-Link
Light source
Light sourceLaser (phosphor)Laser (phosphor)
EmitterBlue laser + phosphor—
Light-source life20,000 h normal · 30,000 h eco30,000 h
Life defined as50% brightness—
Light output controlContinuousContinuous
Constant brightness modeYesYes
Optics
Throw ratio—0.65–0.75:1
Image size—50–1,000 in
Zoom—Optical
Zoom ratio—1.15×Derived
Focal length—9.69–11.19 mm
Aperture (f-number)—2–2.1
FocusMotorisedMotorised
Vertical lens shift±67%±55%
Horizontal lens shift±30%±25%
Motorised lens shiftYesYes
Lens memory slots105
Vertical keystone45°15°
Horizontal keystone30°20°
Corner correction—4-corner
Grid warpYesYes
Interchangeable lensYesNo
Motion & gaming
Frame interpolation (MEMC)Yes—
Max input refresh—1080p: 240 Hz
Max refresh at 1080p—240 HzDerived
Input lag—1080p: 60 Hz 16.9 ms · 120 Hz 8.9 ms · 240 Hz 4.5 ms · 4K UHD: 60 Hz 16.8 ms
Lowest input lag—4.5 msDerived
Input lag at 4K 60 Hz—16.8 msDerived
Inputs & control
HDMI inputsHDMI (HDCP 2.3)2 × HDMI 2.0
HDMI inputs (count)1Derived2Derived
Newest HDMI version—HDMI 2.0Derived
Other video inputs+ VGA, HDBaseTHDBaseT
Max input resolutionDCI 4K4K UHD
USB media playbackYes—
Control portsRS-232RS-232, + 12 V trigger
PJLinkClass 2Class 2
Control-system driversCrestron, AMXCrestron, AMX
Horizontal scan15–135 kHz15.38–91.15 kHz
Vertical scan23.98–60 Hz24–85 Hz
Smart platform
Wi-Fi—None
EthernetYesYes
Audio
Speaker power—20 W
Speakers—2
Audio outputs3.5 mm3.5 mm
HDMI audio returnNoneDerivedNoneDerived
Physical & installation
Dimensions (W × D × H)545 × 436 × 164 mm486 × 429 × 185 mm
Weight16,300 g14,300 g
Colours—Black
Orientations+ Table, + Ceiling, + Rear+ Portrait, + 360°
Ceiling mountM6, screws ≤ 14 mmM4, screws ≥ 8 mm
Ingress protection—IP5X (light engine)
Environment & power
Operating temperature0–45°C5–40°C
Operating humidity20–80%RH10–85%RH
Altitude3,048 m—
Power drawNormal 448 W · Eco 379 WMax 530 W · Eco 280 W
Standby0.5 W0.5 W
Networked standby2 W—
Power supply—Built in
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseNormal 33 dB(A) · Eco 29 dB(A)Max 38 dB(A) · Eco 34 dB(A)
Safety & compliance
Laser classClass 1Class 1
Risk groupRG2RG2
FDA laser noticeNotice 57Notice 57
MarksFCC—
Support & ownership
Warranty3 yr—
In the box
In the boxPower cord, Remote, Remote batteries, + User manual, + Warranty cardPower cord, Remote, Remote batteries, + Quick start guide
Remote—Backlit
