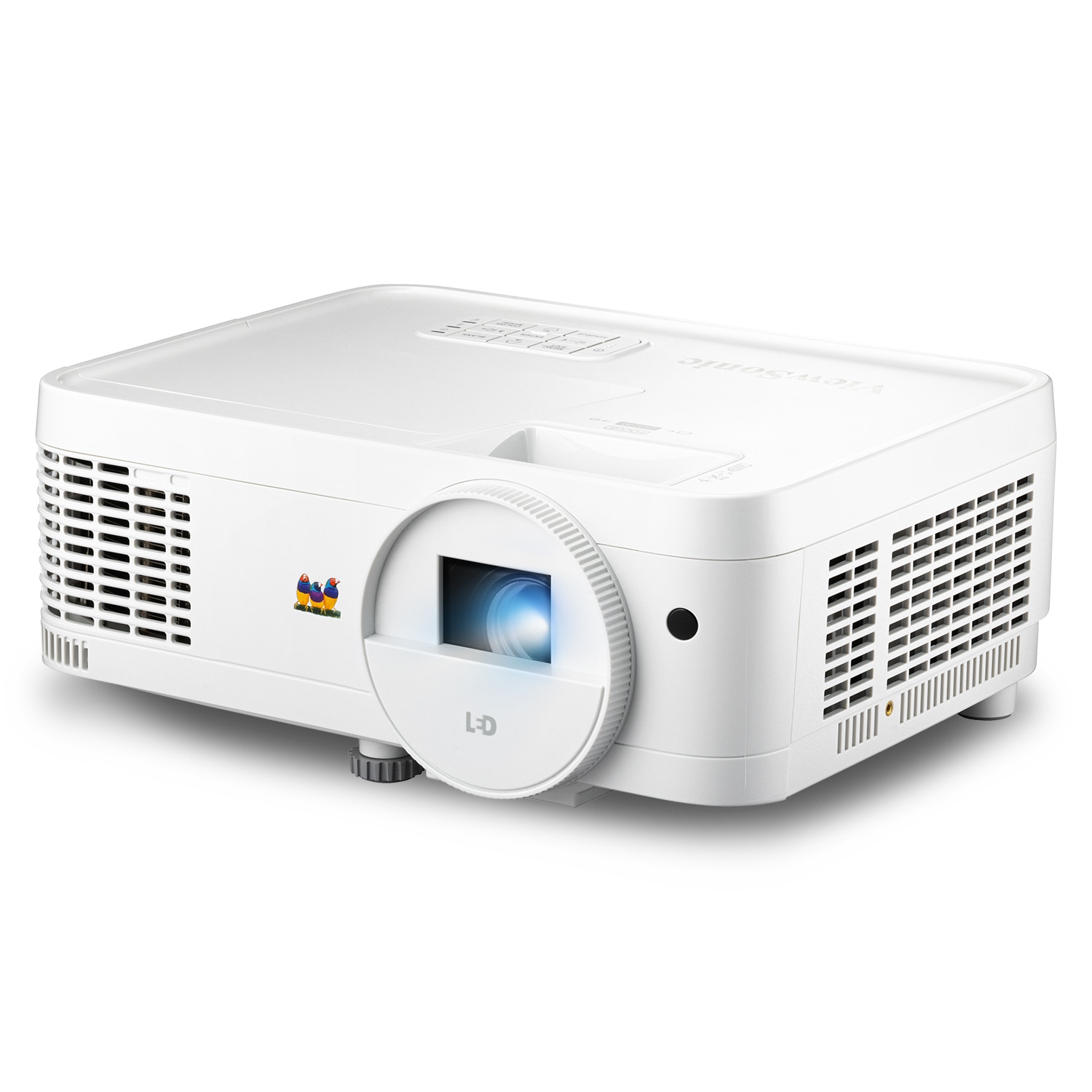

ViewSonic LS510WH-2

Brand	ViewSonic
Type	Education
Released	February 2023
Resolution	WXGA
Imaging technology	DLP
Light source	LED
Brightness	3,000 lm ANSI
Throw ratio	1.55–1.7:1

A fixed-lens LED projector with a 0.65-inch single-chip DLP device at 1280x800, rated at 3,000 ANSI lumens with a 1.1x manual zoom and a throw ratio of about 1.55 to 1.7. It has one HDMI 1.4 input, RS-232 and LAN control, a 2 W mono speaker and a 30,000-hour LED light source in a sealed optical engine, and suits classrooms and meeting rooms.

Data sheet


White light output	3,000 lm ANSI
Imaging technology	DLP
Chip / panel diagonal	0.65 in
Native resolution	WXGA (1280 × 800)
Native aspect	16:10Derived
Dynamic contrast	3,000,000:1
Dynamic contrast method	Light-source dimming
Colour gamut	Rec. 709 125%
Colour bit depth (per channel)	10 bit
Picture mode memories	2

Light source

Light source	LED
Light-source life	30,000 h

Optics

Throw ratio	1.55–1.7:1100″ · 3.34–3.66 m
Image size	30–300 in
Zoom	Optical
Zoom ratio	1.1×Derived
Focal length	22–24.1 mm
Aperture (f-number)	2.56–2.68
Focus	Manual
Autofocus	No
Vertical lens shift	None
Horizontal lens shift	None
Vertical keystone	40°
Auto keystone	No
Corner correction	None

Inputs & control

HDMI inputs	HDMI 1.4 (HDCP 1.4)
Other video inputs	None
Max input resolution	1080p
Audio inputs	3.5 mm
Control ports	RS-232
Control-system drivers	Crestron

Smart platform

Ethernet

Yes

Audio

Speaker power	2 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	293 × 221 × 115 mm
Weight	2,650 g
Orientations	Table, Ceiling, Rear, Limited tilt
Ceiling mount	M4, screws ≤ 8 mm
Dust filter	None
Ingress protection	IP5X (light engine)
Sealed optical engine	Yes

Environment & power

Operating temperature	0–40°C
Operating humidity	0–90%RH
Altitude	3,000 m · high-altitude mode
Power draw	240 W
Standby	Up to 0.5 W
Mains input	100–240 V · 50/60 Hz

Safety & support

Risk group	RG2
Marks	FCC
Warranty	🇺🇸 US 3 yr (light source 1 yr) The user guide adds a heavy-usage limit: more than 14 hours average daily use cuts cover to 1 year parts and labor and 90 days on the light source (Americas and Europe).
User manual	viewsonicglobal.com

In the box

In the box	Power cord, Remote, Quick start guide
Remote	IR
