ViewSonic LX60HD

MSRP$299.99

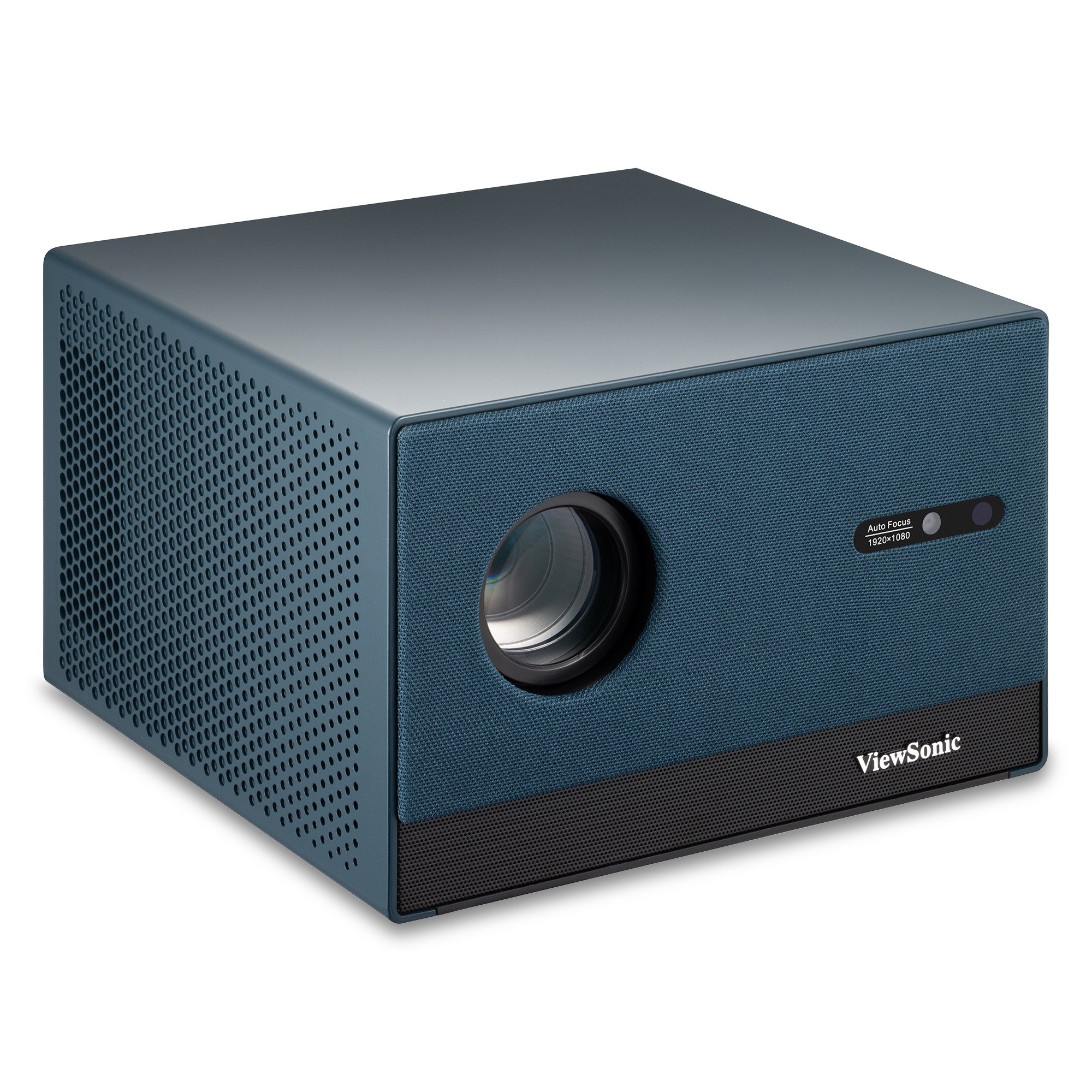

ViewSonic LX60HD smart LED projector, front three-quarter view showing the lens, auto focus camera and speaker grille

Brand	ViewSonic
Type	Lifestyle
Resolution	1080p
Imaging technology	Single-panel LCD
Light source type	LED
ANSI lumens	630 lm
Throw ratio	1.2:1

A single-LCD LED smart projector with 1080p resolution, a rated 630 ANSI lumens and a fixed 1.2:1 lens with 0.8x-1.0x digital zoom. It runs Google TV with a native Netflix app and has 5 GHz Wi-Fi, Bluetooth, one HDMI 1.4 input, two USB-A ports, two 5 W speakers and auto focus, keystone and screen fit. It suits casual streaming on a screen of 50 to 140 inches in a dim room.

Data sheet


Imaging technology	Single-panel LCD
Number of imaging devices	1
Native aspect ratio	16:9
Native resolution	1920 × 1080
Dynamic contrast	4,200:1
Colour temperature presets	D65, D93, Custom
Max refresh rate	1920×1080: 60 Hz

Optics

Throw ratio	1.2:1
Projection distance table	50″: 1.31–1.36 m · 60″: 1.59–1.61 m · 70″: 1.84–1.87 m · 80″: 2.1–2.18 m · 90″: 2.38–2.45 m · 100″: 2.62–2.71 m · 110″: 2.89–2.95 m · 120″: 3.18–3.24 m · 130″: 3.43–3.5 m · 140″: 3.71–3.79 m
Zoom type	Digital
Focus	Auto
Fixed offset	0%
F-number	2.9
Image size range	50–140 in
Vertical keystone	-40–40°
Horizontal keystone	-40–40°
Corner / warp correction	4pt

Light source

Light source type	LED
Light source detail	W-LED
Light source life	Normal: 20,000 h
ANSI lumens	630 lm ANSI	ANSI

Audio

Speaker power	10 W
Speaker count	2
Audio outputs	3.5 mm, Bluetooth
Bluetooth audio out	Yes

Inputs, control & connectivity

Max input signal	1920 × 1080
HDMI port count	1
HDMI ports (feature-level)	HDMI: HDMI 1.4, HDCP 1.4
Horizontal scan frequency	15–135 kHz
Vertical scan frequency	23–85 Hz
USB media playback	Yes
Wi-Fi	Wi-Fi 4
Bluetooth version	5.0
Auto keystone	Yes
Screen fit / alignment	Yes
Obstacle avoidance	Yes

Firmware / software

Smart OS	Google TV
Netflix	Native
Storage	8 GB

Environment & power

Operating temperature	0–35°C
Operating humidity	0–85%RH
Operating orientations	Table, Ceiling, Rear
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption by mode	Normal: 144 W
Standby power	0.5 W
Fan noise (sound pressure)	Normal: 40 dB(A)

Physical & installation

Width	228 mm
Depth	227 mm
Height	159 mm
Weight	3.13 kg
Mount hole pattern	Thread: M4
Tripod socket	Yes
Sealed optical engine	Yes
Air filter	None

Support & ownership

Warranty	🇺🇸 US 1 yr The manual's generic projector warranty text says three years on parts and labor and one year on the lamp for North and South America (with a heavy-usage exception); the ViewSonic US product page for this model says one year, which is followed here.
User manual	https://www.viewsonicglobal.com/public/products_download/user_guide/projector/LX60HD/LX60HD_UG_ENG.pdf
Photobiological risk group	RG1
Safety & market certifications	FCC, CE

In the box

Box contents	Projector, Remote, Batteries, Quick start guide, Power cord
Remote type	Bluetooth
