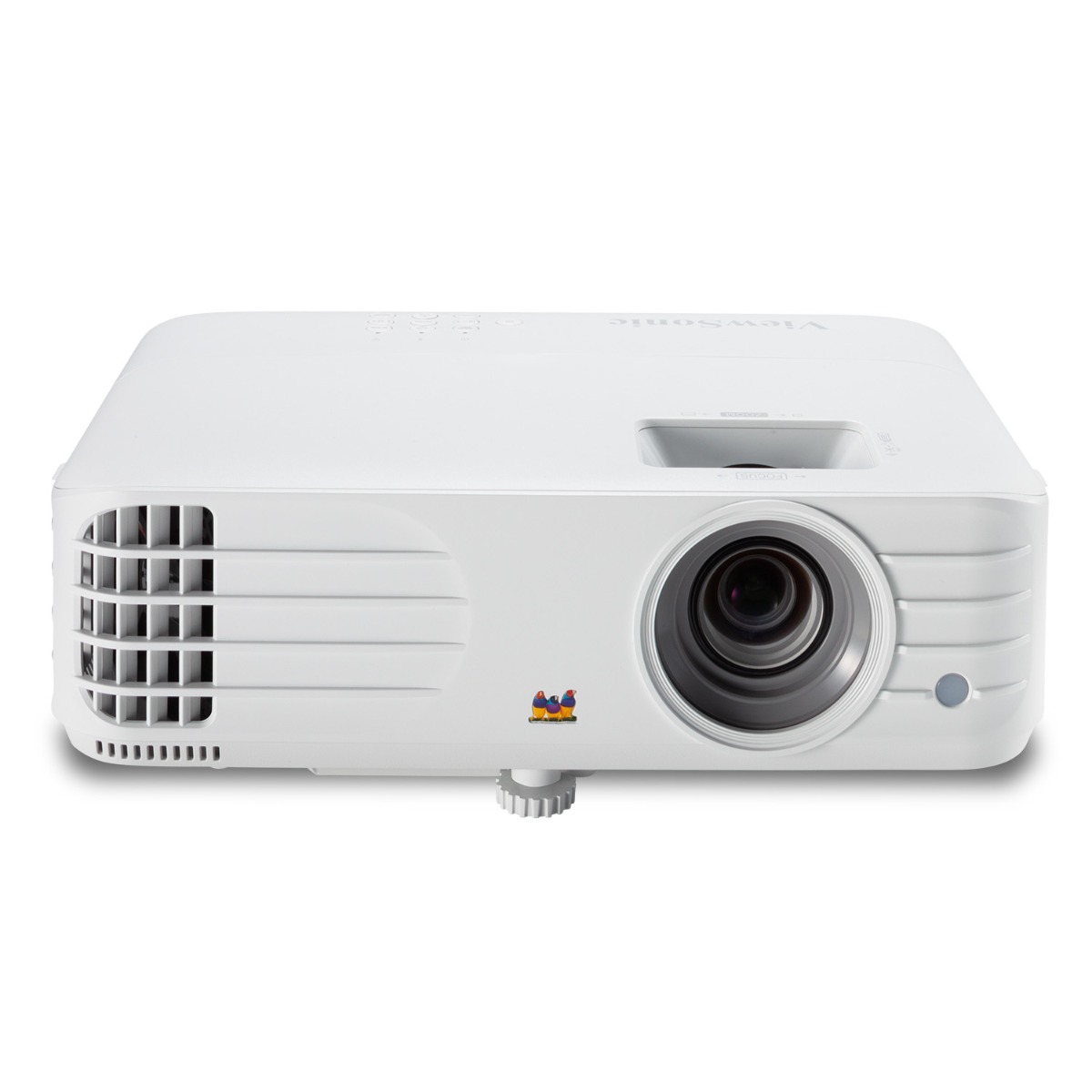

ViewSonic PG701WU
| Brand | ViewSonic · PG Series |
| Type | Education |
| Status | Discontinued |
| Released | September 2019 |
| Resolution | WUXGA |
| Imaging technology | DLP |
| Light source | Lamp |
| Brightness | 3,500 lm ANSI |
| Throw ratio | 1.5–1.65:1 |
| Input lag | 1080p: 60 Hz 16 ms |
A lamp-based single-chip DLP projector with a 1920x1200 (WUXGA, 16:10) chip, rated at 3,500 ANSI lumens by ViewSonic. It has a 1.1x manual zoom lens with no lens shift, two HDMI 1.4 inputs, VGA in and out, RS-232 and a 2 W mono speaker, and suits classrooms and small meeting rooms.
Data sheet
| White light output | 3,500 lm ANSI | |
| Imaging technology | DLP | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Colour wheel segments | 6 | |
| Colour bit depth (per channel) | 10 bit | |
| 3D | Yes | |
| 3D formats | Side-by-side, Top-bottom, Frame sequential |
Light source
| Light source | Lamp | |
| Lamp power | 203 W | |
| Replacement lamp | RLC-119 | |
| Light-source life | 5,000 h normal · 20,000 h dynamic |
Optics
| Throw ratio | 1.5–1.65:1100″ · 3.23–3.55 m | |
| Image size | 30–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.1×Derived | |
| Focus | Manual | |
| Vertical lens shift | None | |
| Vertical keystone | 40° |
Motion & gaming
| Input lag | 1080p: 60 Hz 16 ms |
Inputs & control
| HDMI inputs | 2 × HDMI 1.4 | |
| Other video inputs | VGA | |
| Max input resolution | WUXGA | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232 |
Audio
| Speaker power | 2 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 312 × 222 × 108 mm | |
| Weight | 2,600 g | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4, screws ≤ 8 mm |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 0–90%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | 300 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz |
Safety & support
| Marks | FCC | |
| Warranty | 🇺🇸 US 3 yr (light source 1 yr) | |
| User manual | viewsonicglobal.com | |
| Spare parts | Lamp RLC-119 |
In the box
| In the box | Power cord, Remote, Quick start guide, VGA cable |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Christie Captiva DHD400S 1080p · DLP | 1080p | DLP | 3,500 | $1,999.99 +$1,351 | Compare |
NEC NP-UM351W WXGA · 3LCD | WXGA | 3LCD | 3,500 | — | Compare |

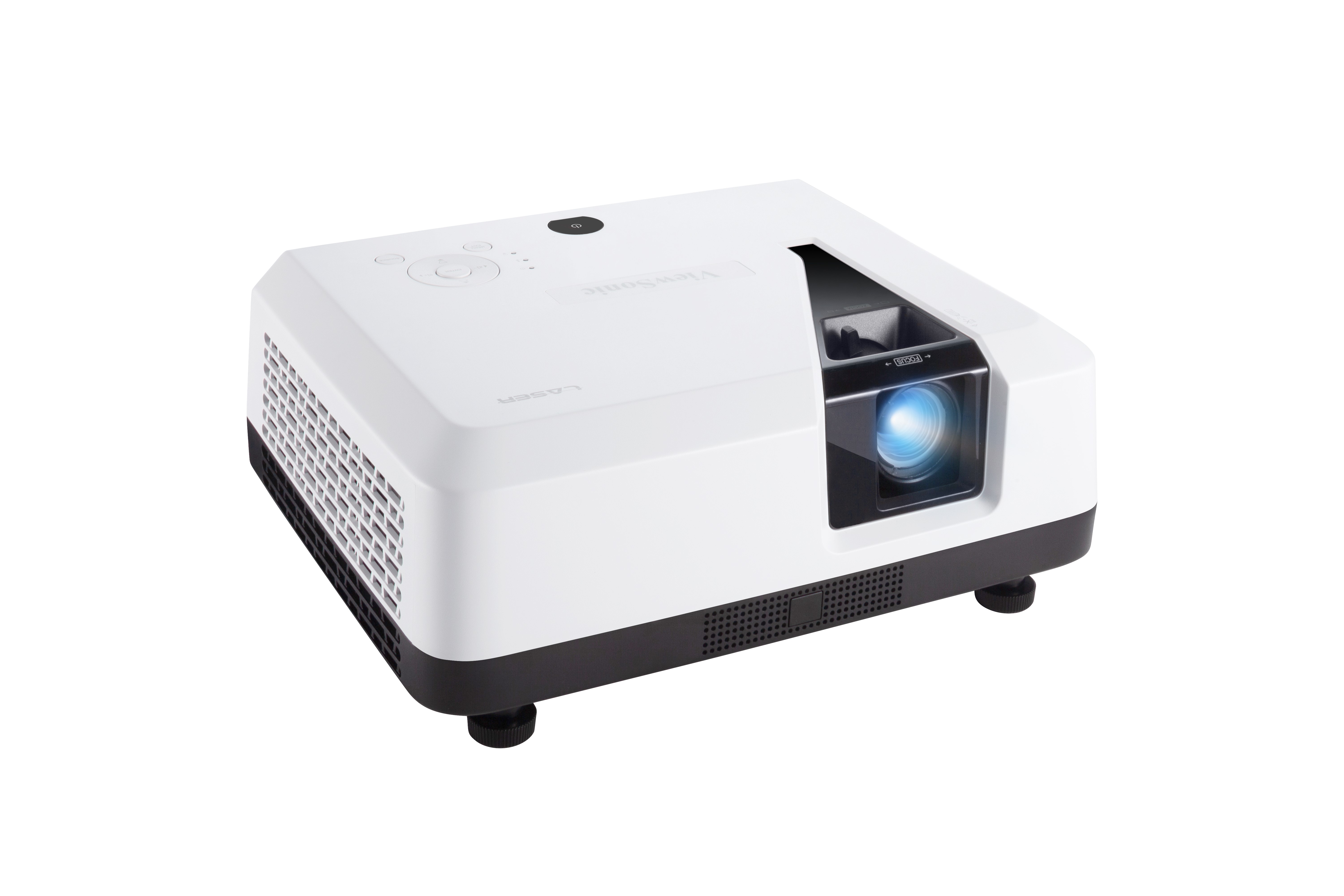

ViewSonic LS700HD 1080p · DLP | 1080p | DLP | 3,500 | $1,603 +$954 | Compare |
