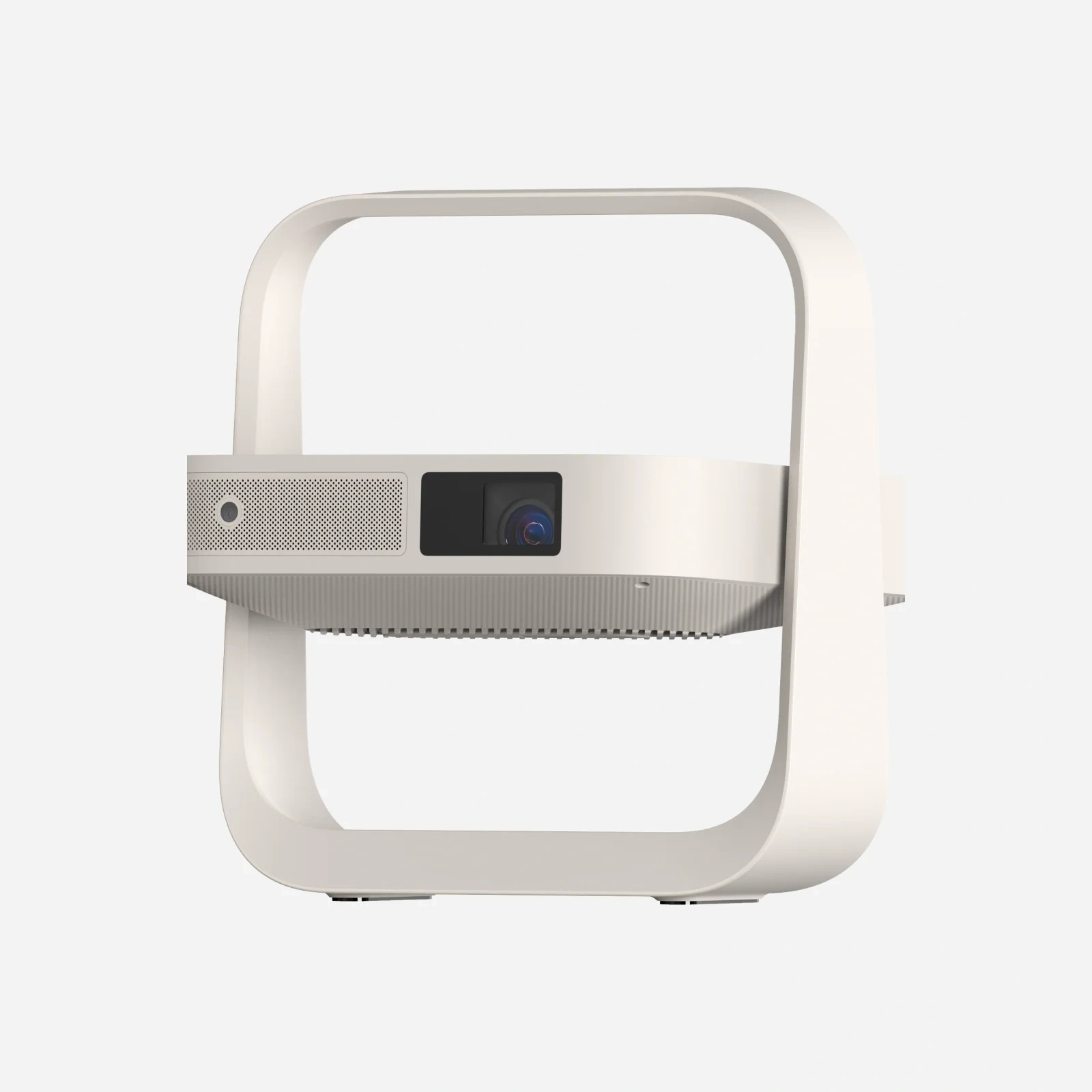

XGIMI Elfin Flip
| Brand | XGIMI · Elfin |
| Type | Portable |
| Released | September 2024 |
| Resolution | 1080p |
| HDR formats | HDR10 |
| Imaging technology | DLP |
| Light source | LED |
| Brightness | 400 lm ISO |
| Throw ratio | 1.2:1 |
A 1080p DLP LED portable projector rated at 400 ISO lumens, with a built-in flip stand that also covers the lens. It runs XGIMI OS with licensed Netflix and suits casual viewing in dim rooms on screens up to 150 inches.
Data sheet
| White light output | 400 lm ISO | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.23 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Colour gamut | Rec. 709 113% area | |
| HDR formats | HDR10 |
Light source
| Light source | LED | |
| Light-source life | 25,000 h |
Optics
| Throw ratio | 1.2:1100″ · 2.66 m | |
| Image size | 80–150 in | |
| Zoom | Digital | |
| Focus | Motorised | |
| Autofocus | Yes | |
| Vertical lens shift | None | |
| Vertical keystone | 40° | |
| Horizontal keystone | 40° | |
| Auto keystone | Yes |
Audio
| Speaker power | 6 W | |
| Speakers | 2 | |
| Audio formats | Dolby Audio |
Physical & installation
| Dimensions (W × D × H) | 218 × 64 × 235 mm | |
| Weight | 1,180 g | |
| Orientations | Table, Ceiling, Rear | |
| Tripod socket | Yes |
Environment & power
| Operating temperature | 0–40°C | |
| Power draw | Up to Max 65 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Up to 28 dB(A) at 1 m | at 1 m |
Safety & support
| Risk group | RG2 | |
| Marks | CE, FCC | |
| Warranty | 🇺🇸 US 1 yr |
In the box
| In the box | Power cord, Remote, Remote batteries, User manual, Warranty card | |
| Remote | Bluetooth |
Reviews
Videos
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
ViewSonic M2e 1080p · DLP | 1080p | DLP | 400 | $599 +$200 | Compare |
Nebula Mars 3 Air 1080p · DLP | 1080p | DLP | 400 | $519.99 +$121 | Compare |
ASUS ZenBeam L2 1080p · DLP | 1080p | DLP | 400 | $699 +$300 | Compare |
XGIMI MoGo 2 Pro 1080p · DLP | 1080p | DLP | 400 | — | Compare |

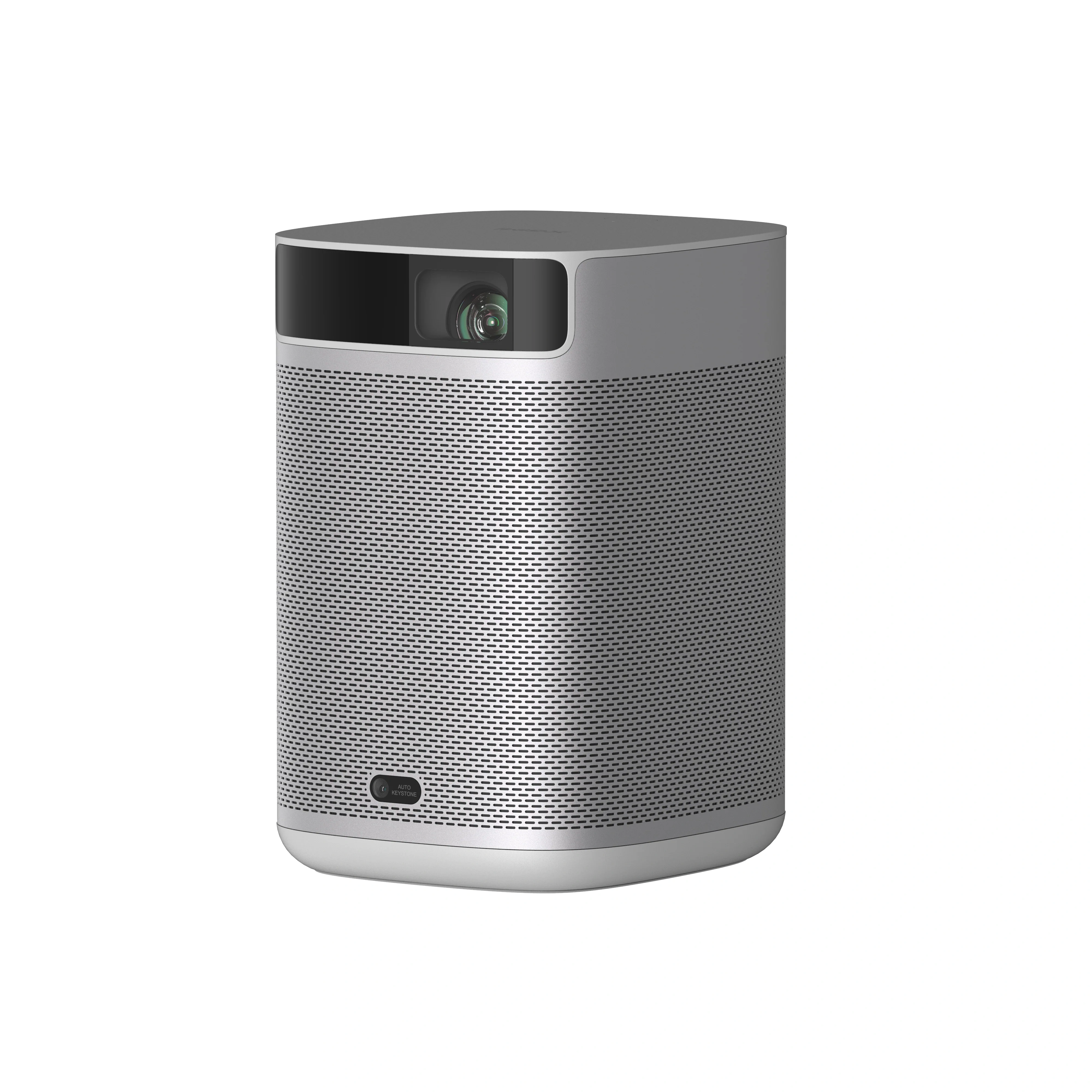

XGIMI MoGo 2 720p · DLP | 720p | DLP | 400 | $399 | Compare |
