ViewSonic LS625W

Brand	ViewSonic
Type	Education
Status	Discontinued
Released	October 2018
Resolution	WXGA
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	3,200 lm ANSI
Throw ratio	0.52:1

A single-chip DLP short-throw laser projector with a 1280x800 chip and a laser phosphor light source, rated at 3,200 ANSI lumens. It has a fixed 0.52:1 lens with no lens shift, two HDMI 1.4 inputs, VGA, LAN and RS-232 control, two 10 W speakers and a 20,000-hour light source, aimed at classrooms.

Data sheet


White light output	3,200 lm ANSI
Imaging technology	DLP
Chip / panel diagonal	0.65 in
Native resolution	WXGA (1280 × 800)
Native aspect	16:10Derived
Dynamic contrast	100,000:1
Colour bit depth (per channel)	10 bit
Colour management (CMS)	6-axis
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential

Light source

Light source	Laser (phosphor)
Emitter	Blue laser + phosphor
Light-source life	20,000 h normal · 20,000 h dynamic
Light output control	Steps

Optics

Throw ratio	0.52:1100″ · 1.12 m
Image size	70–100 in
Zoom	None
Focus	Manual
Vertical lens shift	None
Horizontal lens shift	None
Vertical keystone	40°
Horizontal keystone	40°
Interchangeable lens	No

Inputs & control

HDMI inputs	2 × HDMI 1.4 (HDCP 1.4)
Other video inputs	VGA, Composite
Max input resolution	WUXGA
Audio inputs	3.5 mm
Control ports	RS-232, 12 V trigger
Control-system drivers	Crestron, AMX

Smart platform

Ethernet

Yes

Audio

Speaker power	20 W
Speakers	2
Layout	Stereo
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	383 × 291 × 147 mm
Weight	6,200 g
Orientations	Table, Ceiling, Rear
Ceiling mount	4 × M4, screws ≤ 8 mm
Sealed optical engine	Yes

Environment & power

Operating temperature	0–40°C
Operating humidity	0–90%RH
Altitude	3,000 m · high-altitude mode
Power draw	305 W
Standby	Up to 0.5 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 34 dB(A) · Eco 30 dB(A)

Safety & support

Marks	FCC
Warranty	🇺🇸 US 3 yr
User manual	viewsonicglobal.com

In the box

In the box	Power cord, Remote, Quick start guide, VGA cable
Remote	IR

Similar models

Model	Resolution	Tech	Lumens	Price
ViewSonic LS625X 1024 × 768 · DLP	1024 × 768	DLP	3,200	$1,199 −$190	Compare
Promethean UST-P3 WXGA · DLP	WXGA	DLP	3,150* −50	$49 −$1,340	Compare
NEC NP-UM330X 1024 × 768 · 3LCD	1024 × 768	3LCD	3,300 +100	$1,099 −$290	Compare
ViewSonic PS700W WXGA · DLP	WXGA	DLP	3,300 +100	$1,256 −$133	Compare

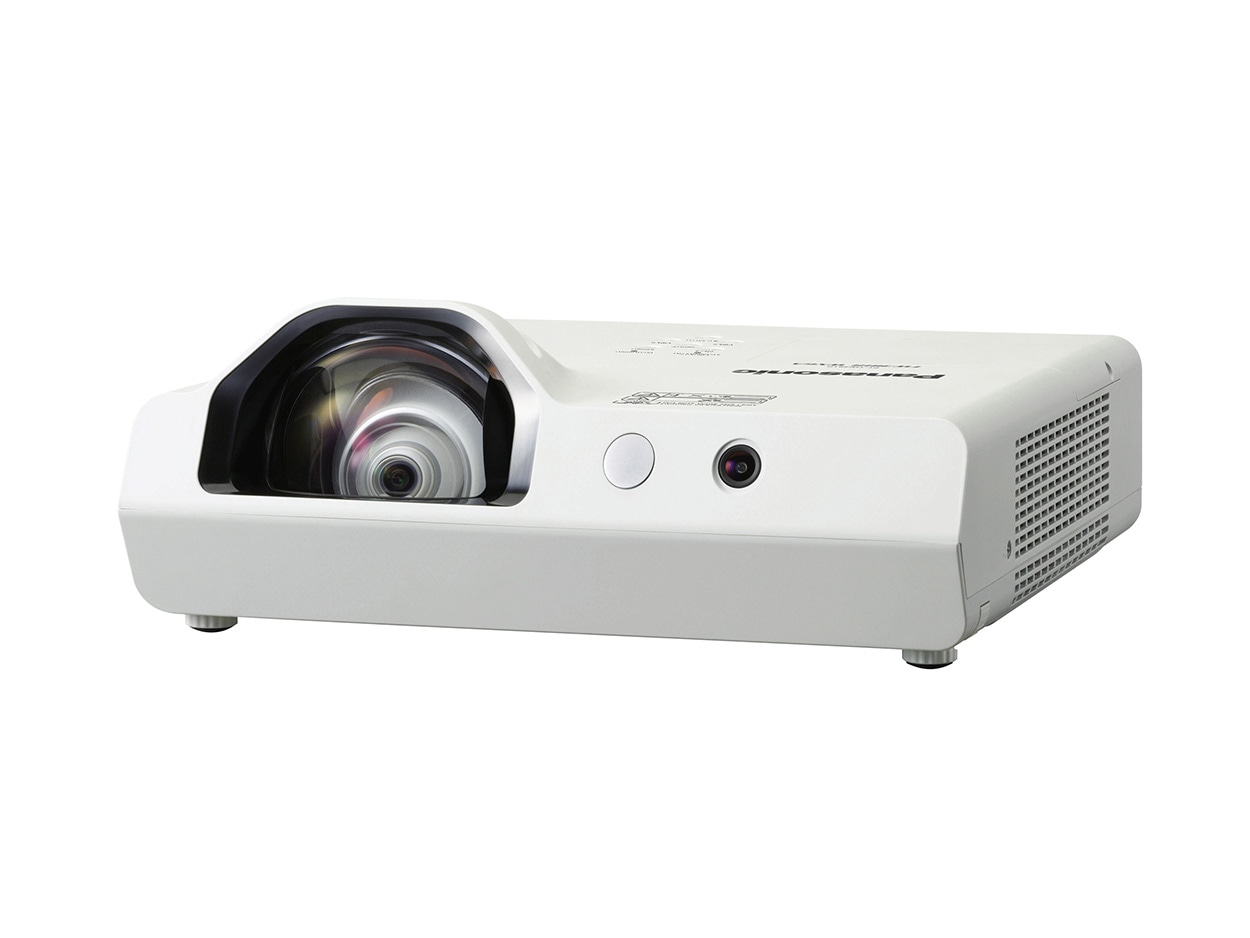

Panasonic PT-TW381R WXGA · 3LCD	WXGA	3LCD	3,300 +100	—	Compare
