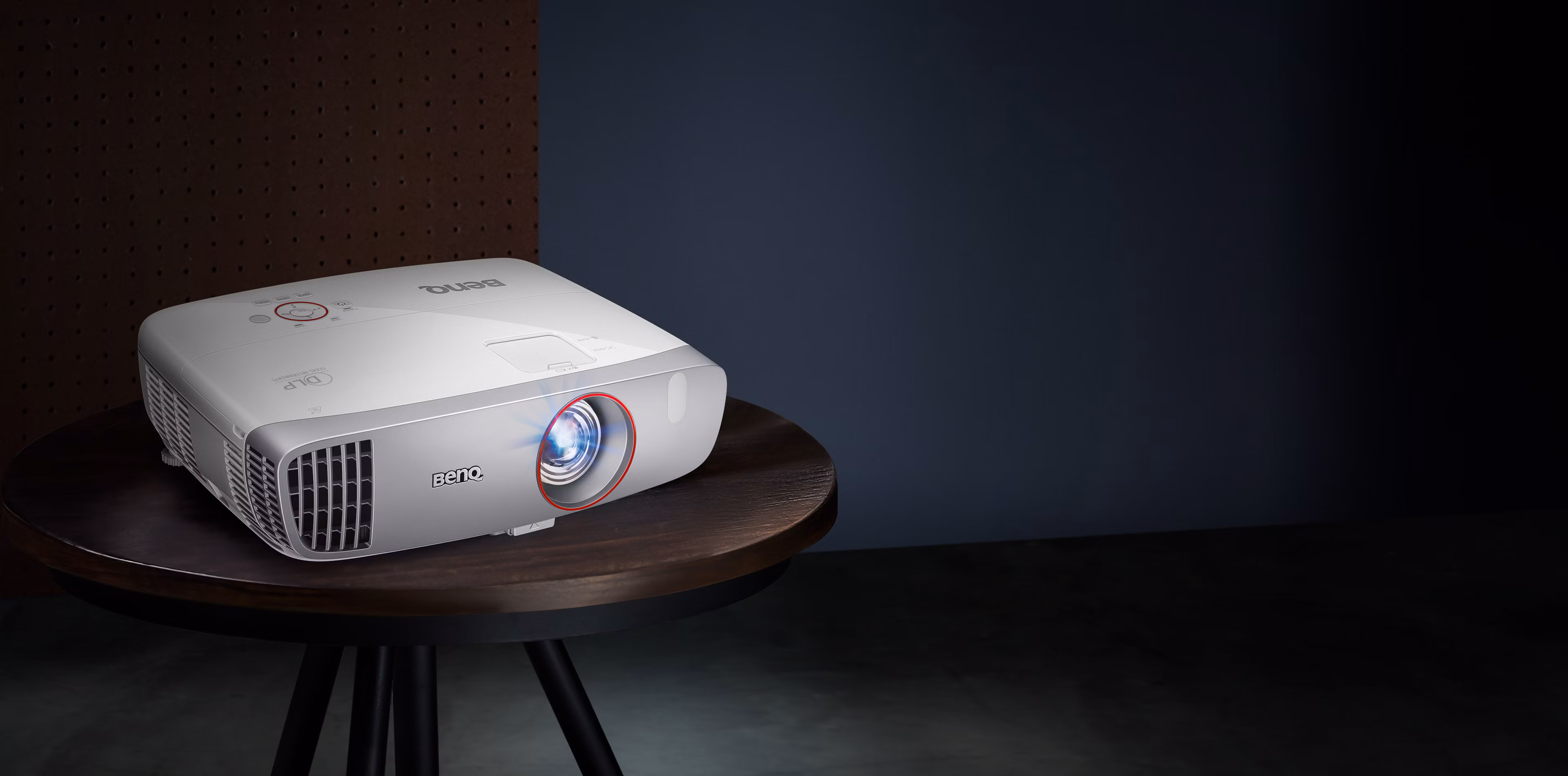

BenQ HT2150ST
| Brand | BenQ · Cinema |
| Type | Home cinema |
| Status | Discontinued |
| Released | August 2016 |
| Resolution | 1080p |
| Imaging technology | DLP |
| Light source | Lamp |
| Brightness | 2,200 lm ANSI |
| Throw ratio | 0.69–0.83:1 |
| Input lag | 1080p: 60 Hz 16.7 ms |
A single-chip DLP lamp projector with a native 1080p chip, rated at 2,200 ANSI lumens, and a short-throw lens (0.69 to 0.83:1, 1.2x manual zoom) that fills a 100-inch screen from about 1.5 m. It has two HDMI inputs, one with MHL, a VGA input, 10 W stereo speakers, DLP-Link 3D and a rated 16.7 ms input lag in Game mode.
Data sheet
| White light output | 2,200 lm ANSI | |
| Imaging technology | DLP | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Colour wheel segments | 6 | |
| Dynamic contrast | 15,000:1 | |
| Colour gamut | Rec. 709 96% coverage | |
| Colour bit depth (per channel) | 10 bit | |
| Gamma / EOTF presets | 2.2, 2.4, 2.6 | |
| Picture certifications | ISF | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential | |
| 3D glasses sync | DLP-Link |
Light source
| Light source | Lamp | |
| Lamp power | 240 W | |
| Replacement lamp | 5J.JEE05.001 | |
| Light-source life | 3,500 h normal · 5,000 h eco · 7,000 h dynamic |
Optics
| Throw ratio | 0.69–0.83:1100″ · 1.53–1.84 m | |
| Image size | 60–120 in | |
| Projection offset | 103% | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 10.2–12.24 mm | |
| Aperture (f-number) | 2.6–2.78 | |
| Focus | Manual | |
| Vertical keystone | 40° | |
| Interchangeable lens | No |
Motion & gaming
| Input lag | 1080p: 60 Hz 16.7 ms Game mode (Fast Mode); ProjectorCentral measured 16.4 ms in Game modes and 49.7 ms in Cinema. | Game mode (Fast Mode); ProjectorCentral measured 16.4 ms in Game modes and 49.7 ms in Cinema. |
Inputs & control
| HDMI inputs | 2 × HDMI 1.4 (HDCP 1.4) | |
| Other video inputs | VGA | |
| Max input resolution | WUXGA | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232, 12 V trigger |
Audio
| Speaker power | 20 W | |
| Speakers | 2 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 381 × 277 × 122 mm | |
| Weight | 3,600 g | |
| Orientations | Ceiling, Rear | |
| Ceiling mount | M4, 20–25 mm screws | |
| Exhaust | Side |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–90%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | Normal 353 W · Eco 292 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 29 dB(A) · Eco 27 dB(A) |
Safety & support
| Warranty | 🇺🇸 US 3 yr (light source 1 yr or 2,000 h) Pre-installed lamps on new units: 2,000 hours or one year, whichever comes first. ProjectorCentral lists 1 year (older listing). | |
| User manual | esupportdownload.benq.com | |
| Spare parts | Lamp 5J.JEE05.001 |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, User manual, Warranty card, Lens cap, Carry case | |
| Remote | Backlit |
