BenQ MS560

Brand	BenQ · Business
Type	Business
Released	December 2021
Resolution	800 × 600
Imaging technology	DLP
Light source	Lamp
Brightness	4,000 lm ANSI
Native contrast (on/off)	20,000:1
Throw ratio	1.96–2.15:1

A lamp-based SVGA (800x600) DLP business projector rated at 4,000 ANSI lumens, with a 1.1x manual zoom, automatic vertical keystone, dual HDMI inputs and a 10 W speaker. It suits meeting rooms and classrooms that present from PCs and need a bright, low-cost projector.

Data sheet


White light output	4,000 lm ANSI
Imaging technology	DLP
Chip / panel diagonal	0.55 in
Native resolution	800 × 600
Native aspect	4:3Derived
Native contrast (on/off)	20,000:1
Colour bit depth (per channel)	10 bit
Picture mode memories	2
3D	Yes

Light source

Light source	Lamp
Replacement lamp	5J.JND05.001
Light-source life	6,000 h normal · 10,000 h eco · 15,000 h super eco · 10,000 h dynamic
Cool-down time	90 s

Optics

Throw ratio	1.96–2.15:1100″ · 3.98–4.37 m
Image size	60–150 in
Projection offset	110%
Zoom	Optical
Zoom ratio	1.1×Derived
Focal length	22–24.1 mm
Aperture (f-number)	2.56–2.68
Focus	Manual
Vertical lens shift	None
Horizontal lens shift	None
Vertical keystone	40°
Auto keystone	Yes
Lens material	Glass

Inputs & control

HDMI inputs	2 × HDMI 1.4 (HDCP 1.4)
Other video inputs	VGA, Component, Composite
Max input resolution	WUXGA
Audio inputs	3.5 mm
Control ports	RS-232

Audio

Speaker power	10 W
Speakers	1
Layout	Mono
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	296 × 221 × 120 mm
Weight	2,300 g
Orientations	Table, Ceiling, Rear
Ceiling mount	M4, 20–25 mm screws

Environment & power

Operating temperature	0–40°C
Power draw	Max 280 W · Normal 260 W · Eco 215 W
Standby	Up to 0.5 W
Mains input	100–240 V · 50/60 Hz
Fan noise	Normal 34 dB(A) · Eco 29 dB(A)

Safety & support

Warranty	🇺🇸 US 3 yr
User manual	esupportdownload.benq.com
Spare parts	Lamp 5J.JND05.001

In the box

In the box	Power cord, Remote, Remote batteries, Quick start guide, Warranty card, VGA cable
Remote	IR

Similar models

Model	Resolution	Tech	Lumens	Price
Christie LW401 WXGA · 3LCD	WXGA	3LCD	4,000	$1,699.99 +$1,341	Compare
NEC NP-M403H 1080p · DLP	1080p	DLP	4,000	$2,599 +$2,240	Compare
NEC NP-P401W WXGA · 3LCD	WXGA	3LCD	4,000	$1,799 +$1,440	Compare
Optoma EH412ST 1080p · DLP	1080p	DLP	4,000	$930 +$571	Compare

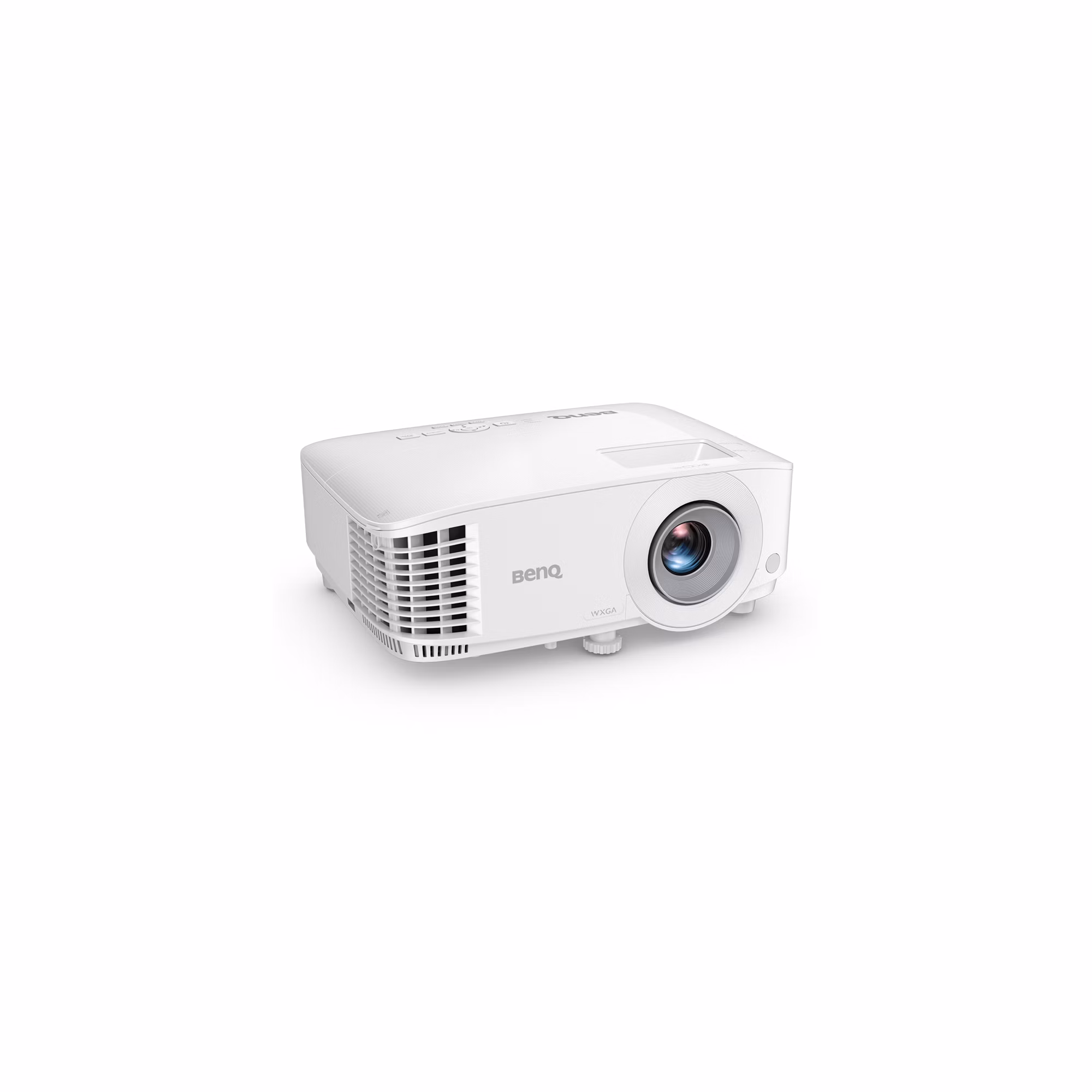

BenQ MW560 WXGA · DLP	WXGA	DLP	4,000	$499 +$140	Compare
