Panasonic PT-LB386

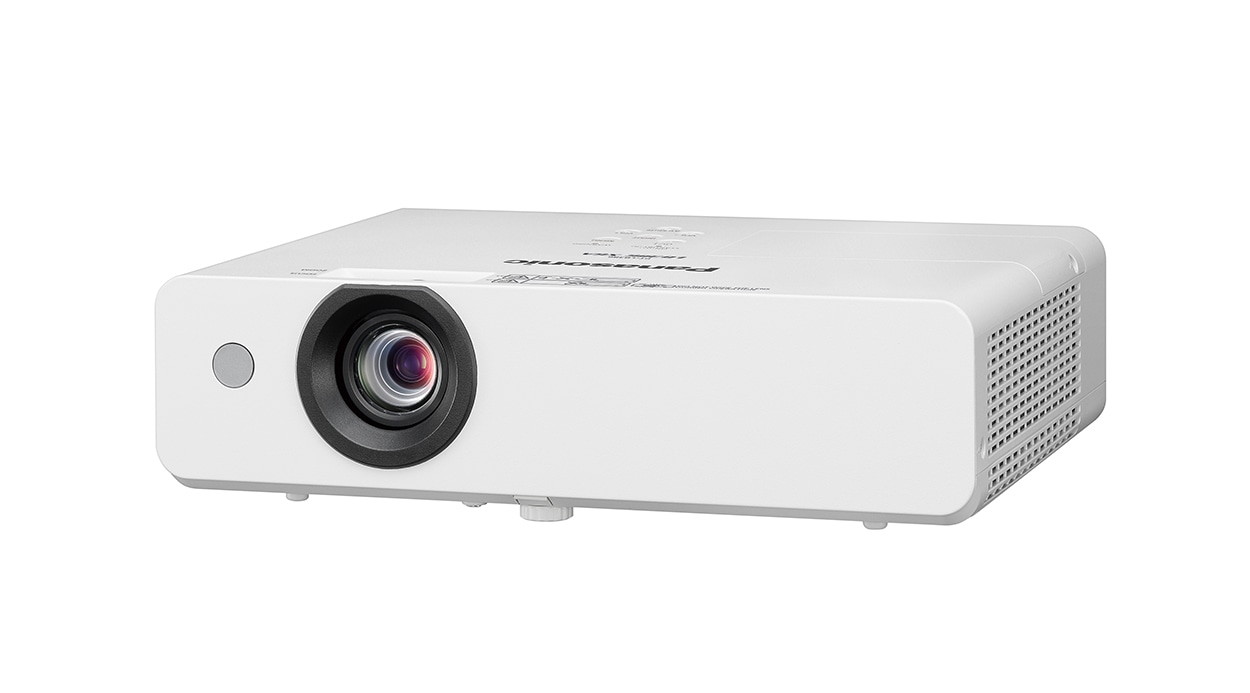

Panasonic PT-LB386 white portable LCD projector, angled front three-quarter view
BrandPanasonic · PT-LB426 Series
TypeInstallation
Status
Discontinued
Resolution1024 × 768
Imaging technology3LCD
Light sourceLamp
Brightness3,800 lm ISO
Throw ratio1.48–1.78:1

A 3,800 lm XGA lamp-based 3LCD projector for classrooms and meeting rooms that can also be ceiling mounted. It has a 1.2x manual zoom lens, two HDMI inputs, a wired LAN port and a 20,000-hour lamp life in Eco mode.

Data sheet


White light output3,800 lm ISO (Normal power, Dynamic mode) · 3,800 lm ANSI
PICTURE MODE DYNAMIC, LAMP POWER NORMAL, AUTO POWER SAVE OFF, DAYLIGHT VIEW OFF
Brightness uniformity85%
Imaging technology3LCD
Chip / panel diagonal0.63 in
Native resolution1024 × 768
Native aspect4:3Derived
Dynamic contrast20,000:1
Colour bit depth (per channel)8 bit

Light source

Light sourceLamp
Lamp power230 W
Replacement lampET-LAL510
Light-source life10,000 h normal · 20,000 h eco
Life defined as50% brightness

Optics

Throw ratio1.48–1.78:10 m5 m10 m15 m40″60″80″100″120″150″200″250″300″100″ · 3.01–3.62 m
Image size30–300 in
ZoomOptical
Zoom ratio1.2×Derived
Focal length19.16–23.02 mm
Aperture (f-number)1.6–1.76
FocusManual
Vertical keystone35°
Horizontal keystone35°
Auto keystoneYes
Corner correction4-corner
Grid warpYes
Interchangeable lensNo

Inputs & control

HDMI inputs2 × HDMI (HDCP 1.4)
Other video inputsVGA, Composite
Audio inputs3.5 mm, RCA
USB media playbackYes
Control portsRS-232

Smart platform

EthernetYes

Audio

Speaker power10 W
LayoutMono
Audio outputs3.5 mm
HDMI audio returnNoneDerived

Physical & installation

Dimensions (W × D × H)335 × 252 × 96 mm
Weight2,900 g
ColoursWhite
OrientationsTable, Ceiling, Rear
Ceiling mountM4, 10 mm deep, 1.25 N·m
Dust filterReplaceable

Environment & power

Operating temperature5–40°C
Operating humidity20–80%RH
Altitude2,700 m
Power drawMax 300 W
Standby0.5 W
STANDBY MODE ECO
Power supplyBuilt in
Mains input100–240 V · 50/60 Hz
Fan noiseNormal 38 dB(A) · Eco 35 dB(A)

Safety & support

MarksFCC
User manualbizpartner.panasonic.net
Spare partsLamp ET-LAL510 · Air filter ET-RFL300

In the box

In the boxPower cord, Remote, Remote batteries
