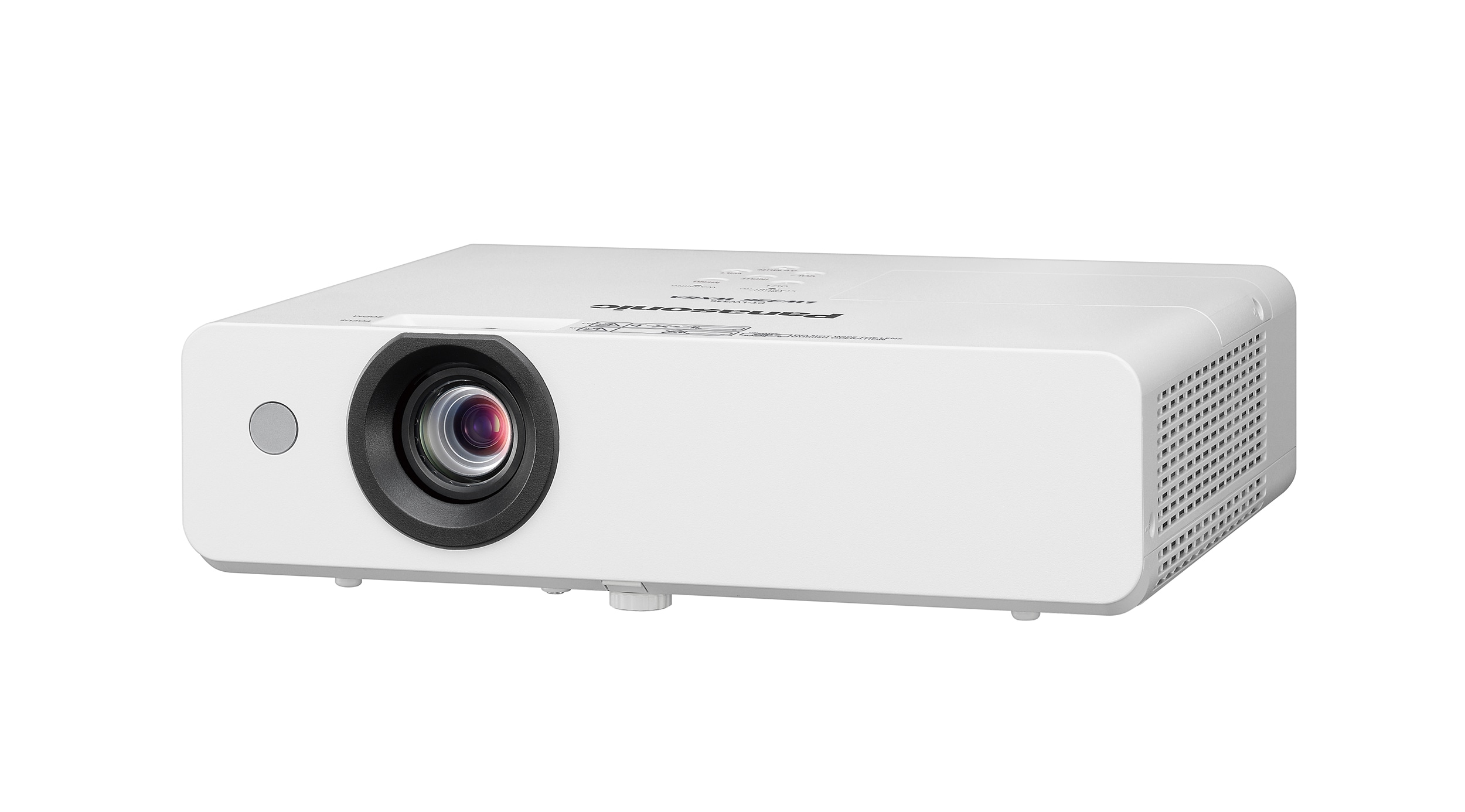

Panasonic PT-LW336
| Brand | Panasonic · PT-LB426 Series |
| Type | Installation |
| Status | Discontinued |
| Resolution | WXGA |
| Imaging technology | 3LCD |
| Light source | Lamp |
| Brightness | 3,100 lm ISO |
| Throw ratio | 1.47–1.77:1 |
A portable 3LCD lamp projector for classrooms and meeting rooms. A 1280x800 panel gives a rated 3,100 lumens, a 1.2x manual zoom lens, two HDMI inputs, a LAN port and a 10 W speaker.
Data sheet
| White light output | 3,100 lm ISO (Normal power, Dynamic mode) · 3,100 lm ANSI PICTURE MODE Dynamic, LAMP POWER Normal, AUTO POWER SAVE Off, DAYLIGHT VIEW Off; average of all products when shipped | PICTURE MODE Dynamic, LAMP POWER Normal, AUTO POWER SAVE Off, DAYLIGHT VIEW Off; average of all products when shipped |
| Brightness uniformity | 85% | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.59 in | |
| Native resolution | WXGA (1280 × 800) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 20,000:1 |
Light source
| Light source | Lamp | |
| Lamp power | 230 W | |
| Light-source life | 10,000 h normal · 20,000 h eco | |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 1.47–1.77:1100″ · 3.17–3.81 m | |
| Image size | 30–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.2×Derived | |
| Focal length | 19.11–22.94 mm | |
| Aperture (f-number) | 2.1–2.25 | |
| Focus | Manual | |
| Vertical keystone | 35° | |
| Horizontal keystone | 35° | |
| Auto keystone | Yes |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 1.4) | |
| Other video inputs | VGA, Composite | |
| Audio inputs | 3.5 mm, RCA | |
| USB media playback | Yes | |
| Control ports | RS-232 | |
| PJLink | Class 2 |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 10 W | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 335 × 252 × 96 mm | |
| Weight | 2,900 g | |
| Orientations | Table, Ceiling, Rear | |
| Dust filter | Replaceable |
Environment & power
| Operating temperature | 5–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 2,700 m | |
| Power draw | Max 300 W | |
| Power supply | Built in | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 38 dB(A) · Eco 35 dB(A) |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

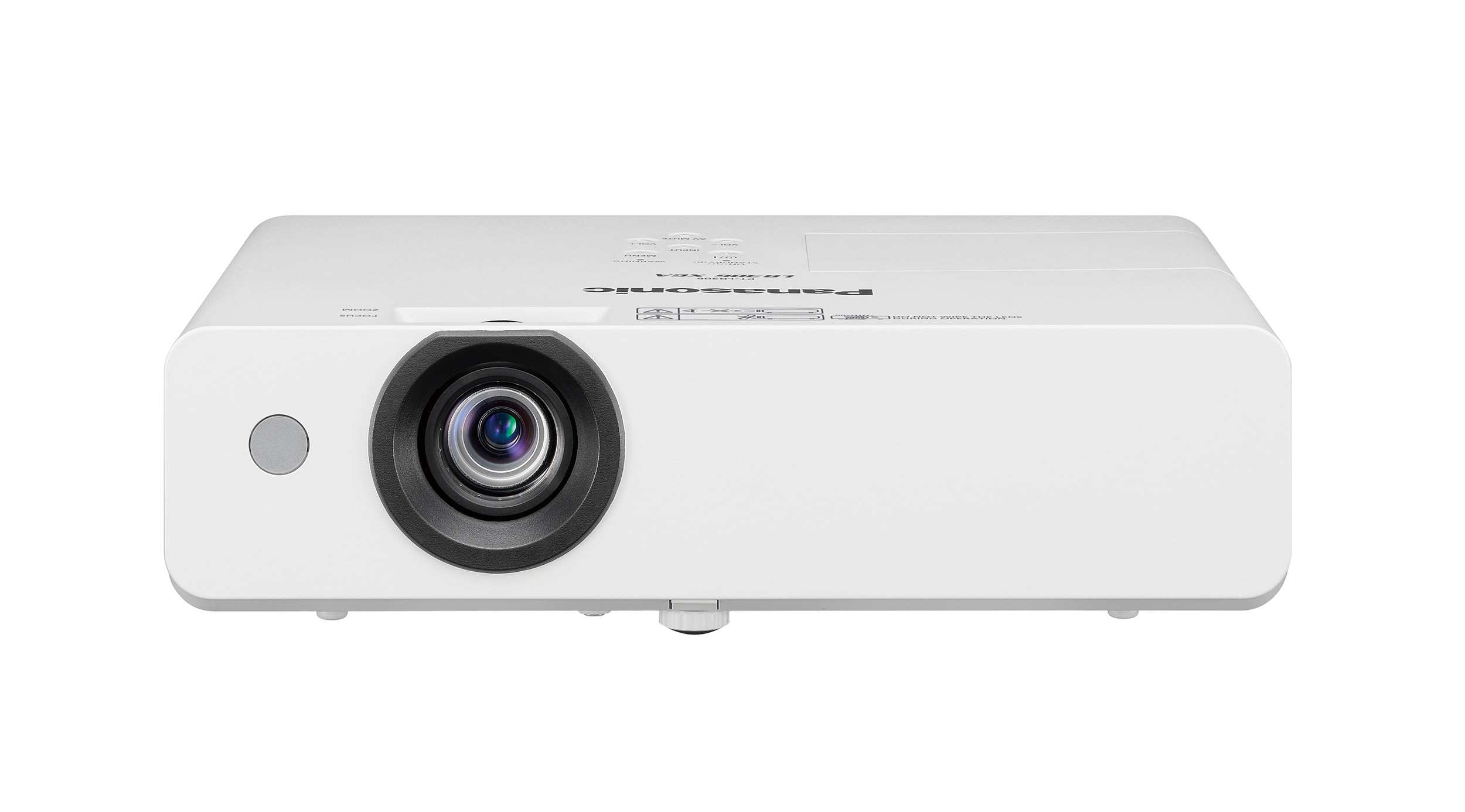

Panasonic PT-LB306 1024 × 768 · 3LCD | 1024 × 768 | 3LCD | 3,100 | — | Compare |
