Panasonic PT-RZ6
| Brand | Panasonic · PT-RQ7 Series |
| Type | Installation |
| Released | November 2024 |
| Resolution | WUXGA |
| HDR formats | HLG |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Brightness | 6,500 lm ISO |
A single-chip DLP laser projector for museums, venues and projection-mapped installations, sold without a lens. A 0.67-inch 1920x1200 chip gives a native WUXGA image at a rated 6,500 lumens, with powered lens shift, two HDMI inputs, DIGITAL LINK and a choice of ten DLE lenses.
Data sheet
| White light output | 6,500 lm ISO (Normal power) · 6,500 lm ANSI Value is the average of all products when shipped, with the ET-DLE170 lens, PICTURE MODE DYNAMIC, LIGHT POWER NORMAL | Value is the average of all products when shipped, with the ET-DLE170 lens, PICTURE MODE DYNAMIC, LIGHT POWER NORMAL |
| Brightness uniformity | 90% | |
| Brightness by mode | Normal 6,500 lm · Eco 5,200 lm | |
| Eco brightness | 80%Derived | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.67 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 15,000:1 | |
| HDR formats | HLG |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco | |
| Life defined as | 50% brightness |
Optics
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 2.3) | |
| Other video inputs | HDBaseT | |
| Max input resolution | DCI 4K | |
| Control ports | RS-232 | |
| PJLink | Class 2 | |
| Control-system drivers | Crestron, AMX |
Smart platform
| Ethernet | Yes |
Audio
Physical & installation
| Dimensions (W × D × H) | 498 × 440 × 170 mm | |
| Weight | 16,600 g | |
| Colours | Black, White | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Dust filter | None | |
| Ingress protection | IP5X (light engine) |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 10–80%RH | |
| Altitude | 4,200 m | |
| Power draw | Max 590 W · Normal 460 W · Eco 350 W | |
| Standby | 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 34 dB(A) · Eco 34 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Marks | FCC | |
| User manual | docs.connect.panasonic.com |
In the box
| In the box | Power cord, Remote, Remote batteries |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Epson PowerLite L690U WUXGA · 3LCD | WUXGA | 3LCD | 6,500 | $3,515 | Compare |
Epson PowerLite L690E WUXGA · 3LCD | WUXGA | 3LCD | 6,500 | $4,169 | Compare |

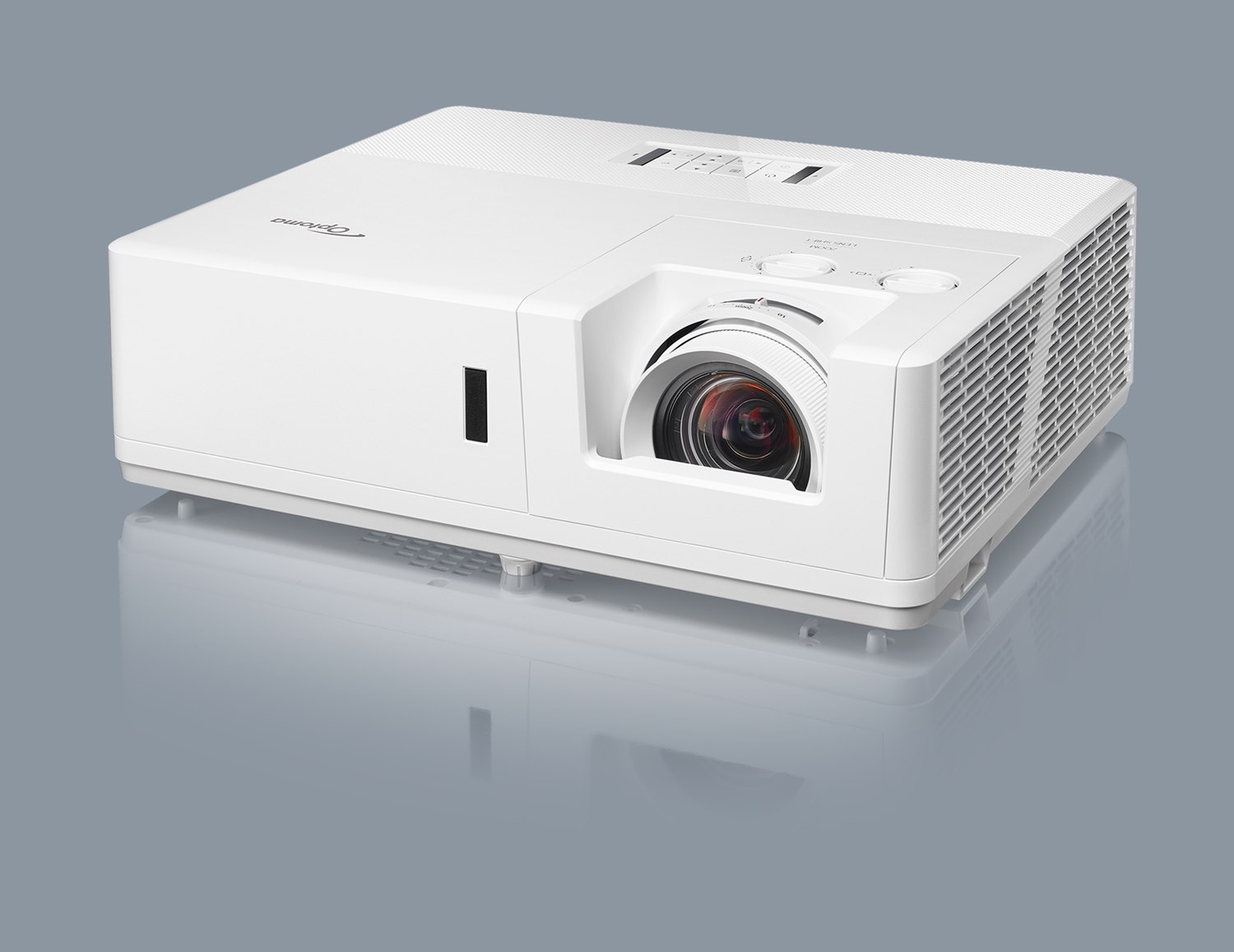

Optoma ZU607T WUXGA · DLP | WUXGA | DLP | 6,500* | $6,099 | Compare |
