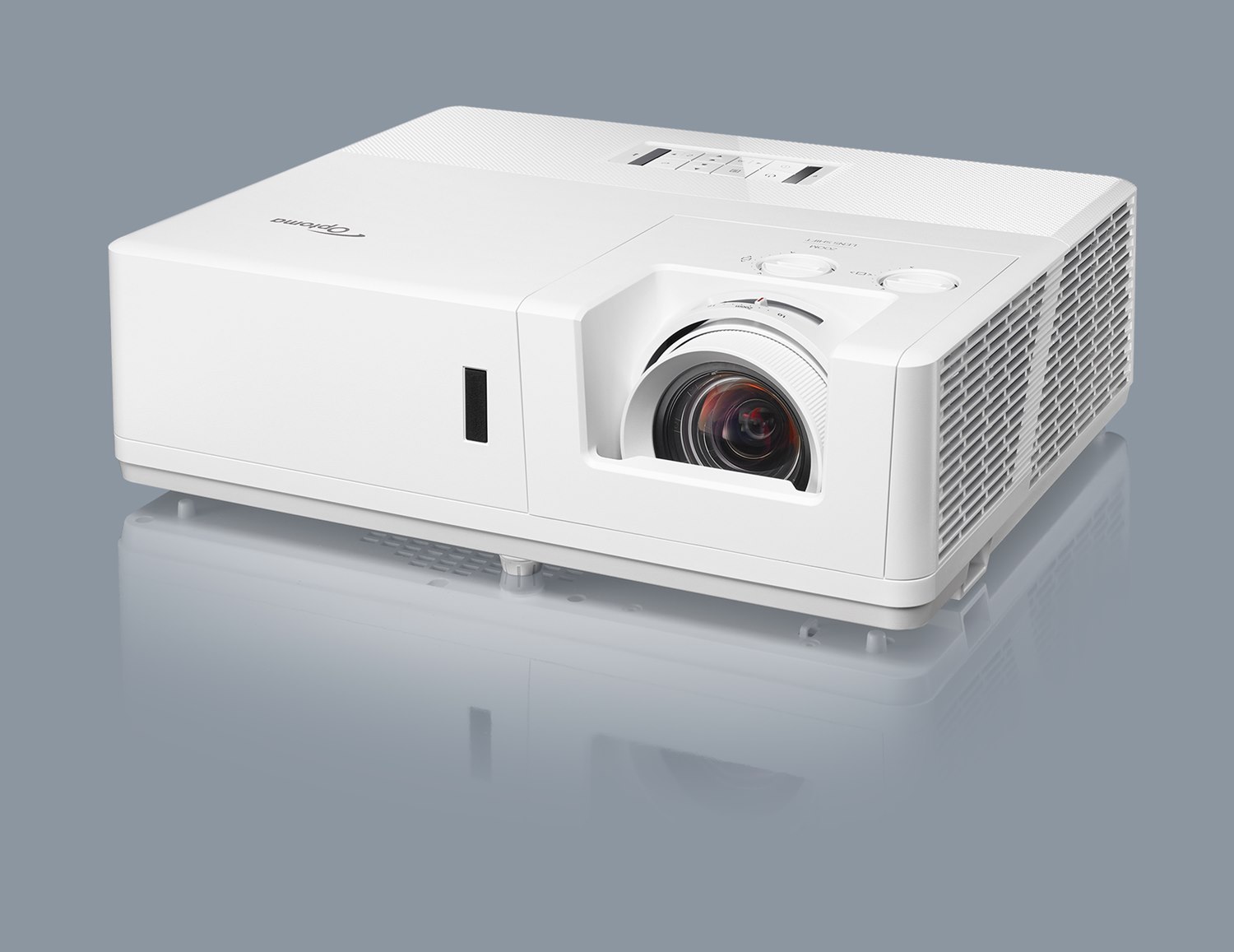

Optoma ZU607T
| Brand | Optoma · Professional |
| Type | Installation |
| Released | February 2024 |
| Resolution | WUXGA |
| HDR formats | HDR10, HLG |
| Imaging technology | DLP |
| Light source | Laser (phosphor) |
| Claimed brightness (non-standard) | 6,500 lm |
| Throw ratio | 1.2–1.92:1 |
| Input lag | 1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.2 ms |
A single-chip DLP laser projector with a 1920x1200 (WUXGA) chip, rated by Optoma at 6500 lumens. It has a 1.6x manual zoom lens with manual lens shift, an IP6X-rated sealed optical engine, HDBaseT and 24/7 rated operation, aimed at large venues, classrooms and installations.
Data sheet
| Claimed brightness (non-standard) | 6,500 lm | |
| Brightness uniformity | 85% | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.67 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Dynamic contrast | 300,000:1 | |
| Gamma / EOTF presets | 2.2, 2.4 | |
| HDR formats | HDR10, HLG | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential | |
| 3D glasses sync | DLP-Link |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 30,000 h |
Optics
| Throw ratio | 1.2–1.92:1100″ · 2.58–4.14 m | |
| Image size | 31.5–302 in | |
| Zoom | Optical | |
| Zoom ratio | 1.6×Derived | |
| Focal length | 17.63–27.9 mm | |
| Aperture (f-number) | 2.3–3 | |
| Focus | Manual | |
| Vertical lens shift | -100–120% | |
| Horizontal lens shift | ±10% | |
| Motorised lens shift | No | |
| Vertical keystone | 30° | |
| Horizontal keystone | 30° | |
| Auto keystone | Yes | |
| Corner correction | 4-corner | |
| Interchangeable lens | No |
Motion & gaming
| Input lag | 1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.2 ms Gaming Mode on; the 4K 60 Hz source is output at 1080p60 | Gaming Mode on; the 4K 60 Hz source is output at 1080p60 |
Inputs & control
| HDMI inputs | 2 × HDMI 2.0 | |
| Other video inputs | VGA, Composite, HDBaseT | |
| Max input resolution | 4K UHD | |
| Audio inputs | 3.5 mm | |
| Control ports | RS-232, 12 V trigger | |
| PJLink | Class 2 | |
| Control-system drivers | Crestron, AMX |
Audio
| Speaker power | 15 W | |
| Speakers | 2 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 374 × 302 × 117 mm | |
| Weight | 6,300 g | |
| Colours | White | |
| Orientations | Portrait, 360° | |
| Ceiling mount | M4, screws ≥ 5 mm, 0.78 N·m | |
| Ingress protection | IP6X (light engine) | |
| Sealed optical engine | Yes |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–85%RH | |
| Altitude | High-altitude mode | |
| Power draw | Max 366 W · Normal 300 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Max 36 dB(A) · Eco 33 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| FDA laser notice | Notice 57 | |
| Warranty | 🇺🇸 US 3 yr Third-party listing; Optoma's warranty page is unreadable. | |
| User manual | region-resource.optoma.com |
In the box
| In the box | Power cord, Remote, Remote batteries, User manual | |
| Remote | Backlit |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Epson PowerLite L690U WUXGA · 3LCD | WUXGA | 3LCD | 6,500 | $3,515 −$2,584 | Compare |
Epson PowerLite L690E WUXGA · 3LCD | WUXGA | 3LCD | 6,500 | $4,169 −$1,930 | Compare |
Sony VPL-PHZ61 WUXGA · 3LCD | WUXGA | 3LCD | 6,400 −100 | $3,266.95 −$2,832 | Compare |
NEC NP-PA622U WUXGA · 3LCD | WUXGA | 3LCD | 6,200 −300 | $6,599 +$500 | Compare |
Epson PowerLite L690SU WUXGA · 3LCD | WUXGA | 3LCD | 6,200 −300 | $4,661 −$1,438 | Compare |

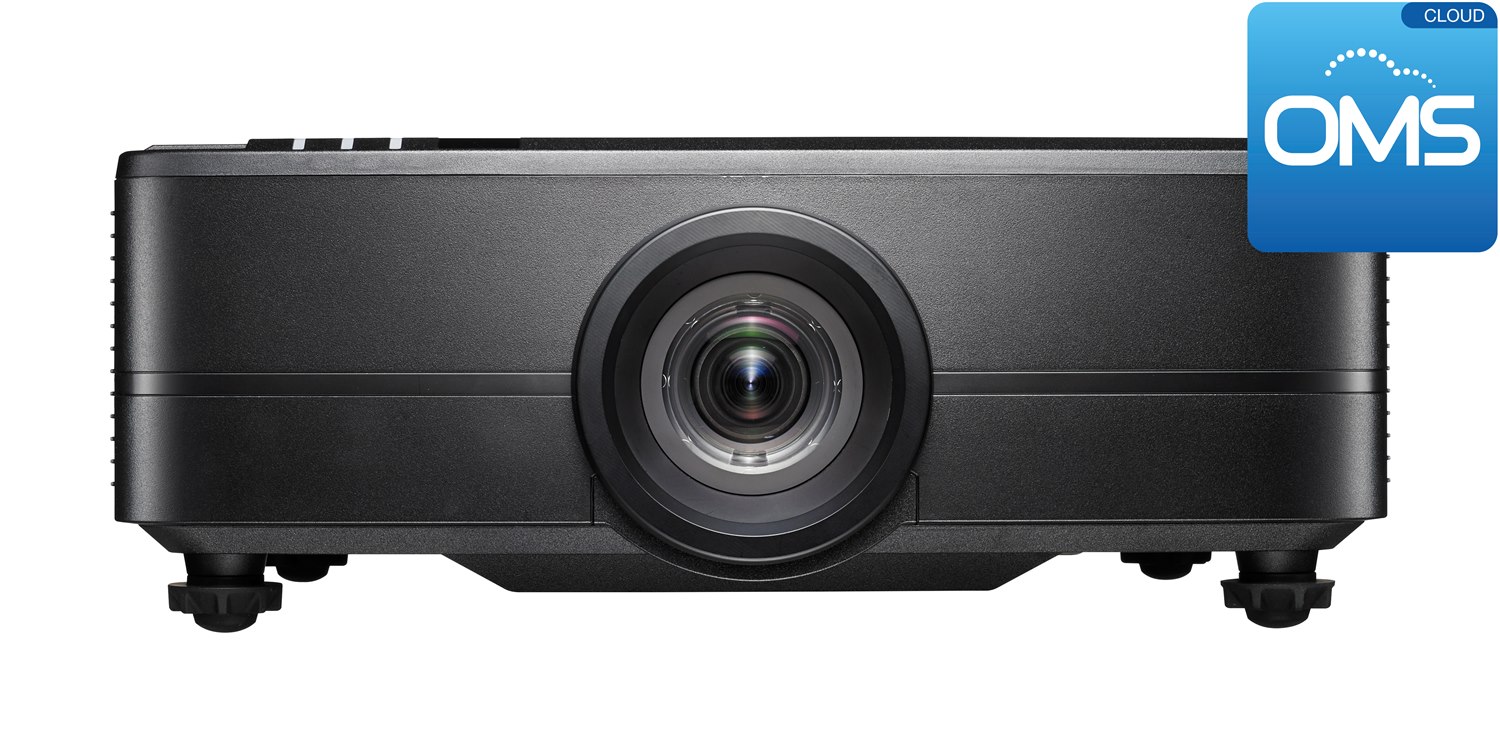

Optoma ProScene ZU820TST WUXGA · DLP | WUXGA | DLP | 6,900 +400 | $13,999 +$7,900 | Compare |
