Epson PowerLite L690E vs Optoma ZU607T

Epson PowerLite L690EEpson PowerLite L690E
MSRP $4,169

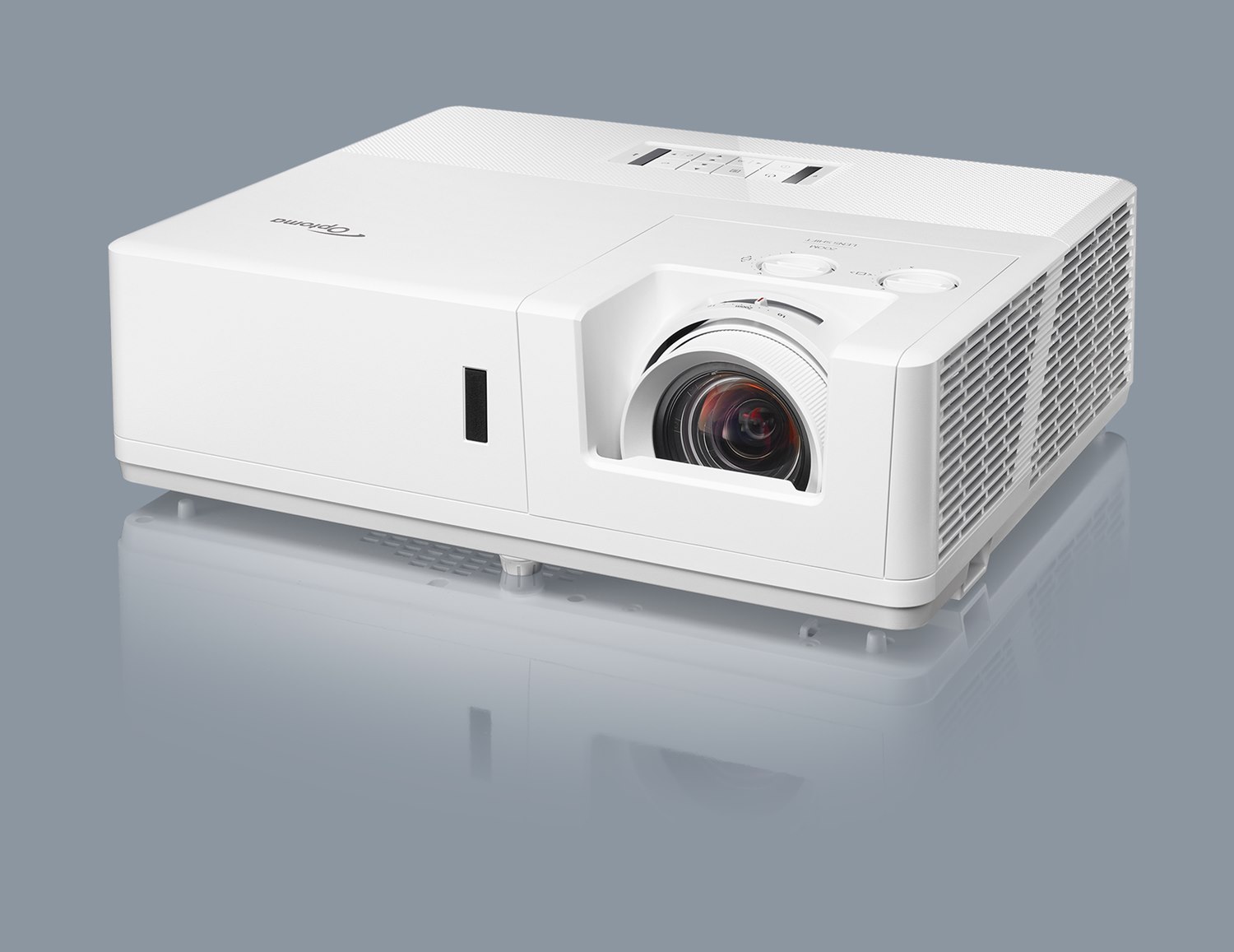

Optoma ZU607TOptoma ZU607T
MSRP $6,099
Key differences
White light output6,500 lm ISO—
Throw ratio1.35–2.2:11.2–1.92:1
Lowest input lag—8.2 msDerived
Fan noiseNormal 32 dB(A) · Eco 25 dB(A)Max 36 dB(A) · Eco 33 dB(A)
PriceMSRP $4,169MSRP $6,099
Room fit
Distance to screen2.9–4.7 m2.6–4.1 m
Brightness
Rated brightness6,500 lmDerived—
White light output6,500 lm ISO—
Colour light output6,500 lm—
Claimed brightness (non-standard)—6,500 lm
Brightness uniformity88%85%
Display system
Imaging technology3LCDDLP
Chip / panel diagonal0.67 in0.67 in
On-screen resolutionWUXGA (1920 × 1200)DerivedWUXGA (1920 × 1200)Derived
Native resolutionWUXGA (1920 × 1200)WUXGA (1920 × 1200)
Native aspect16:10Derived16:10Derived
Pixel shiftYes (scheme not stated)—
Contrast
Dynamic contrastOver 5,000,000:1300,000:1
Colour
Gamma / EOTF presets—2.2, 2.4
HDR
HDR formatsHDR10, HLGHDR10, HLG
3D
3D—Yes
3D formats—Frame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses sync—DLP-Link
Light source
Light sourceLaser (phosphor)Laser (phosphor)
Light-source life20,000 h normal · 30,000 h eco30,000 h
Life defined as50% brightness—
Light output controlContinuous—
Optics
Throw ratio1.35–2.2:11.2–1.92:1
Image size50–500 in31.5–302 in
ZoomOpticalOptical
Zoom ratio1.63×Derived1.6×Derived
Focal length20–31.8 mm17.63–27.9 mm
Aperture (f-number)1.5–1.72.3–3
FocusManualManual
Vertical lens shift±50%-100–120%
Horizontal lens shift±20%±10%
Motorised lens shiftNoNo
Vertical keystone30°30°
Horizontal keystone30°30°
Auto keystone—Yes
Corner correction—4-corner
Interchangeable lens—No
Motion & gaming
Input lag—1080p: 60 Hz 16.2 ms · 120 Hz 8.2 ms · 4K UHD: 60 Hz 16.2 ms
Lowest input lag—8.2 msDerived
Input lag at 4K 60 Hz—16.2 msDerived
Inputs & control
HDMI inputs2 × HDMI (HDCP 2.3)2 × HDMI 2.0
HDMI inputs (count)2Derived2Derived
Newest HDMI version—HDMI 2.0Derived
Other video inputsHDBaseT+ VGA, + Composite, HDBaseT
Max input resolution4K UHD4K UHD
Audio inputs—3.5 mm
USB media playbackYes—
Control portsRS-232RS-232, + 12 V trigger
PJLinkClass 2Class 2
Control-system drivers—Crestron, AMX
Horizontal scan26–135 kHz15–140 kHz
Vertical scan23.98–60 Hz24–120 Hz
Smart platform
Wi-FiWi-Fi 6None
EthernetYesYes
CastingAirPlay 2, Miracast—
Audio
Speaker power10 W15 W
Speakers12
Audio outputs3.5 mm3.5 mm
HDMI audio returnNoneDerivedNoneDerived
Physical & installation
Dimensions (W × D × H)440 × 304 × 122 mm374 × 302 × 117 mm
Weight8,210 g6,300 g
Colours—White
Orientations+ Table, + Ceiling, + Rear, 360°+ Portrait, 360°
Ceiling mount—M4, screws ≥ 5 mm, 0.78 N·m
Dust filterReplaceable—
Ingress protection—IP6X (light engine)
Sealed optical engine—Yes
Environment & power
Operating temperature0–45°C0–40°C
Operating humidity20–80%RH10–85%RH
Altitude3,048 mHigh-altitude mode
Power draw415 WMax 366 W · Normal 300 W
Standby0.3 WUp to 0.5 W
Networked standby2.4 W—
Mains input100–240 V · 50/60 Hz100–240 V · 50/60 Hz
Noise
Fan noiseNormal 32 dB(A) · Eco 25 dB(A)Max 36 dB(A) · Eco 33 dB(A)
Safety & compliance
Laser classClass 1Class 1
Risk groupRG2RG2
FDA laser noticeNotice 57Notice 57
Support & ownership
Warranty🇺🇸 US 3 yr · 🇨🇦 CA 3 yr3 yr
User manualhttps://download2.ebz.epson.net/sec_pubs_visual/eai/projectors/pdf/useg/EN/UsersGuide_EBL890E_EN_EAI.pdfhttps://region-resource.optoma.com/products/import/Documents/80ae7bb1-53fa-45d2-b243-bbaeb215462c.pdf
In the box
In the boxPower cord, Remote, Remote batteries, + Quick start guidePower cord, Remote, Remote batteries, + User manual
Remote—Backlit
