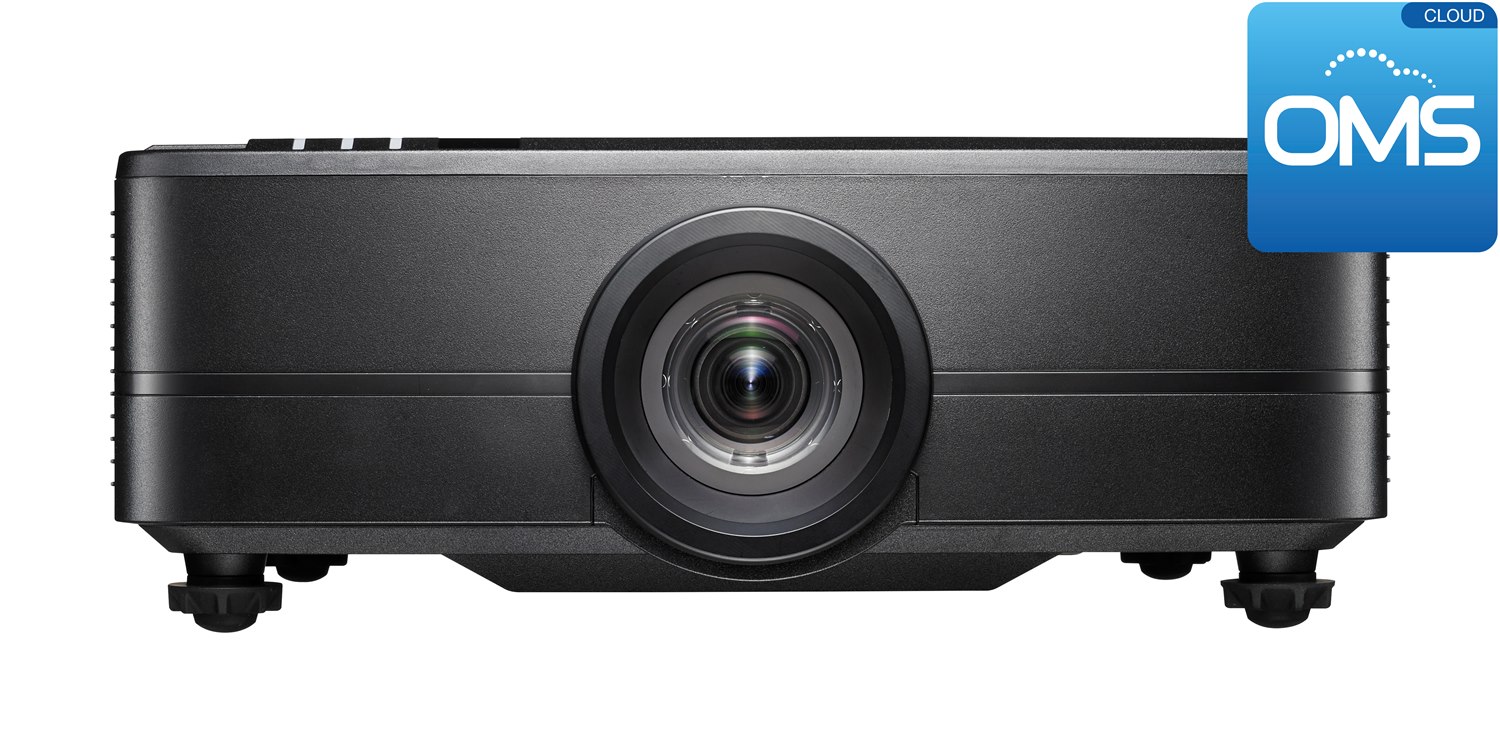

Optoma ProScene ZU820TST

Brand	Optoma · ProScene
Type	Installation
Released	May 2023
Resolution	WUXGA
Imaging technology	DLP
Light source	Laser (phosphor)
Brightness	6,900 lm ANSI
Throw ratio	0.75–0.95:1

A fixed-lens WUXGA single-chip DLP laser projector that Optoma rates at 8,200 lumens, built for large venues, simulation, edge-blending and projection mapping. Its short-throw lens has a 0.75:1 to 0.95:1 throw ratio (1.26x motorized zoom) with motorized focus and lens shift, and it adds HDBaseT, an IP5X dust-resistant optical engine and built-in warping and edge blending.

Data sheet


White light output	6,900 lm ANSI
Claimed brightness (non-standard)	8,200 lm
Brightness uniformity	95%
Imaging technology	DLP
Native resolution	WUXGA (1920 × 1200)
Native aspect	16:10Derived
Dynamic contrast	3,000,000:1
Dynamic contrast method	Light-source dimming
Gamma / EOTF presets	2.2, 2.4, 2.6
Colour management (CMS)	6-axis
3D	Yes
3D formats	Frame packing, Side-by-side, Top-bottom, Frame sequential
3D glasses sync	DLP-Link

Light source

Light source	Laser (phosphor)
Light-source life	30,000 h eco
Light output control	Continuous
Constant brightness mode	Yes

Optics

Throw ratio	0.75–0.95:1100″ · 1.62–2.05 m
Image size	50–300 in
Zoom	Optical
Zoom ratio	1.27×Derived
Focal length	11.11–14.16 mm
Focus	Motorised
Vertical lens shift	±50%
Horizontal lens shift	±15%
Motorised lens shift	Yes
Lens memory slots	5
Vertical keystone	15°
Horizontal keystone	30°
Corner correction	4-corner
Grid warp	Yes
Interchangeable lens	No

Inputs & control

HDMI inputs	HDMI 2.0 · HDMI 1.4
Other video inputs	VGA, HDBaseT
Audio inputs	3.5 mm
Control ports	RS-232, Wired IR, 12 V trigger
Control-system drivers	Crestron, AMX

Smart platform

Wi-Fi	None
Ethernet	Yes

Audio

Speaker power	20 W
Speakers	2
Audio outputs	3.5 mm
HDMI audio return	NoneDerived

Physical & installation

Dimensions (W × D × H)	486 × 395 × 186 mm
Weight	12,600 g
Colours	Black
Orientations	Portrait, 360°
Ceiling mount	M4, screws ≥ 8 mm
Ingress protection	IP5X (light engine)

Environment & power

Operating temperature	5–40°C
Operating humidity	10–85%RH
Power draw	Max 520 W · Eco 260 W
Standby	0.5 W
Power supply	Built in
Mains input	90–264 V · 50/60 Hz
Fan noise	Max 36 dB(A) · Eco 34 dB(A)

Safety & support

Laser class	Class 1
Risk group	RG2
FDA laser notice	Notice 57

In the box

Remote

Backlit
