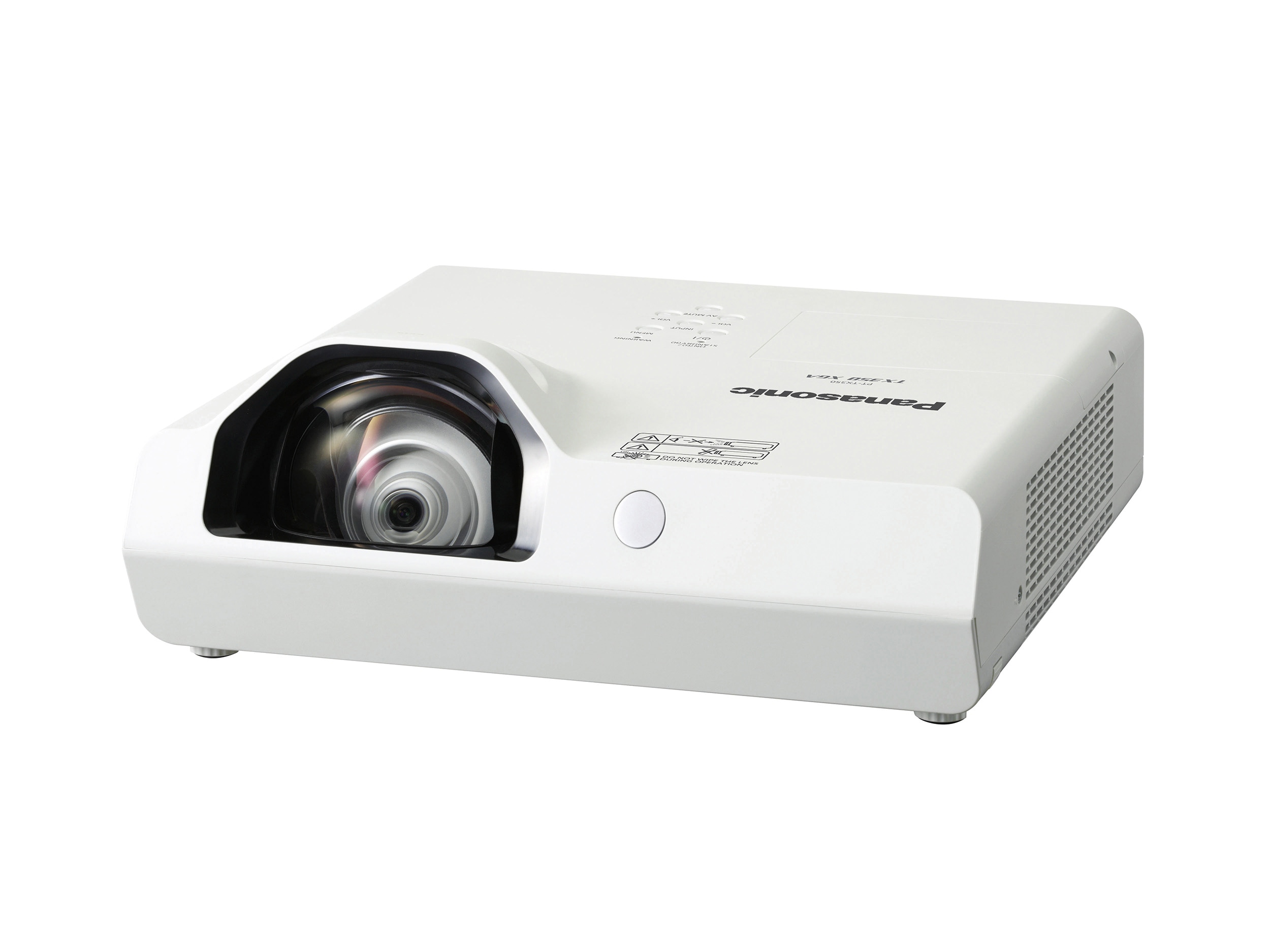

Panasonic PT-TX350
| Brand | Panasonic · PT-TW381R Series |
| Type | Education |
| Status | Discontinued |
| Released | May 2020 |
| Resolution | 1024 × 768 |
| Imaging technology | 3LCD |
| Light source | Lamp |
| Brightness | 3,200 lm ISO |
| Throw ratio | 0.46:1 |
A 3LCD lamp projector for classrooms and meeting rooms with a fixed short-throw lens. 1024x768 panels give a rated 3,200 lumens, an 80-inch 4:3 image from 0.75 m, two HDMI inputs and a 10 W speaker.
Data sheet
| White light output | 3,200 lm ISO (Normal power, Dynamic mode) · 3,200 lm ANSI PICTURE MODE DYNAMIC, LAMP POWER NORMAL, AUTO POWER SAVE OFF, DAYLIGHT VIEW OFF | PICTURE MODE DYNAMIC, LAMP POWER NORMAL, AUTO POWER SAVE OFF, DAYLIGHT VIEW OFF |
| Brightness uniformity | 85% | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.63 in | |
| Native resolution | 1024 × 768 | |
| Native aspect | 4:3Derived | |
| Dynamic contrast | 20,000:1 | |
| Colour bit depth (per channel) | 8 bit |
Light source
| Light source | Lamp | |
| Lamp power | 230 W | |
| Replacement lamp | ET-LAL510 | |
| Light-source life | 10,000 h normal · 20,000 h eco | |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 0.46:1100″ · 0.93 m | |
| Image size | 50–100 in | |
| Zoom | None | |
| Focal length | 6.08 mm | |
| Aperture (f-number) | 1.8 | |
| Focus | Manual | |
| Vertical keystone | 15° | |
| Horizontal keystone | 15° | |
| Auto keystone | Yes | |
| Corner correction | 4-corner | |
| Grid warp | Yes | |
| Interchangeable lens | No |
Inputs & control
| Other video inputs | VGA, Composite | |
| Audio inputs | 3.5 mm, RCA | |
| USB media playback | Yes | |
| Control ports | RS-232 | |
| PJLink | Class 2 |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 10 W | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 335 × 329 × 134 mm | |
| Weight | 3,900 g | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4, 10 mm deep, 1.25 N·m | |
| Dust filter | Replaceable |
Environment & power
| Operating temperature | 5–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 2,700 m | |
| Power draw | Max 300 W | |
| Standby | 0.5 W STANDBY MODE ECO | STANDBY MODE ECO |
| Power supply | Built in | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 38 dB(A) · Eco 35 dB(A) |
Safety & support
| Marks | FCC | |
| User manual | bizpartner.panasonic.net | |
| Spare parts | Lamp ET-LAL510 · Air filter ET-RFL300 |
In the box
| In the box | Power cord, Remote, Remote batteries |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
ViewSonic LS625W WXGA · DLP | WXGA | DLP | 3,200 | $1,389 | Compare |
ViewSonic LS625X 1024 × 768 · DLP | 1024 × 768 | DLP | 3,200 | $1,199 | Compare |
Promethean UST-P3 WXGA · DLP | WXGA | DLP | 3,150* −50 | $49 | Compare |
NEC NP-UM330X 1024 × 768 · 3LCD | 1024 × 768 | 3LCD | 3,300 +100 | $1,099 | Compare |
ViewSonic PS700W WXGA · DLP | WXGA | DLP | 3,300 +100 | $1,256 | Compare |
Panasonic PT-TW380 WXGA · 3LCD | WXGA | 3LCD | 3,300 +100 | — | Compare |
Other
Tools
- Throw calculator — How far from the screen the PT-TX350 needs to sit for a given image size, set to its 0.46:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| White, US | 🇺🇸 US | MPN | PT-TX350U |
Also known as
| PT-TX350U | 🇺🇸 US | Regional model |
| PT-TX350E | Worldwide | Regional model |
