Panasonic PT-VMQ75
| Brand | Panasonic · Portable LCD Projectors |
| Type | Business |
| Resolution | 3840 × 2400 (WUXGA pixel shift) |
| Imaging technology | 3LCD |
| Light source | Laser (phosphor) |
| Brightness | 7,300 lm ISO |
| Throw ratio | 1.09–1.77:1 |
A portable 3LCD laser projector with a 0.64-inch 1920x1200 (WUXGA, 16:10) panel and 2-axis pixel shifting to 3840x2400, rated 7,300 lumens (ISO/IEC 21118 and ANSI). It has a 1.6x manual zoom lens with manual vertical and horizontal lens shift, two HDMI inputs with HDCP 2.3, HDBaseT (DIGITAL LINK), a 10 W mono speaker and a washable filter. It is the middle model of a three-projector series, between the PT-VMQ85 and PT-VMQ65.
Data sheet
| White light output | 7,300 lm ISO · 7,300 lm ANSI PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF | PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF |
| Brightness uniformity | 85% | |
| Brightness by mode | Normal 7,300 lm · Eco 5,100 lm PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF | PICTURE MODE DYNAMIC, LIGHT POWER NORMAL, DAYLIGHT VIEW OFF, AUTO POWER SAVE OFF |
| Eco brightness | 70%Derived | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.64 in | |
| Native resolution | WUXGA (1920 × 1200) | |
| Native aspect | 16:10Derived | |
| Pixel shift | Yes (scheme not stated) | |
| Addressable resolution | 3840 × 2400 | |
| Dynamic contrast | 5,000,000:1 PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 1 | PICTURE MODE DYNAMIC, DYNAMIC CONTRAST 1 |
| Colour bit depth (per channel) | 10 bit | |
| 3D | No |
Light source
| Light source | Laser (phosphor) | |
| Light-source life | 20,000 h normal · 24,000 h eco | |
| Life defined as | 50% brightness |
Optics
| Throw ratio | 1.09–1.77:1100″ · 2.35–3.81 m | |
| Image size | 30–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.62×Derived | |
| Focal length | 15.3–24.6 mm | |
| Aperture (f-number) | 1.58–1.91 | |
| Focus | Manual | |
| Autofocus | No | |
| Vertical lens shift | 0–44% | |
| Horizontal lens shift | ±20% | |
| Motorised lens shift | No | |
| Interchangeable lens | No |
Inputs & control
| HDMI inputs | 2 × HDMI (HDCP 2.3) | |
| Other video inputs | HDBaseT | |
| Max input resolution | DCI 4K | |
| Audio inputs | 3.5 mm | |
| USB media playback | Yes | |
| Control ports | RS-232 | |
| PJLink | Class 2 | |
| Control-system drivers | Crestron, AMX |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 10 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 399 × 348 × 133 mm | |
| Weight | 7,000 g | |
| Colours | Black, White | |
| Orientations | Table, Ceiling, Rear, 360° | |
| Ceiling mount | M4, 8 mm deep, 1.25 N·m | |
| Dust filter | Washable |
Environment & power
| Operating temperature | 0–45°C | |
| Operating humidity | 20–80%RH | |
| Altitude | 2,700 m | |
| Power draw | Max 350 W · Normal 315 W · Eco 240 W | |
| Standby | 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Normal 37 dB(A) · Eco 37 dB(A) |
Safety & support
| Laser class | Class 1 | |
| Risk group | RG2 | |
| User manual | pim-api.connect.panasonic.com |
In the box
| In the box | Power cord, Remote, Remote batteries |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Epson PowerLite L790U WUXGA · 3LCD | WUXGA | 3LCD | 7,300 | $4,502 | Compare |
Panasonic PT-VMZ72 WUXGA · 3LCD | WUXGA | 3LCD | 7,300 | — | Compare |
Panasonic PT-VMZ71 WUXGA · 3LCD | WUXGA | 3LCD | 7,000 −300 | $3,291.49 | Compare |

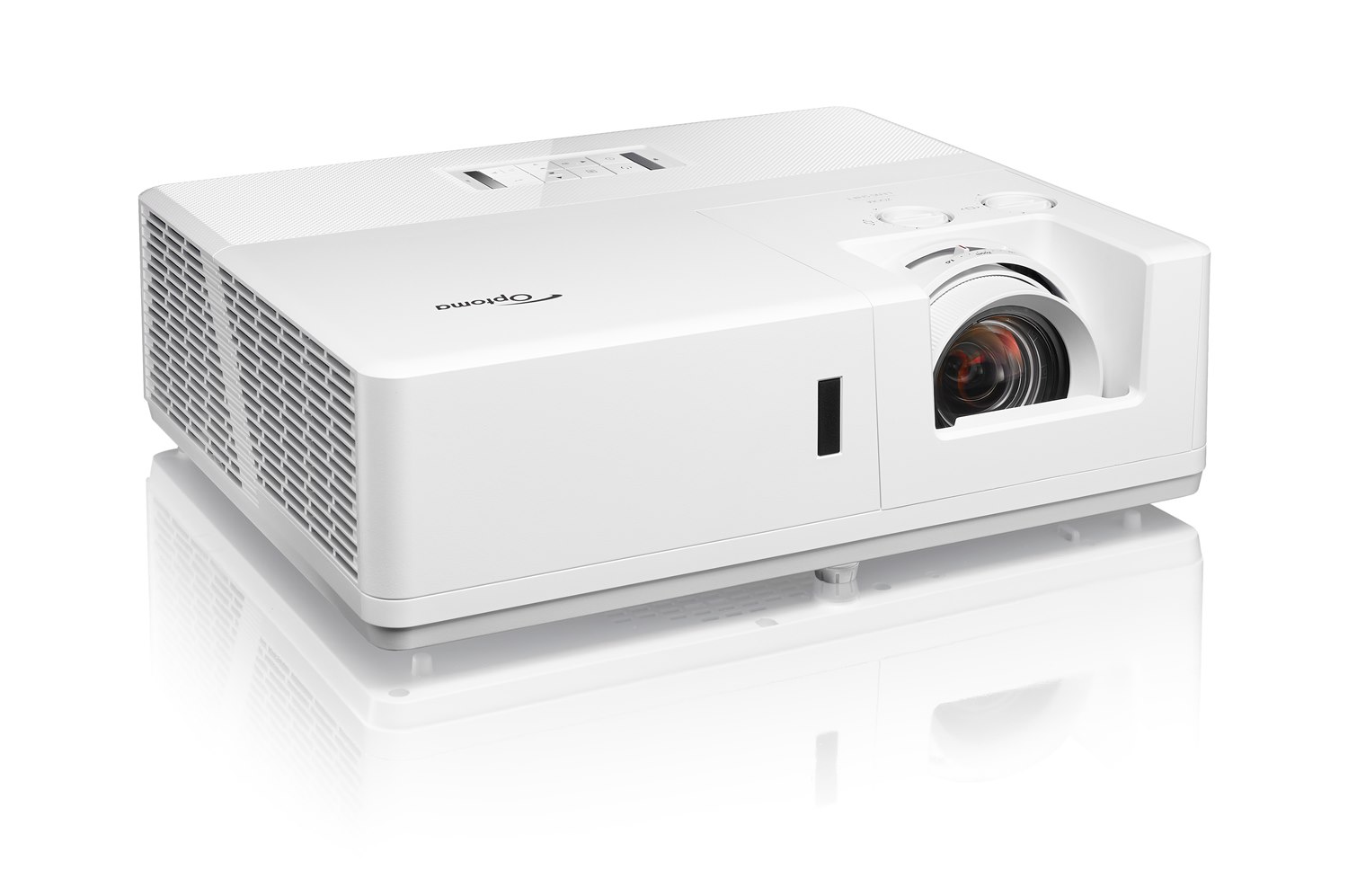

Optoma ZU707T WUXGA · DLP | WUXGA | DLP | 7,000* −300 | $5,699 | Compare |
