Sony VPL-EW575
| Brand | Sony |
| Type | Business |
| Status | Discontinued |
| Released | May 2017 |
| Resolution | WXGA |
| Imaging technology | 3LCD |
| Light source | Lamp |
| Claimed brightness (non-standard) | 4,300 lm |
| Throw ratio | 1.1–1.79:1 |
A 3LCD WXGA lamp projector for classrooms and meeting rooms, with a 1.6x manual zoom lens, two HDMI inputs, LAN networking and a 16 W mono speaker. Sony rates it at 4,300 lm in High lamp mode. It was discontinued in December 2022.
Data sheet
| Colour light output | 4,300 lm (Max power) | |
| Claimed brightness (non-standard) | 4,300 lm Lamp Mode set to High | Lamp Mode set to High |
| Brightness by mode | Max 4,300 lm · Normal 3,200 lm · Eco 2,400 lm | |
| Eco brightness | 56%Derived | |
| Imaging technology | 3LCD | |
| Chip / panel diagonal | 0.75 in | |
| Native resolution | WXGA (1280 × 800) | |
| Native aspect | 16:10Derived |
Light source
| Light source | Lamp | |
| Lamp power | 225 W | |
| Replacement lamp | LMP-E221 | |
| Light-source life | 4,000 h max · 6,000 h normal · 10,000 h eco |
Optics
| Throw ratio | 1.1–1.79:1100″ · 2.37–3.86 m | |
| Image size | 30–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.63×Derived | |
| Focus | Manual | |
| Vertical keystone | 20° | |
| Auto keystone | Yes | |
| Interchangeable lens | No |
Inputs & control
| HDMI inputs | 2 × HDMI | |
| Other video inputs | VGA, Component, Composite | |
| Max input resolution | 1600 × 1200 | |
| Audio inputs | 3.5 mm, Microphone | |
| Control ports | RS-232 |
Audio
| Speaker power | 16 W | |
| Speakers | 1 | |
| Layout | Mono | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 365 × 252 × 96.2 mm | |
| Weight | 4,100 g |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 20–80%RH | |
| Altitude | High-altitude mode | |
| Power draw | Max 332 W · Normal 270 W · Eco 233 W AC 100 V to 120 V; lamp mode High / Standard / Low | AC 100 V to 120 V; lamp mode High / Standard / Low |
| Standby | 0.5 W | |
| Networked standby | 5.5 W AC 100 V to 120 V, Standby Mode set to Standard | AC 100 V to 120 V, Standby Mode set to Standard |
| Mains input | 100–240 V · 50/60 Hz |
Safety & support
| Warranty | 🇺🇸 US 3 yr | |
| Spare parts | Lamp LMP-E221 |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, User manual, VGA cable, Software CD |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
Optoma ZH420 1080p · DLP | 1080p | DLP | 4,300* | $1,799 −$101 | Compare |

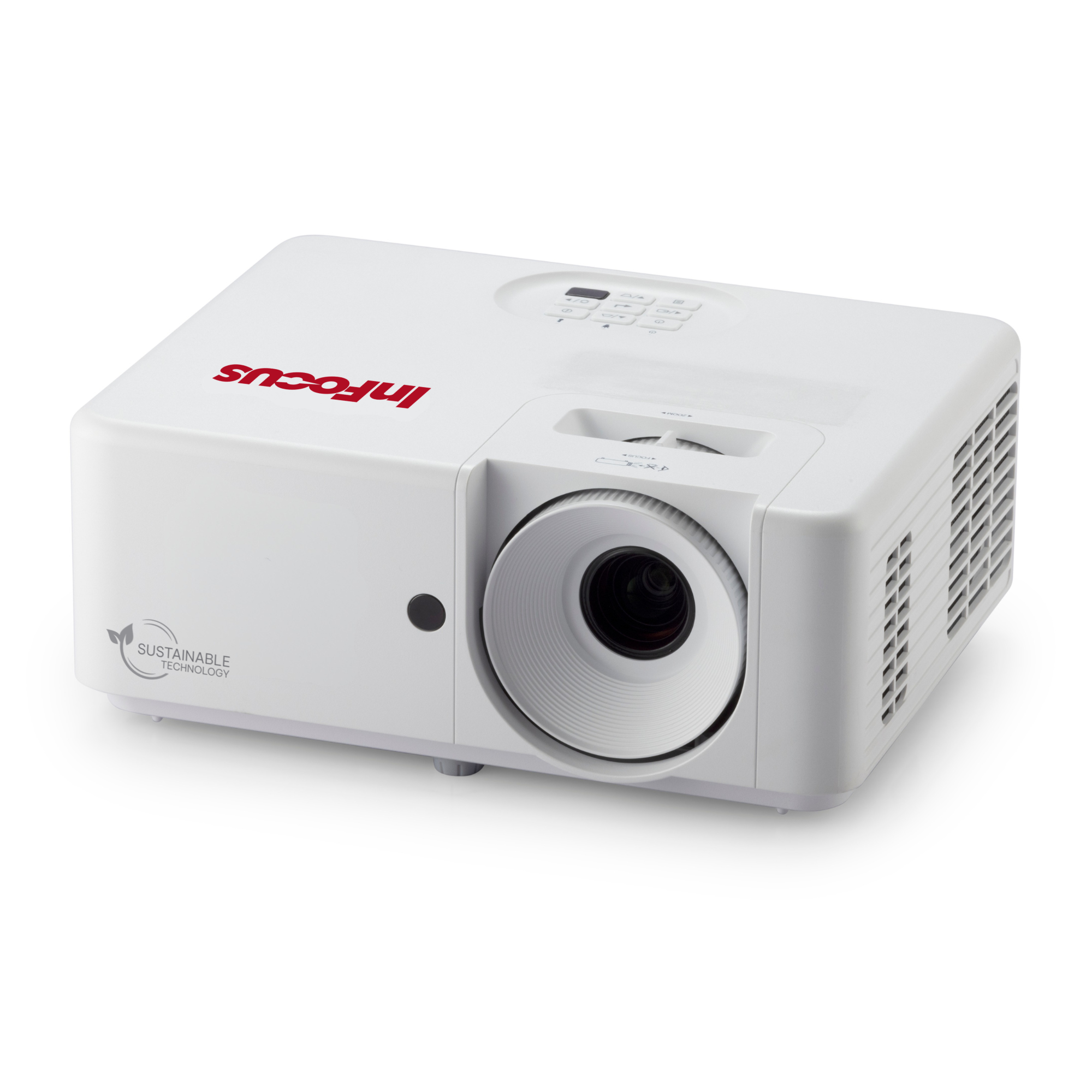

InFocus IN1108SL 1080p · DLP | 1080p | DLP | 4,300* | — | Compare |
