ViewSonic PG800HD
| Brand | ViewSonic |
| Type | Installation |
| Status | Discontinued |
| Released | November 2017 |
| Resolution | 1080p |
| Imaging technology | DLP |
| Light source | Lamp |
| Brightness | 5,000 lm ANSI |
| Throw ratio | 1.15–1.5:1 |
A lamp-based single-chip DLP projector with a 0.65-inch 1080p chip, rated at 5,000 ANSI lumens, aimed at large venues, classrooms and business installations. It has a 1.3x manual zoom, vertical lens shift on a centred lens, two HDMI inputs (one in the PortAll compartment), a LAN port with Crestron, AMX and PJLink support, and two 10 W speakers.
Data sheet
| White light output | 5,000 lm ANSI | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.65 in | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Colour wheel segments | 6 | |
| Dynamic contrast | 5,000:1 | |
| Colour bit depth (per channel) | 10 bit | |
| 3D | Yes | |
| 3D formats | Frame packing, Side-by-side, Top-bottom, Frame sequential |
Light source
| Light source | Lamp | |
| Lamp power | 370 W | |
| Replacement lamp | RLC-103 | |
| Light-source life | 2,000 h normal · 2,500 h dynamic |
Optics
| Throw ratio | 1.15–1.5:1100″ · 2.55–3.32 m | |
| Image size | 30–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.3×Derived | |
| Focus | Manual | |
| Vertical lens shift | 0–7% | |
| Vertical keystone | 40° | |
| Auto keystone | Yes |
Motion & gaming
| Max input refresh | 1080p: 60 Hz |
Inputs & control
| HDMI inputs | 2 × HDMI 1.4 | |
| Other video inputs | VGA, Component, Composite | |
| Max input resolution | WUXGA | |
| Audio inputs | 3.5 mm, RCA, Microphone | |
| Control ports | RS-232, 12 V trigger | |
| Control-system drivers | Crestron, AMX |
Smart platform
| Ethernet | Yes |
Audio
| Speaker power | 20 W | |
| Speakers | 2 | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 470 × 316 × 140 mm | |
| Weight | 6,200 g | |
| Orientations | Table, Ceiling, Rear | |
| Ceiling mount | M4, screws ≤ 8 mm |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 10–90%RH | |
| Altitude | 3,000 m · high-altitude mode | |
| Power draw | Max 574 W · Eco 469 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz |
Safety & support
| Marks | CE, FCC | |
| Warranty | 🇺🇸 US 3 yr (light source 1 yr) | |
| User manual | viewsonicglobal.com |
In the box
| In the box | Power cord, Remote, Remote batteries, Quick start guide, VGA cable |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
LG CineBeam GRU510N 4K UHD · DLP | 4K UHD | DLP | 5,000 | $3,965.55 +$2,517 | Compare |
NEC NP-P525WL WXGA · 3LCD | WXGA | 3LCD | 5,000 | $5,599 +$4,150 | Compare |
Sony VPL-CWZ10 WXGA · 3LCD | WXGA | 3LCD | 5,000* | — | Compare |
Sony VPL-PHZ50 WUXGA · 3LCD | WUXGA | 3LCD | 5,000 | $2,250 +$801 | Compare |
ViewSonic LS750WU WUXGA · DLP | WUXGA | DLP | 5,000 | $2,565 +$1,116 | Compare |

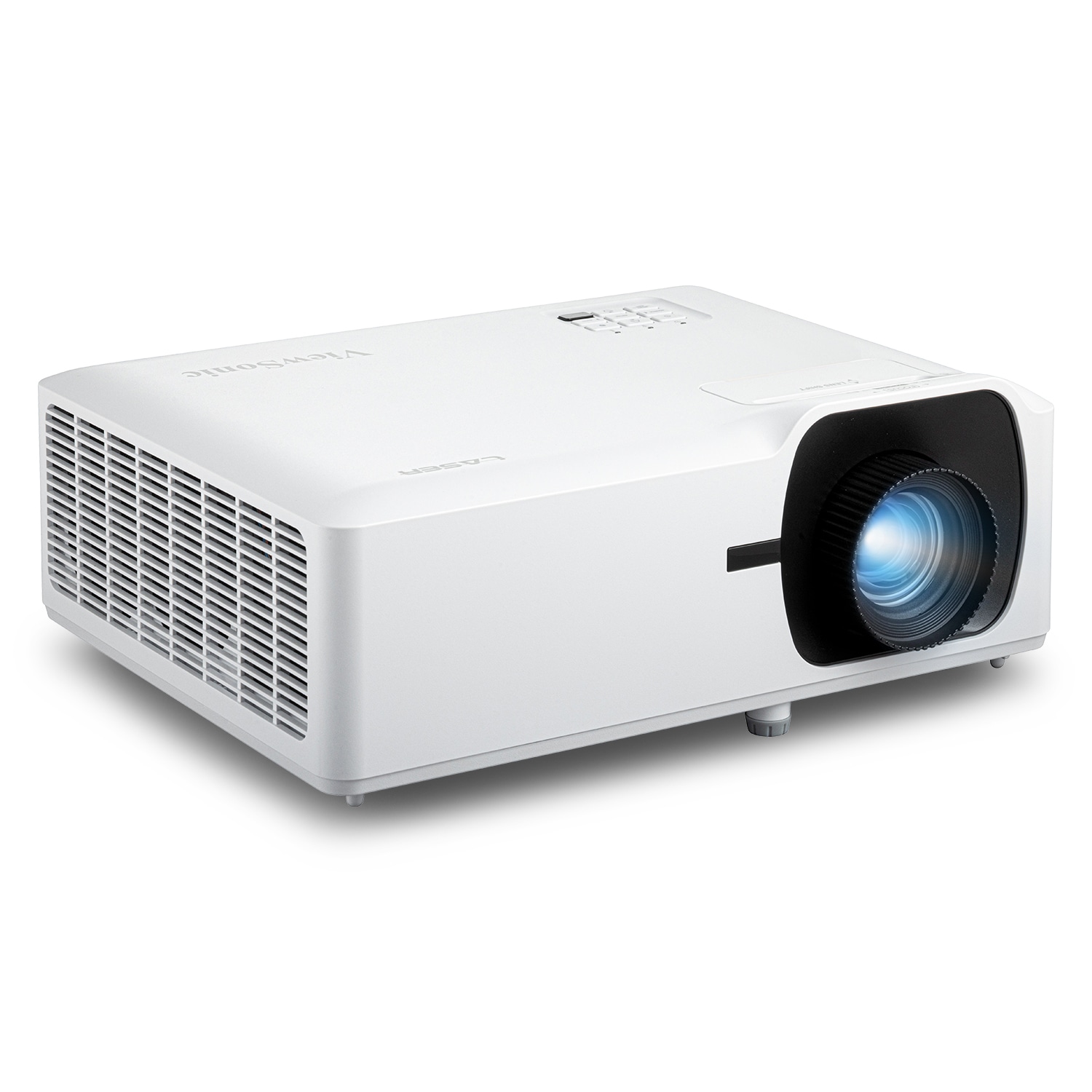

ViewSonic LS751HD 1080p · DLP | 1080p | DLP | 5,000 | $1,599 +$150 | Compare |
