NEC NP-P525WL

MSRP$5,599

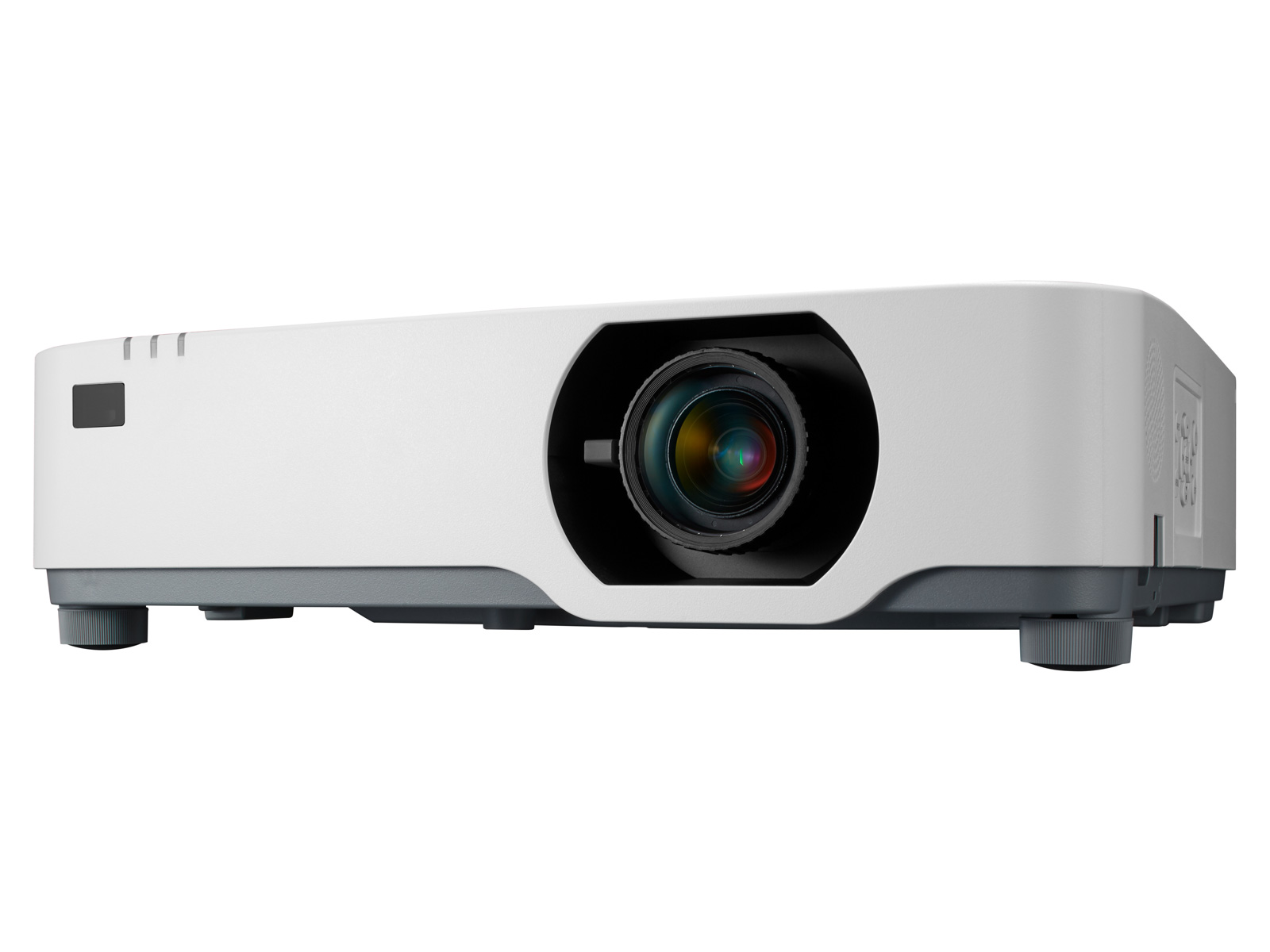

White NEC P-Series laser projector (shared P525UL/P525WL/P605UL picture), front three-quarter view from the upper left, showing the black lens surround and zoom lens

Brand	NEC · P Series
Type	Installation
Status	Discontinued
Released	January 2019
Resolution	WXGA
Imaging technology	3LCD
Light source type	Laser (phosphor)
ISO light output	5,000 lm
Throw ratio	1.23–2:1

A 3LCD laser projector for conference rooms, classrooms and fixed installs, with a 1280x800 panel, a rated 5,000 lumens and a 1.6x manual zoom lens with lens shift. It has two HDMI inputs, HDBaseT, a 20 W mono speaker and a sealed, filter-free engine rated for 20,000 hours.

Data sheet


Imaging technology	3LCD
Technology brand	3LCD
Number of imaging devices	3
Chip / panel diagonal	0.64 in
Native aspect ratio	16:10
Native resolution	1280 × 800
Optical system description	Optical isolation by dichroic mirror, combining by dichroic prism
Panel alignment / convergence control	None
Dynamic contrast	500,000:1
Bit depth / 'number of colours'	10 bit
Max HDR input	none
Max refresh rate	3840×2160: 30 Hz

Optics

Throw ratio	1.23–2:1
Projection distance table	30″: 0.77–1.26 m · 40″: 1.03–1.69 m · 60″: 1.56–2.55 m · 80″: 2.1–3.41 m · 90″: 2.36–3.84 m · 100″: 2.63–4.27 m · 120″: 3.16–5.13 m · 150″: 3.96–6.43 m · 180″: 4.76–7.72 m · 200″: 5.3–8.58 m · 250″: 6.36–10.3 m · 270″: 7.16–11.59 m · 300″: 7.96–12.89 m
Zoom type	Optical
Zoom ratio	1.6×
Focus	Manual
Vertical lens shift	0–60%
Horizontal lens shift	±29%
Motorized lens shift	No
Focal length	17.2–27.6 mm
F-number	1.5–2.1
Image size range	30–300 in
Vertical keystone	-30–30°
Horizontal keystone	-30–30°
Corner / warp correction	4pt

Light source

Light source type	Laser (phosphor)
Light source detail	Blue Laser Diode
Light source life	Normal: 20,000 h
Life definition	50% brightness
Constant brightness mode	Yes
Light-source dimming	Continuous
ISO light output	5,000 lm ISO 21118 · High bright mode · ECO MODE OFF and PRESET HIGH-BRIGHT (footnote *3)	ISO 21118 · High bright mode · ECO MODE OFF and PRESET HIGH-BRIGHT (footnote *3)
Claimed brightness (non-standard)	5,200
Claimed brightness unit	Unspecified
Brightness by mode	High bright: 4,395 lm · Presentation: 3,995 lm · Video: 3,580 lm · Movie: 3,265 lm · Graphic: 3,515 lm · Srgb: 3,150 lm · Dicom sim: 3,390 lmMeasured Normal (Eco off), lens at wide angle	Normal (Eco off), lens at wide angle

Audio

Speaker power	20 W
Speaker count	1
Audio channels	Mono
Audio outputs	3.5 mm

Inputs, control & connectivity

Max input signal	3840 × 2160
HDMI port count	2
HDMI ports (feature-level)	HDMI 1: HDMI 1.4; HDMI 2: HDMI 1.4
Audio input terminals	3.5 mm
Horizontal scan frequency	15–153 kHz
Vertical scan frequency	24–120 Hz
HDBaseT	Yes
VGA input	Yes
USB media playback	Yes
RS-232	Yes
LAN control	Yes
Control ecosystem drivers	Crestron
Ethernet	Yes

Environment & power

Operating temperature	5–40°C
Operating humidity	20–80%RH
Altitude / high-altitude mode	2,600 m
High-altitude mode	Yes
Operating orientations	Table, Ceiling, Rear, Portrait, 360°
Rated voltage	100–240 V
Rated frequency	50–60 Hz
Power consumption (max)	320 W
Power consumption by mode	Eco off: 320 W · Eco: 232 W · Long life: 234 W
Standby power	0.19 W
Networked standby power	1.6 W
Fan noise (sound pressure)	Eco: 22 dB(A) · Normal: 24 dB(A) · High bright: 27 dB(A)

Physical & installation

Width	480 mm
Depth	407 mm
Height	122 mm
Weight	9.7 kg
Exhaust / intake direction	Side
Colours / finishes	White
Sealed optical engine	Yes
Air filter	None

Support & ownership

Warranty	🇪🇺 EU 3 yr · 🇺🇸 US 5 yr US dealer text and ProjectorCentral give 5 years (ProjectorCentral: "5-year or 20,000-hour warranty covering projector and light source"); the EU datasheet gives 3 years.
Light-source warranty	3 years or 10000h (whatever comes first) (EU)
Photobiological risk group	RG2
Laser product class	Class 1 (IEC 60825-1 Ed. 3); Class 2 (IEC 60825-1 Ed. 2, USA)
FDA variance	Laser Notice No. 50, dated June 24, 2007
Safety & market certifications	CE

In the box

Box contents	Batteries aaa x2, Remote control, Vga cable, Power cord, Quick setup guide, Security sticker, Users manual, Utility software
Remote type	IR
