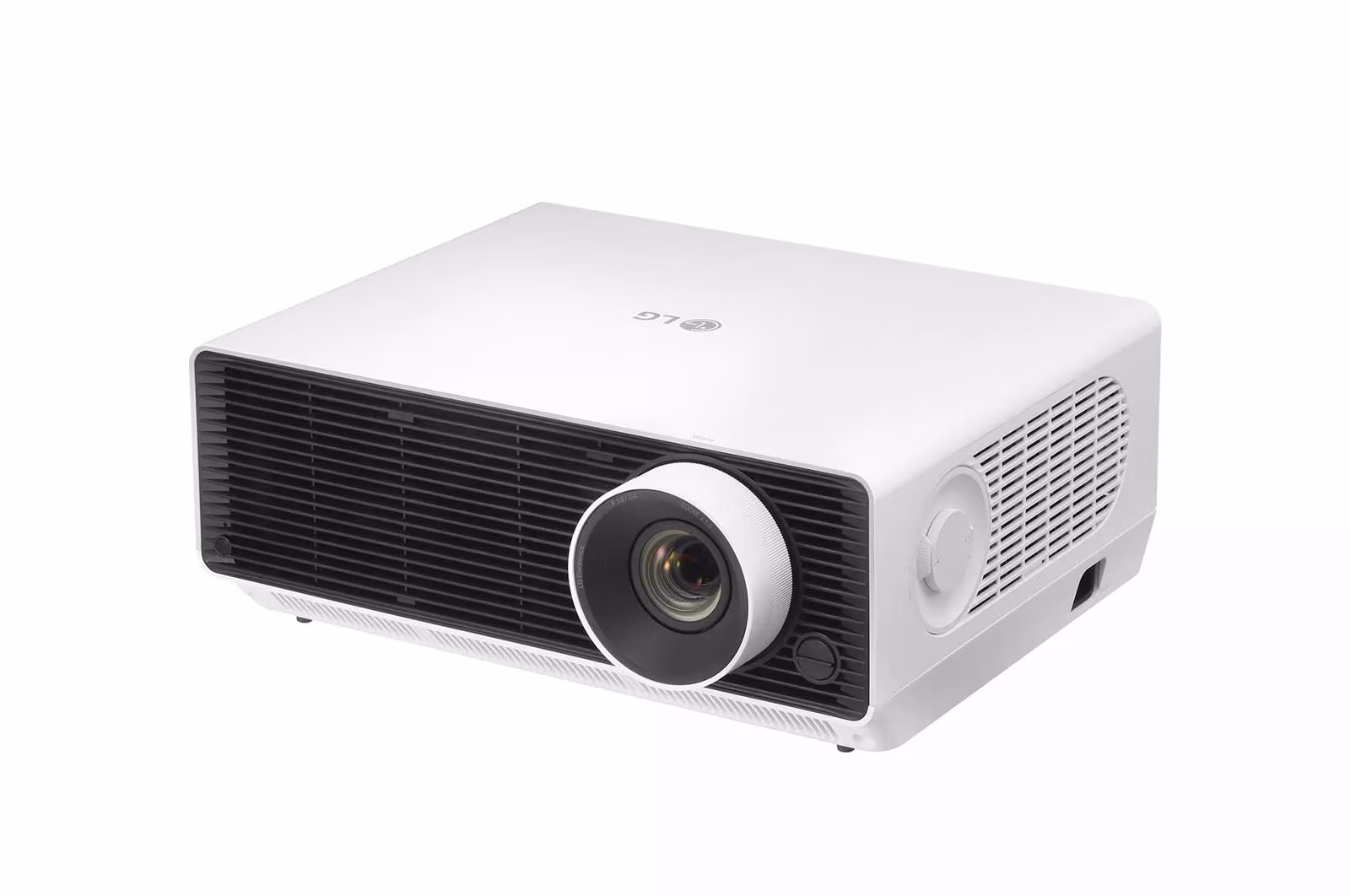

LG CineBeam GRU510N
MSRP$3,999.99
| Brand | LG |
| Type | Installation |
| Status | Discontinued |
| Resolution | 4K UHD |
| HDR formats | HDR10 |
| Imaging technology | DLP |
| Light source type | Laser (phosphor) |
| ANSI lumens | 5,000 lm |
| Throw ratio | 1.3–2.09:1 |
A single-chip DLP blue-laser projector for installation use, showing 3840x2160 through XPR pixel shifting at a rated 5,000 ANSI lumens. It has a 1.6x manual zoom, manual lens shift of +/-50% vertical and +/-20% horizontal, 12-point edge adjustment, two HDMI inputs, HDBaseT, RS-232C and IP control, and a built-in 10 W stereo speaker pair.
Data sheet
| Imaging technology | DLP | |
| Native aspect ratio | 16:9 | |
| Addressable resolution | 3840 × 2160 | |
| Dynamic contrast | 3,000,000:1 | |
| Colour management system | 6-axis | |
| HDR formats | HDR10 | |
| Frame interpolation (MEMC) | Yes | |
| Max refresh rate | 1920×1080: 120 Hz · 3840×2160: 60 Hz |
Optics
| Throw ratio | 1.3–2.09:1Derived | |
| Projection distance table | 40″: 1.12–1.82 m · 60″: 1.71–2.76 m · 80″: 2.29–3.7 m · 100″: 2.88–4.63 m · 120″: 3.46–5.55 m · 140″: 4.04–6.49 m · 160″: 4.62–7.42 m · 180″: 5.21–8.36 m · 200″: 5.79–9.3 m · 220″: 6.38–10.23 m · 240″: 6.96–11.15 m · 260″: 7.54–12.1 m · 280″: 8.13–13.03 m · 300″: 8.71–13.97 m | |
| Zoom type | Optical | |
| Zoom ratio | 1.6× | |
| Focus | Manual | |
| Vertical lens shift | ±50% | |
| Horizontal lens shift | ±20% | |
| Motorized lens shift | No | |
| Image size range | 40–300 in | |
| Corner / warp correction | Warp |
Light source
| Light source type | Laser (phosphor) | |
| Light source detail | Blue laser module, 448 nm - 462 nm, approx. 95 W light output; laser diode plus phosphor wheel | |
| Light source life | Up to: 20,000 h | |
| ANSI lumens | 5,000 lm ANSI | ANSI |
Audio
| Speaker power | 10 W | |
| Speaker count | 2 | |
| Audio channels | Stereo | |
| Audio outputs | 3.5 mm, HDMI ARC, Bluetooth | |
| HDMI ARC | Yes | |
| Bluetooth speaker mode | Yes | |
| Bluetooth audio out | Yes |
Inputs, control & connectivity
| Max input signal | 4096 × 2160 | |
| HDMI port count | 2 | |
| HDMI ports (feature-level) | HDMI 1: HDMI, HDCP 2.2; HDMI 2: HDMI, HDCP 2.2 | |
| HDBaseT | Yes | |
| USB media playback | Yes | |
| RS-232 | Yes | |
| LAN control | Yes | |
| Ethernet | Yes |
Firmware / software
| Casting | Miracast, DLNA |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 0–80%RH | |
| High-altitude mode | Yes | |
| Operating orientations | Table, Ceiling | |
| Rated voltage | 100–240 V | |
| Rated frequency | 50–60 Hz | |
| Power consumption (max) | 380 W | |
| Standby power | 0.5 W | |
| Power supply | Internal | |
| Fan noise (sound pressure) | Eco: 26 dB(A) · Normal: 27 dB(A) · High brightness: 29 dB(A) |
Support & ownership
| Warranty | 🇺🇸 US 2 yr Spec sheet also lists "Limited Warranty 2 Year Parts & Labor". | |
| User manual | https://www.projectorcentral.com/pdf/projector_manual_11330.pdf | |
| Photobiological risk group | RG2 | |
| Laser product class | Class 1 |
In the box
| Box contents | Projector, Remote, Batteries, Power cord, Warranty card | |
| Remote type | IR |
Tools
- Throw calculator — How far from the screen the CineBeam GRU510N needs to sit for a given image size, set to its 1.3–2.09:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Standard, US | 🇺🇸 US | ASIN | B08PMSTLXJ |
| UPC | 195174000540 | ||
| MPN | GRU510N.AUS | ||
| All variants | All regions | Model number | GRU510N-GL |
