ViewSonic X10-4KE
| Brand | ViewSonic |
| Type | Home cinema |
| Status | Discontinued |
| Released | December 2019 |
| Resolution | 4K UHD |
| Imaging technology | DLP |
| Light source | LED |
| Claimed brightness (non-standard) | 2,400 lm (LED lumens) |
| Throw ratio | 0.8:1 |
A portable single-chip DLP projector with an LED light source that makes a 3840x2160 image with TI XPR pixel shifting and is rated at 2,400 LED lumens. It has a fixed short-throw lens (0.8:1), two HDMI 2.0 inputs, a Wi-Fi dongle for streaming, and two 8 W Harman Kardon speakers, and suits living-room movie and streaming use.
Data sheet
| Claimed brightness (non-standard) | 2,400 lm (LED lumens) | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native aspect | 16:9Derived | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Colour gamut | Rec. 709 125% | |
| Colour bit depth (per channel) | 10 bit | |
| 3D | Yes |
Light source
| Light source | LED | |
| Light engine | RGBB LED | |
| Light-source life | 30,000 h |
Optics
| Throw ratio | 0.8:1100″ · 1.77 m | |
| Image size | 30–200 in | |
| Zoom | None | |
| Focus | Motorised | |
| Autofocus | Yes | |
| Vertical lens shift | None | |
| Horizontal lens shift | None | |
| Vertical keystone | 40° | |
| Auto keystone | Yes | |
| Interchangeable lens | No |
Motion & gaming
Inputs & control
| HDMI inputs | 2 × HDMI 2.0 (HDCP 2.2) | |
| Max input resolution | 4K UHD | |
| Audio inputs | 3.5 mm |
Audio
| Speaker power | 16 W | |
| Speakers | 2 | |
| Tuned by | Harman Kardon | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 261 × 271 × 166 mm | |
| Weight | 4,100 g |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 0–90%RH | |
| Power draw | 140 W | |
| Standby | Up to 0.5 W | |
| Mains input | 100–240 V · 50/60 Hz |
Safety & support
| Eye-protection sensor | Yes | |
| Marks | FCC | |
| Warranty | 🇺🇸 US 3 yr |
In the box
| In the box | Power cord, Remote, Quick start guide, USB cable, Wi-Fi dongle |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|

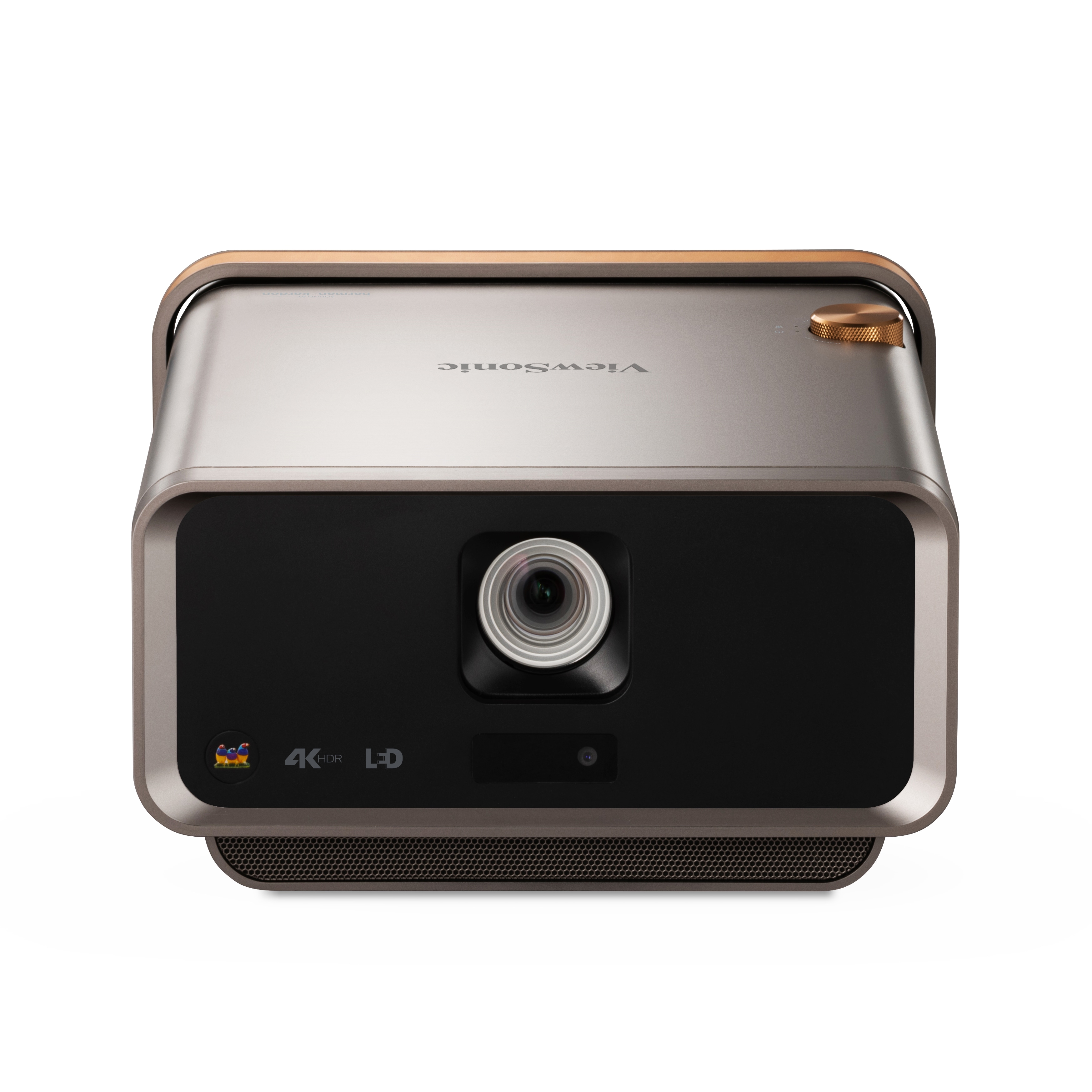

ViewSonic X11-4K 4K UHD · DLP | 4K UHD | DLP | 2,400* | $1,499 +$374 | Compare |
Dangbei DBOX02 4K UHD · DLP | 4K UHD | DLP | 2,450 +50 | $948.98 −$176 | Compare |
JVC DLA-NZ8 8192 × 4320 · LCoS | 8192 × 4320 | LCoS | 2,500* +100 | $15,999.95 +$14,875 | Compare |

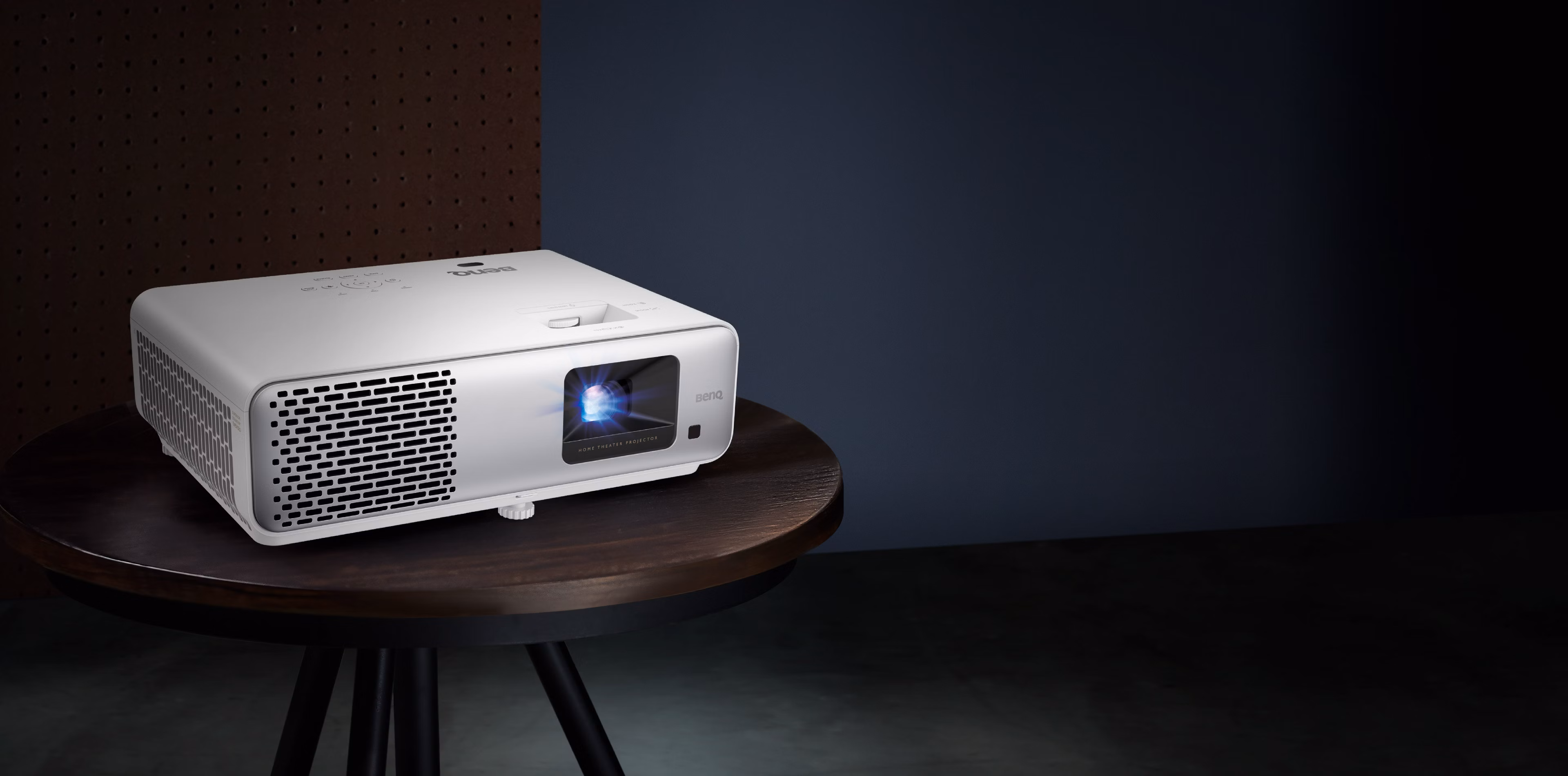

BenQ HT2060 1080p · DLP | 1080p | DLP | 2,300 −100 | $999 −$126 | Compare |
XGIMI HORIZON Ultra 4K UHD · DLP | 4K UHD | DLP | 2,300 −100 | $1,443.90 +$319 | Compare |

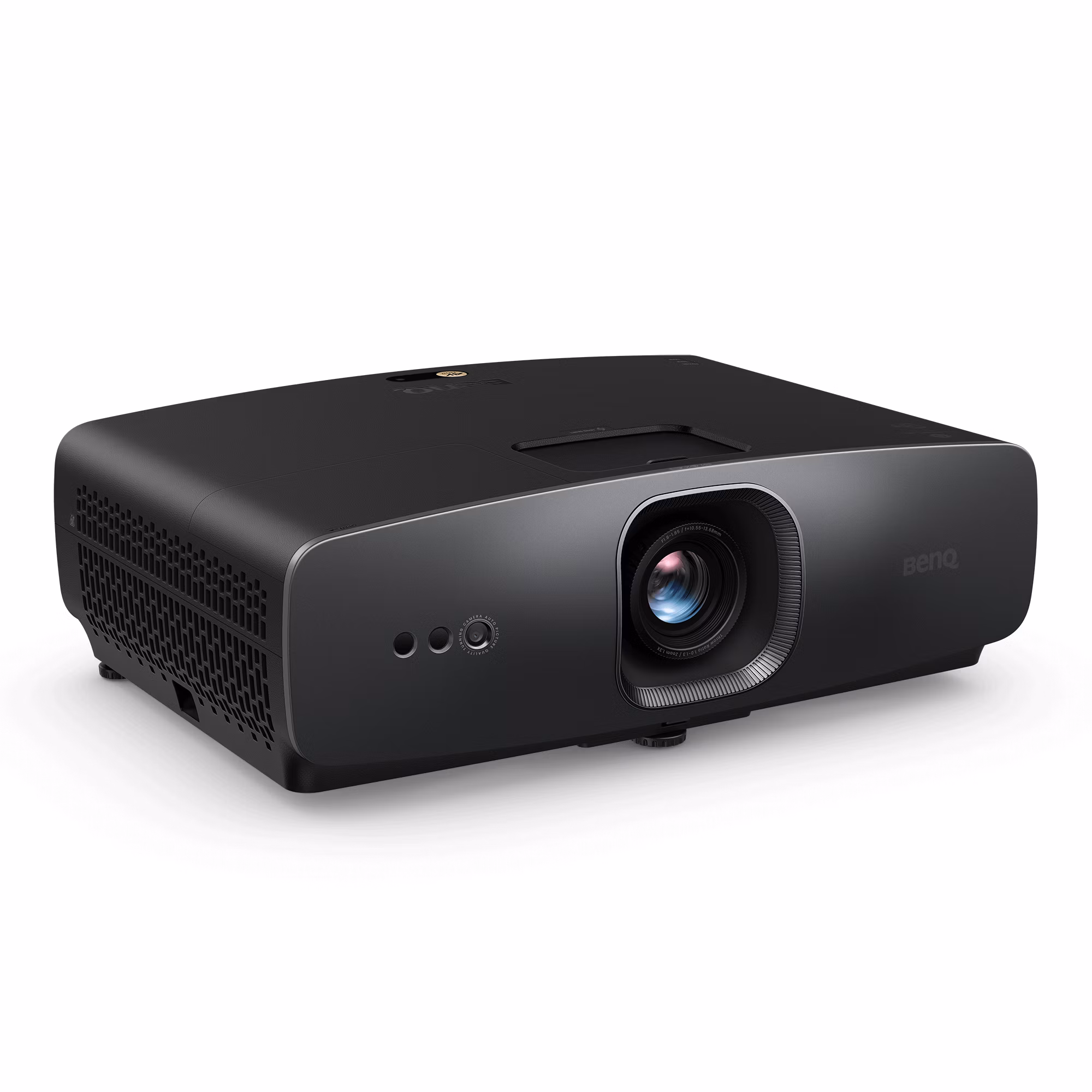

BenQ W2720i 4K UHD · DLP | 4K UHD | DLP | 2,500 +100 | $1,999 +$874 | Compare |
Other
Tools
- Throw calculator — How far from the screen the X10-4KE needs to sit for a given image size, set to its 0.8:1 lens.
- Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
- Download spec as JSON — The same data from the open data API, with variants and identifiers.
Variants & identifiers
Use these to confirm a listing is this exact model. Any of them works at /p/{code}.
| Variant | Region | Type | Code |
|---|---|---|---|
| Standard | 🇺🇸 US | UPC | 766907006803 |
| MPN | X10-4KE |
