Dangbei DBOX02

MSRP$1,899

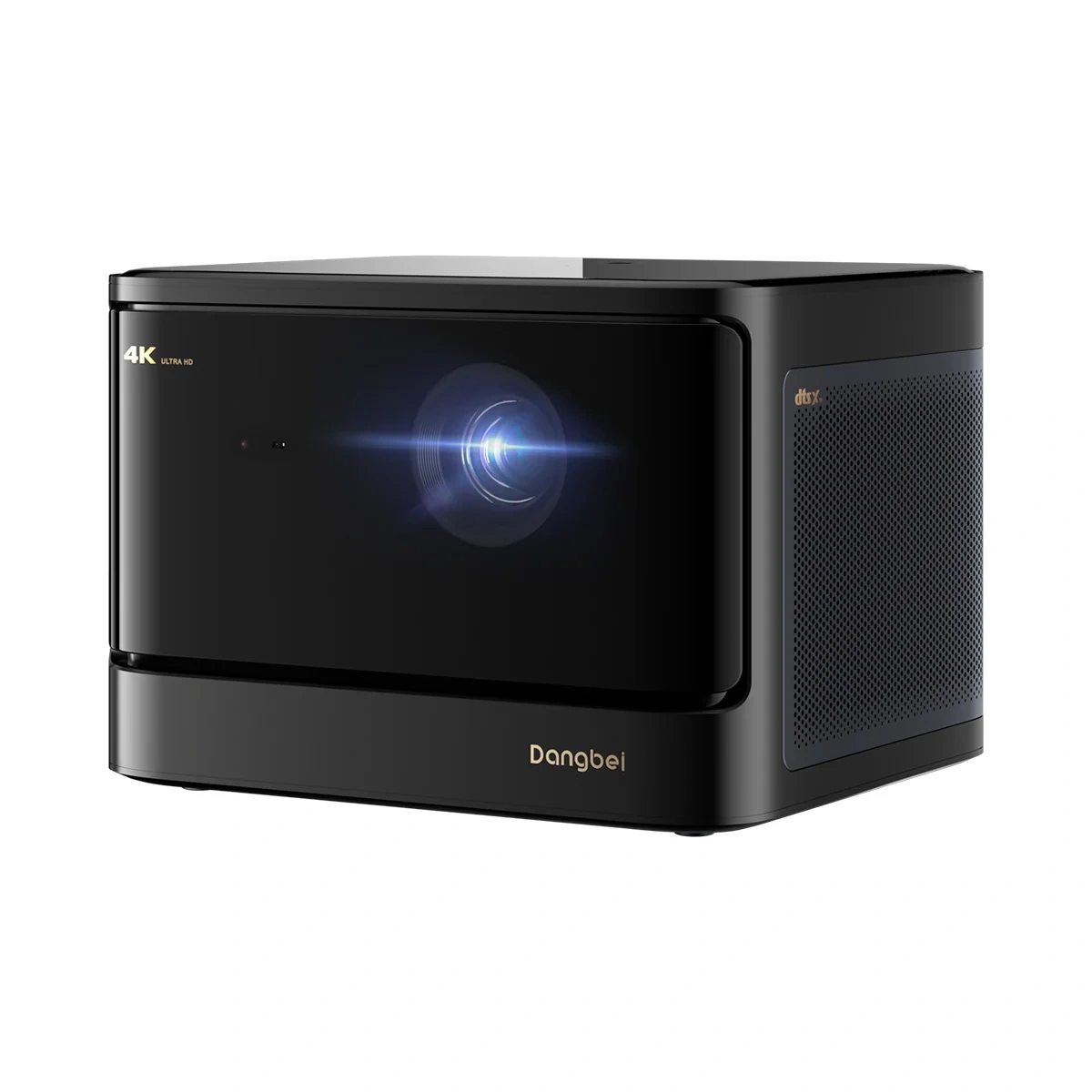

Black Dangbei DBOX02 projector, front three-quarter view showing the glossy front panel, lens with a blue glow and the perforated side grille

Brand	Dangbei · Mars Pro
Type	Home cinema
Resolution	4K UHD (1080p pixel shift)
HDR formats	HDR10, HDR10+, HLG
Imaging technology	DLP
Light source type	Laser (phosphor)
ISO light output	2,450 lm
Throw ratio	1.27:1

A laser DLP home projector with a 0.47-inch chip producing 3840x2160 output, rated at 2,450 ISO lumens, with a fixed 1.27:1 lens and a 100% projection offset. It runs Google TV with a licensed Netflix app, has two HDMI ports (one eARC), 2 x 12 W speakers and camera and ToF based auto focus, keystone, screen fit and obstacle avoidance.

Data sheet


Imaging technology	DLP
Number of imaging devices	1
Chip / panel diagonal	0.47 in
Native aspect ratio	16:9
Native resolution	1920 × 1080
Pixel shift	XPR 4-way
Addressable resolution	3840 × 2160
Bit depth / 'number of colours'	30 bit
HDR formats	HDR10, HDR10+, HLG
Frame interpolation (MEMC)	Yes
Max refresh rate	3840×2160: 60 Hz · 1920×1080: 240 Hz
3D support	Yes

Optics

Throw ratio	1.27:1
Projection distance table	80″: 2.2 m · 100″: 2.8 m · 120″: 3.37 m · 150″: 4.2 m
Zoom type	Digital
Focus	Auto
Vertical lens shift	0%
Horizontal lens shift	0%
Fixed offset	100%
Interchangeable lens	No
Image size range	60–200 in
Horizontal keystone	-30–30°
Corner / warp correction	4pt

Light source

Light source type	Laser (phosphor)
Light source detail	Laser (ALPD laser technology)
Light source life	Rated: 30,000 h
ISO light output	2,450 lm ISO 21118	ISO 21118

Audio

Speaker power	24 W
Speaker count	2
DTS	Yes
Audio outputs	3.5 mm, Optical
HDMI eARC	Yes
Bluetooth speaker mode	Yes

Inputs, control & connectivity

HDMI port count	2
HDMI ports (feature-level)	HDMI 1 (eARC): HDMI, eARC; HDMI 2: HDMI
USB media playback	Yes
Wi-Fi	Wi-Fi 6
Bluetooth version	5.2
Ethernet	Yes
Auto keystone	Yes
Screen fit / alignment	Yes
Obstacle avoidance	Yes
Eye-protection sensor	Yes

Firmware / software

Smart OS	Google TV
Netflix	Native
Casting	Chromecast built-in
RAM	2 GB
Storage	32 GB

Environment & power

Operating temperature	5–35°C
Operating orientations	Table, Ceiling, Rear
Rated voltage	100–240 V
Power consumption (max)	150 W
Power consumption by mode	Eco: 100 W · Standard: 130 W · Performance: 160 WMeasured
Power supply	External brick
Fan noise (sound pressure)	Standard: 24 dB(A)

Physical & installation

Width	236 mm
Depth	202 mm
Height	167 mm
Weight	3.98 kg
Exhaust / intake direction	Side
Tripod socket	Yes

Support & ownership

Warranty	🇺🇸 US 1 yr
User manual	https://cdn.shopify.com/s/files/1/0582/1127/0815/files/User_Guide_DBOX02_Multiple_Languages_V1.pdf?v=1729059904
Photobiological risk group	RG2
Laser product class	Class 1
Safety & market certifications	CE, UKCA

In the box

Box contents	Projector, Remote control, Aaa batteries, Power adapter, Power cable, Wipe cloth, User manual
Remote type	Bluetooth

Tools

Throw calculator — How far from the screen the DBOX02 needs to sit for a given image size, set to its 1.27:1 lens.
Download spec as CSV — Every value on this data sheet with its unit and source, one row per spec.
Download spec as JSON — The same data from the open data API, with variants and identifiers.

Variants & identifiers

Use these to confirm a listing is this exact model. Any of them works at /p/{code}.

Variant	Region	Type	Code
Black, US	🇺🇸 US	ASIN	B0D17LQ4PR
		UPC	795847572123
		MPN	DB-MSP2-2-US
All variants	All regions	Model number	DBOX02
