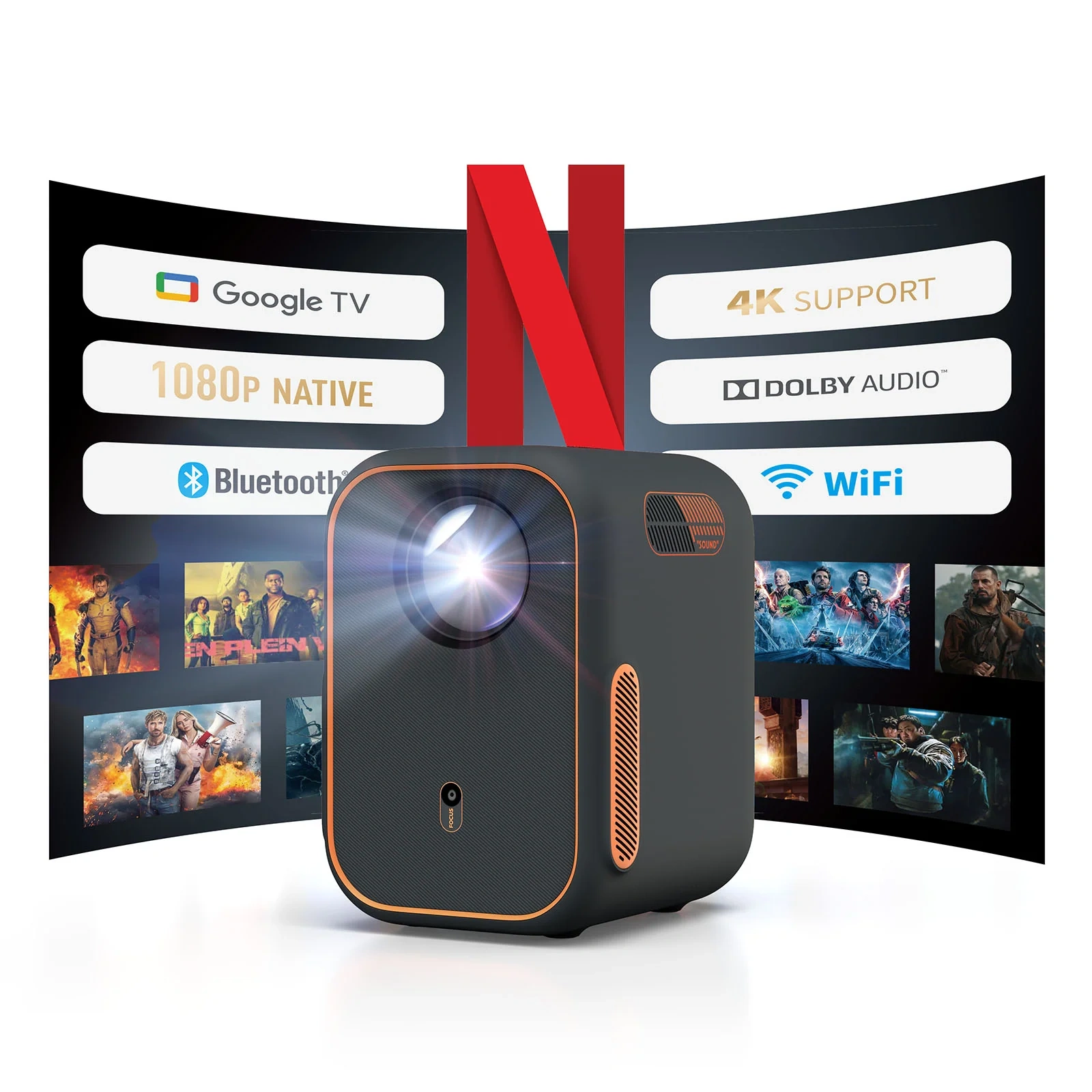

WEMAX VP01
| Brand | WEMAX · WEMAX Google TV |
| Type | Home cinema |
| Resolution | 1080p |
| HDR formats | HDR10 |
| Imaging technology | Single-panel LCD |
| Light source | LED |
| Claimed brightness (non-standard) | 150 lm |
| Throw ratio | 1.21:1 |
A compact single-panel LCD projector with a 1920x1080 native image, Google TV with licensed Netflix, auto focus and omni-directional auto keystone. It has one HDMI input, one USB port, a line out and 2 x 3 W speakers, and suits casual and portable home viewing rather than a dedicated cinema room.
Data sheet
| Claimed brightness (non-standard) | 150 lm | |
| Imaging technology | Single-panel LCD | |
| Native resolution | 1080p (1920 × 1080) | |
| Native aspect | 16:9Derived | |
| Colour bit depth (per channel) | 8 bit | |
| HDR formats | HDR10 |
Light source
| Light source | LED |
Optics
| Throw ratio | 1.21:1100″ · 2.68 m | |
| Image size | 40–120 in | |
| Focus | Motorised | |
| Autofocus | Yes | |
| Autofocus runs | When moved | |
| Auto keystone | Yes |
Inputs & control
Audio
| Speaker power | 6 W | |
| Speakers | 2 | |
| Audio formats | Dolby Audio | |
| Audio outputs | 3.5 mm | |
| HDMI audio return | NoneDerived |
Physical & installation
| Dimensions (W × D × H) | 122 × 141 × 175 mm | |
| Weight | 1,250 g | |
| Tripod socket | Yes |
Environment & power
| Operating temperature | 0–40°C | |
| Operating humidity | 20–80%RH | |
| Power draw | Max 65 W | |
| Standby | Up to 0.5 W | |
| Power supply | External adapter | |
| Mains input | 100–240 V | |
| Fan noise | Up to 30 dB(A) at 1 m | at 1 m |
Safety & support
| Marks | CE, UKCA, FCC | |
| Warranty | 🇺🇸 US 2 yr | |
| User manual | cdn.shopify.com |
In the box
| In the box | Power cord, Power adapter, Remote, User manual, Warranty card | |
| Remote | Voice |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
WEMAX VP01 1080p · Single-panel LCD | 1080p | Single-panel LCD | 150* | $209.99 +$10 | Compare |
TCL C2R 1080p · Single-panel LCD | 1080p | Single-panel LCD | 350 +200 | $239.99 +$40 | Compare |
Yaber U11 1080p · Single-panel LCD | 1080p | Single-panel LCD | 450 +300 | $196.97 −$3 | Compare |

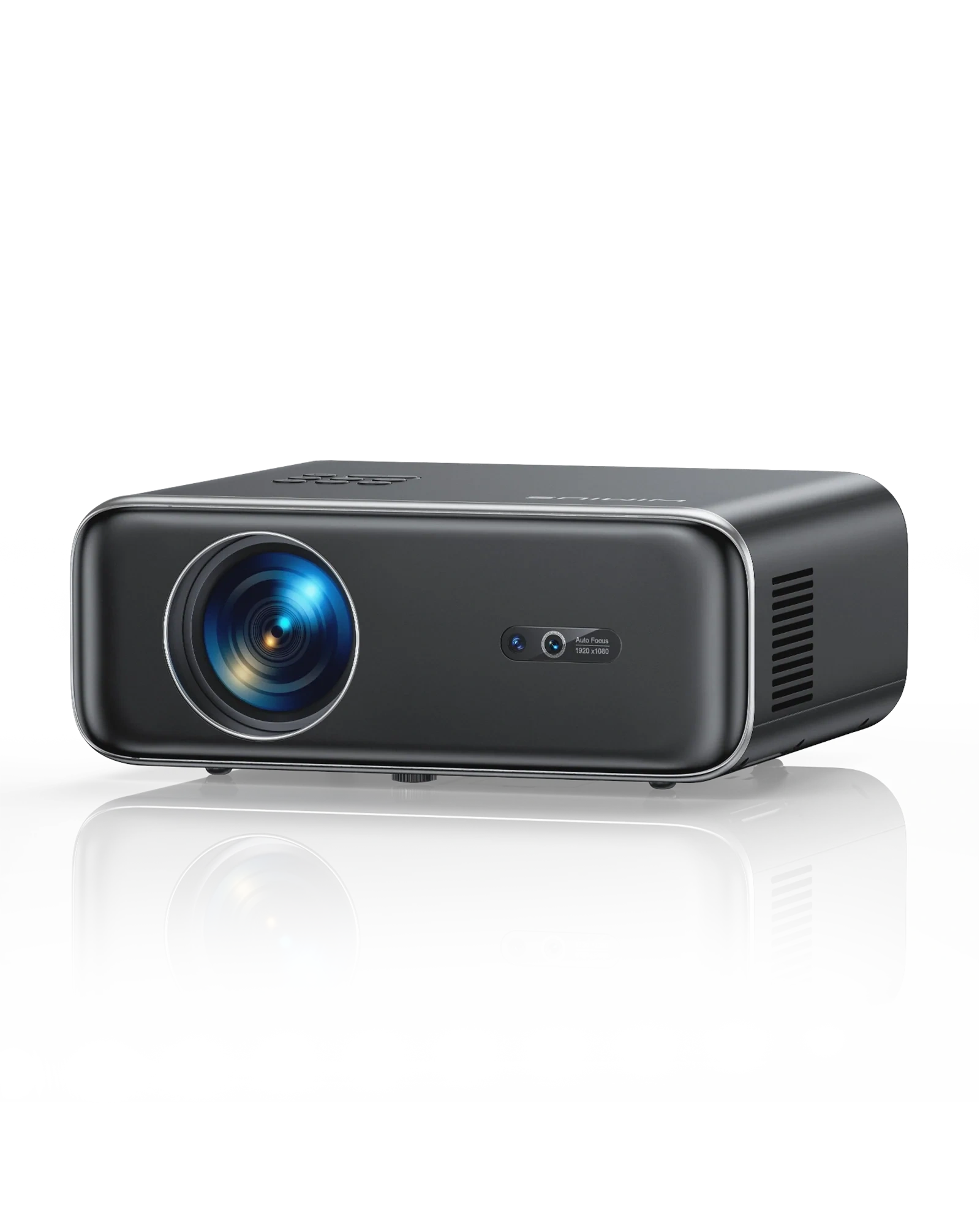

WiMiUS P62 Pro 1080p · Single-panel LCD | 1080p | Single-panel LCD | 600 +450 | $429.99 +$230 | Compare |

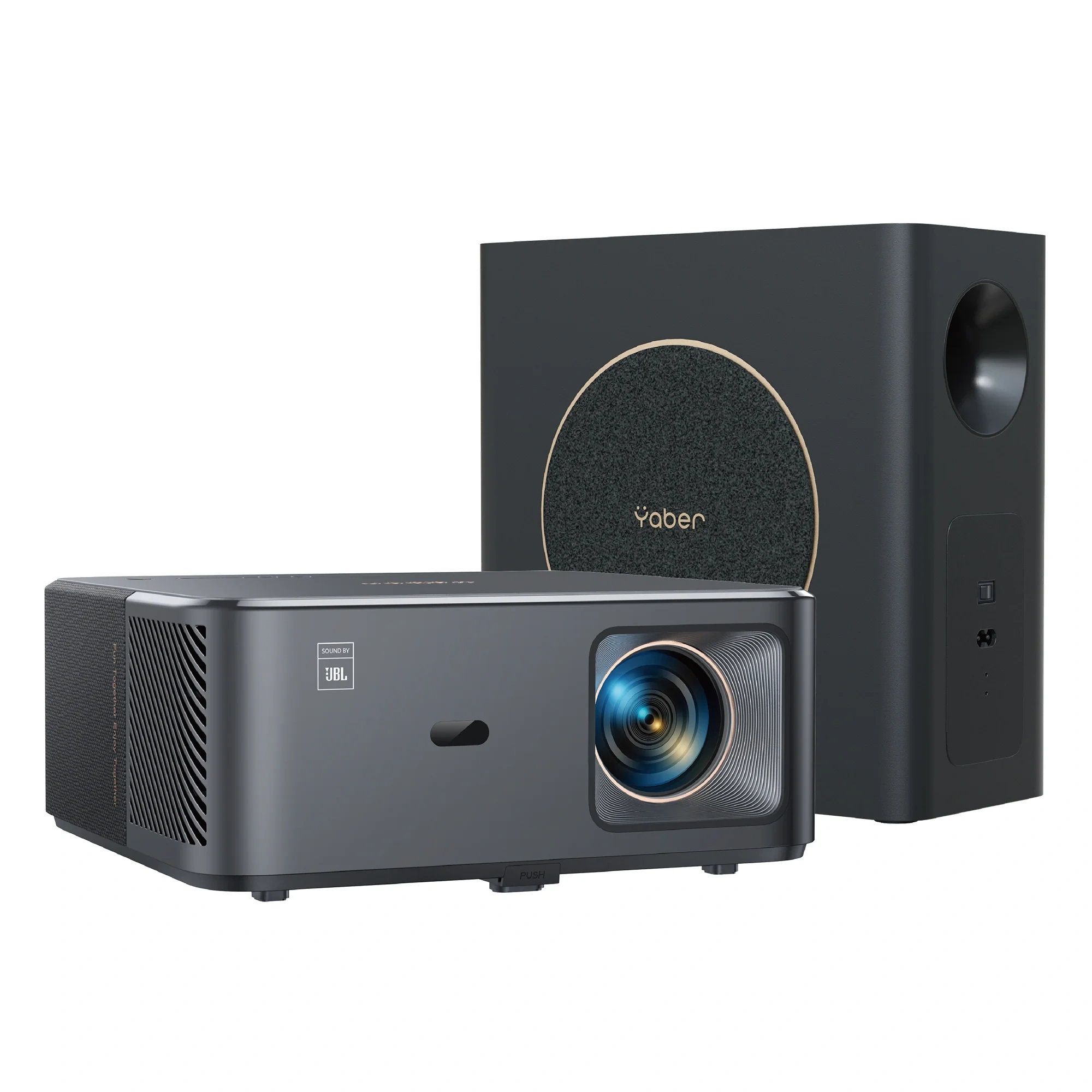

Yaber K2s Pro 1080p · Single-panel LCD | 1080p | Single-panel LCD | 700 +550 | $499.99 +$300 | Compare |
AuKing H10 1080p · Single-panel LCD | 1080p | Single-panel LCD | 800 +650 | $499.99 +$300 | Compare |
