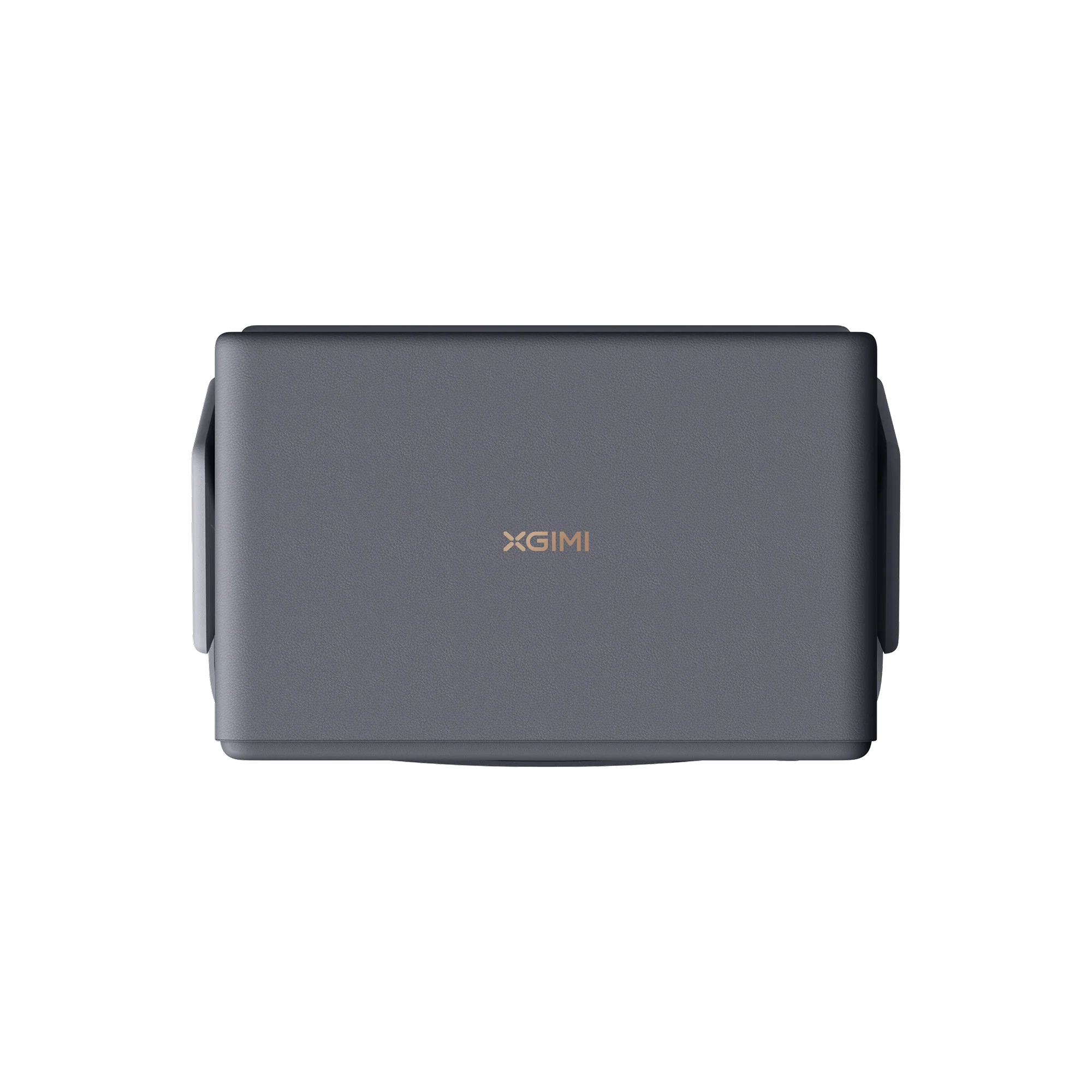

XGIMI HORIZON 30 Max
Release date not announced
| Brand | XGIMI · HORIZON |
| Type | Home cinema |
| Status | Pre-order |
| Resolution | 4K UHD |
| HDR formats | HDR10+, Dolby Vision |
| Imaging technology | DLP |
| Light source | RGB triple laser |
| Brightness | 5,300 lm ISO |
| Native contrast (on/off) | 9,000:1 |
| Throw ratio | 1.2–1.5:1 |
| Input lag | 1080p: 120 Hz 2.2 ms · 240 Hz 1 ms · 4K UHD: 60 Hz 3 ms · 120 Hz 1.9 ms |
A 4K DLP home projector with an RGB triple-laser light source, rated by XGIMI at 5,300 ISO lumens and 9,000:1 native contrast. It has optical zoom, lens shift (V ±130%, H ±50%), a 4K 120 Hz refresh rate, 1 ms rated input lag in game mode, Dolby Vision and HDR10+ support, Google TV and 2 x 12 W Harman/Kardon speakers. It sits between the HORIZON 30 Pro and Ultra Max.
Data sheet
| White light output | 5,300 lm ISO | |
| Imaging technology | DLP | |
| Chip / panel diagonal | 0.47 in | |
| Native aspect | 16:9Derived | |
| Addressable resolution | 4K UHD (3840 × 2160) | |
| Native contrast (on/off) | Up to 9,000:1 | |
| Dynamic contrast | Up to 90,000:1 | |
| Dynamic contrast method | Dynamic iris | |
| Colour gamut | BT.2020 110% area | |
| HDR formats | HDR10+, Dolby Vision | |
| 3D | Yes |
Light source
| Light source | RGB triple laser | |
| Emitter | RGB triple laser |
Optics
| Throw ratio | 1.2–1.5:1100″ · 2.66–3.32 m | |
| Image size | 40–300 in | |
| Zoom | Optical | |
| Zoom ratio | 1.25×Derived | |
| Focus | Motorised | |
| Autofocus | Yes | |
| Vertical lens shift | ±130% | |
| Horizontal lens shift | ±50% | |
| Auto keystone | Yes | |
| Auto setup | Fit to screen, Obstacle avoidance |
Motion & gaming
| Frame interpolation (MEMC) | Yes | |
| Max input refresh | 1080p: 240 Hz · 4K UHD: 120 Hz | |
| Input lag | 1080p: 120 Hz 2.2 ms · 240 Hz 1 ms · 4K UHD: 60 Hz 3 ms · 120 Hz 1.9 ms Game Mode, AK (auto keystone) off | Game Mode, AK (auto keystone) off |
| Gaming features | ALLM, HDMI VRR, FreeSync |
Inputs & control
| HDMI inputs | HDMI (eARC) · HDMI |
Audio
| Speaker power | 24 W | |
| Speakers | 2 | |
| Tuned by | Harman Kardon | |
| Audio formats | Dolby Audio, DTS, DTS Virtual:X | |
| Audio outputs | 3.5 mm, Optical, HDMI eARC | |
| HDMI audio return | eARCDerived |
Physical & installation
| Dimensions (W × D × H) | 298 × 190 × 249 mm | |
| Weight | 5,400 g | |
| Orientations | Table, Ceiling, Rear |
Environment & power
| Operating temperature | 0–40°C | |
| Mains input | 100–240 V · 50/60 Hz | |
| Fan noise | Up to 28 dB(A) 25°C ambient, 1 m distance (footnote 13); mode not stated | 25°C ambient, 1 m distance (footnote 13); mode not stated |
Safety & support
| Warranty | 🇺🇸 US 2 yr |
In the box
| In the box | Power adapter, Remote, Remote batteries, User manual | |
| Remote | Bluetooth |
Similar models
| Model | Resolution | Tech | Lumens | Price | |
|---|---|---|---|---|---|
XGIMI TITAN 4K UHD · DLP | 4K UHD | DLP | 5,000 −300 | $3,299 +$300 | Compare |
Optoma HCPro-4400 4K UHD · DLP | 4K UHD | DLP | 5,000 −300 | — | Compare |
Optoma HCPro-5400 4K UHD · DLP | 4K UHD | DLP | 5,000 −300 | — | Compare |
XGIMI HORIZON 20 Max 4K UHD · DLP | 4K UHD | DLP | 5,700 +400 | $2,599 −$400 | Compare |

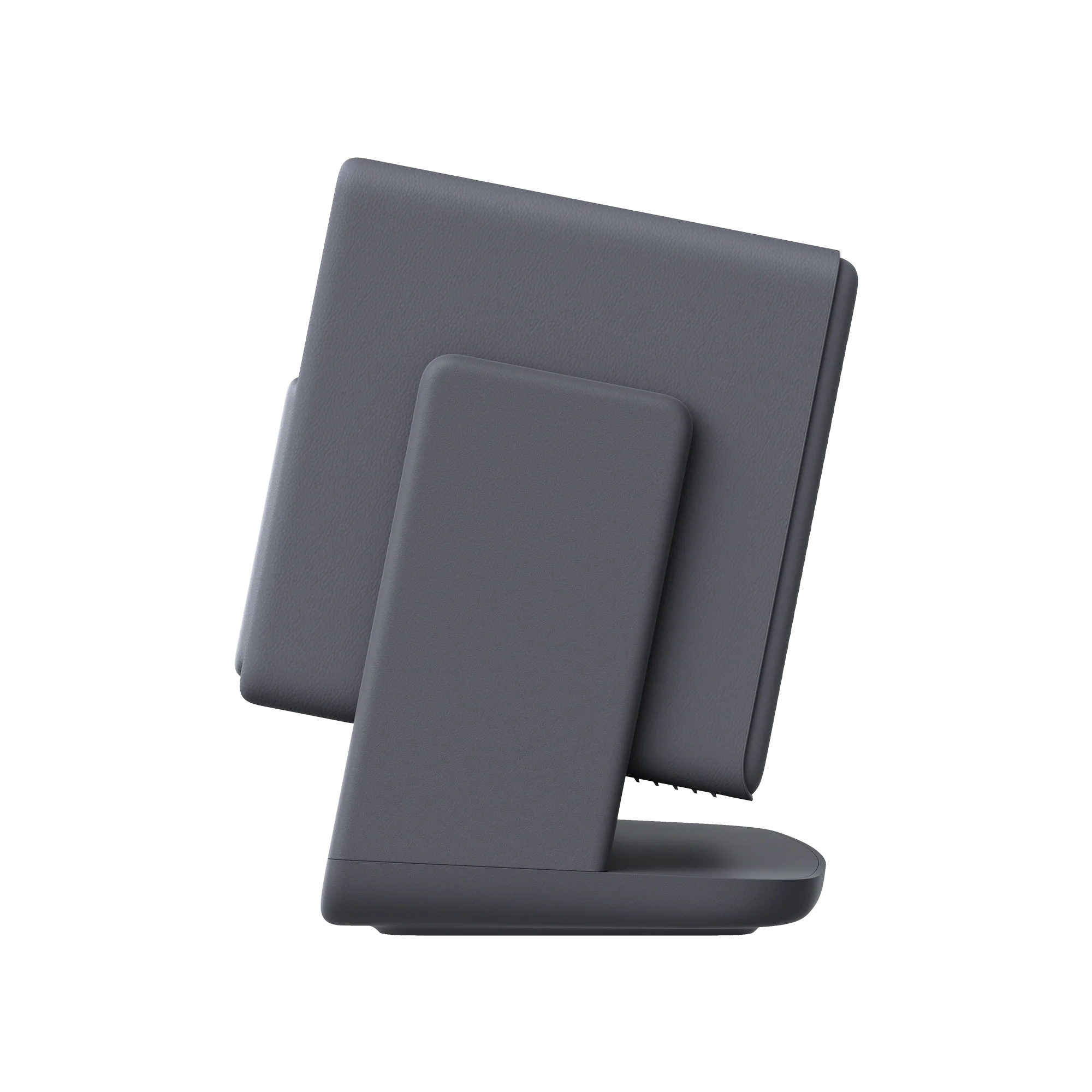

XGIMI HORIZON 30 Pro 4K UHD · DLP | 4K UHD | DLP | 4,800 −500 | $2,499 −$500 | Compare |

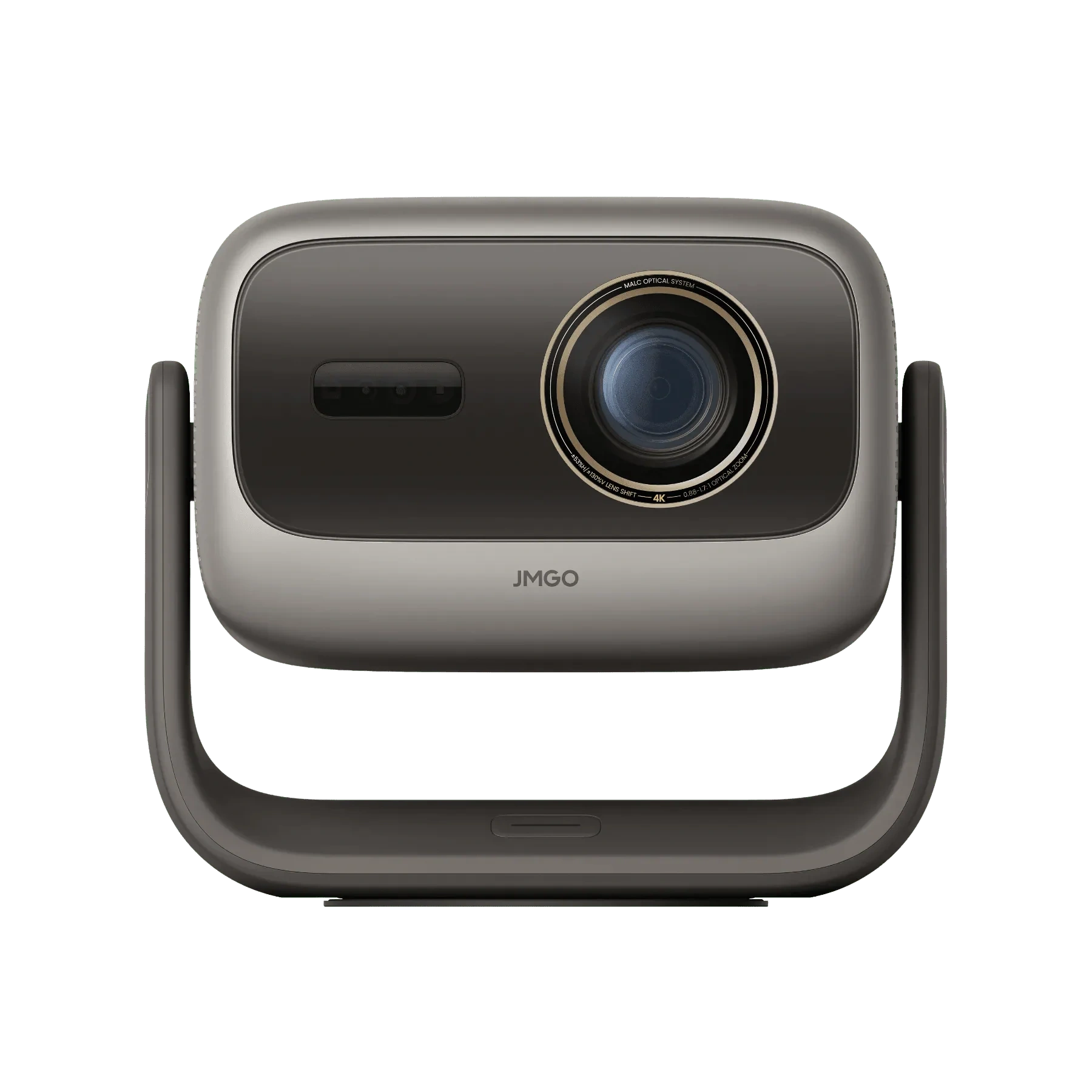

JMGO N3 Ultimate 4K UHD · DLP | 4K UHD | DLP | 5,800 +500 | $2,399 −$600 | Compare |
